Patrick’s 72 C-10 LS2 Sleeper

For this project we are transforming a family heirloom 72′ C-10 Pickup, purchased new within the family, into a reliable and fun daily driver for 16 year old Patrick. Patrick has also decided to get dirty lend a hand with his pickup transformation wherever possible. KMC will be working diligently along with Patrick in an attempt to both teach and of course to give him back a very cool ride. The plans entail an 06′ GTO ls1 mated to a 4l65E auto trans up front complimented with an Eaton posi and new 3:73 gears Outback. A fully stainless exhaust with QTP electric cutouts, cross flow radiator with dual electric fans, and a Dakota Digital electric gauge cluster with analog style gauges. The Pickup will also get a trick new Pump-in-tank fuel cell transplanted below the bed freeing up cabin space and transferring weight over the rear tires; with that new positraction unit trust us he will need it! In the end this will be one cool cruiser with an even cooler story behind it.

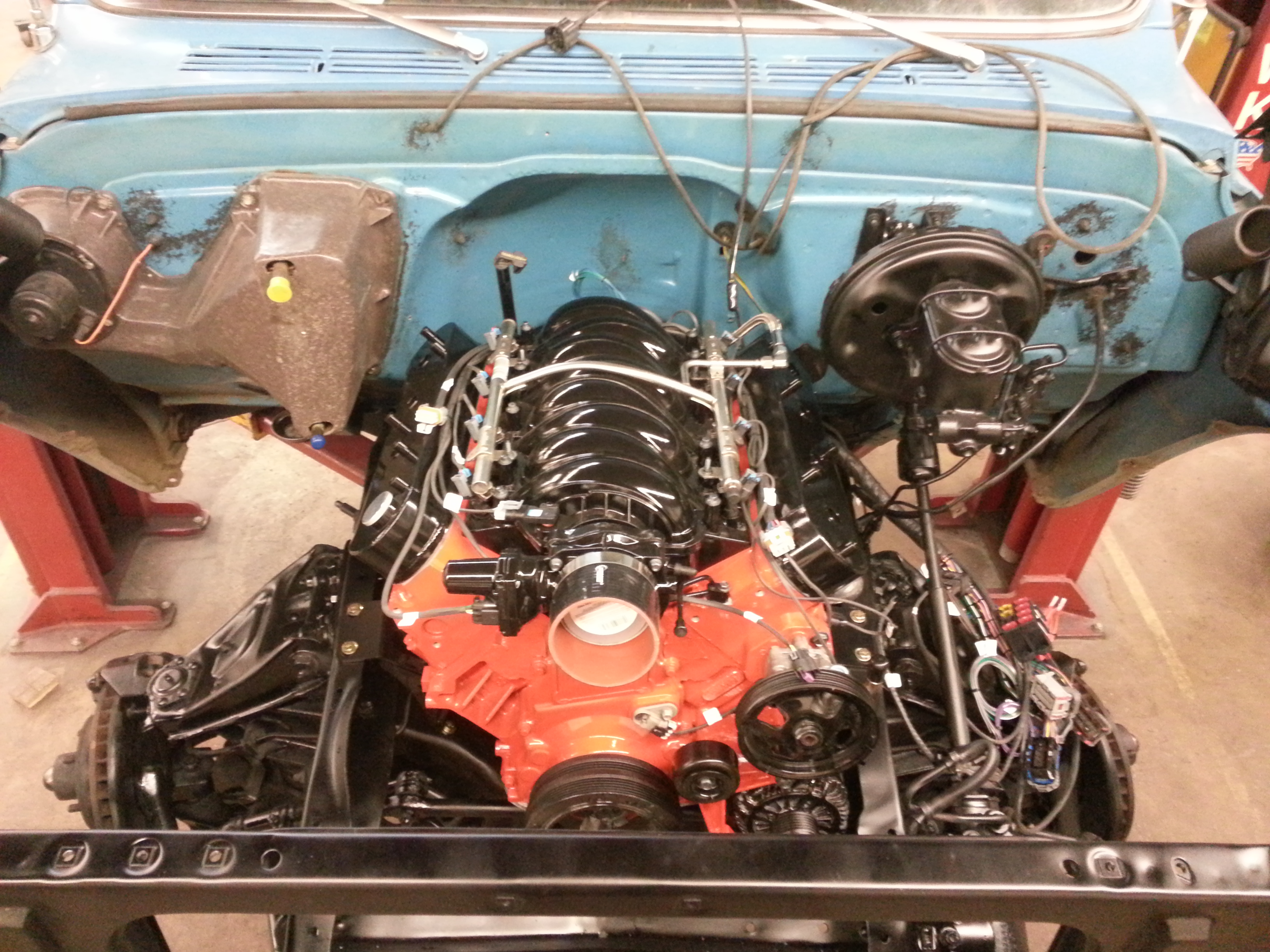

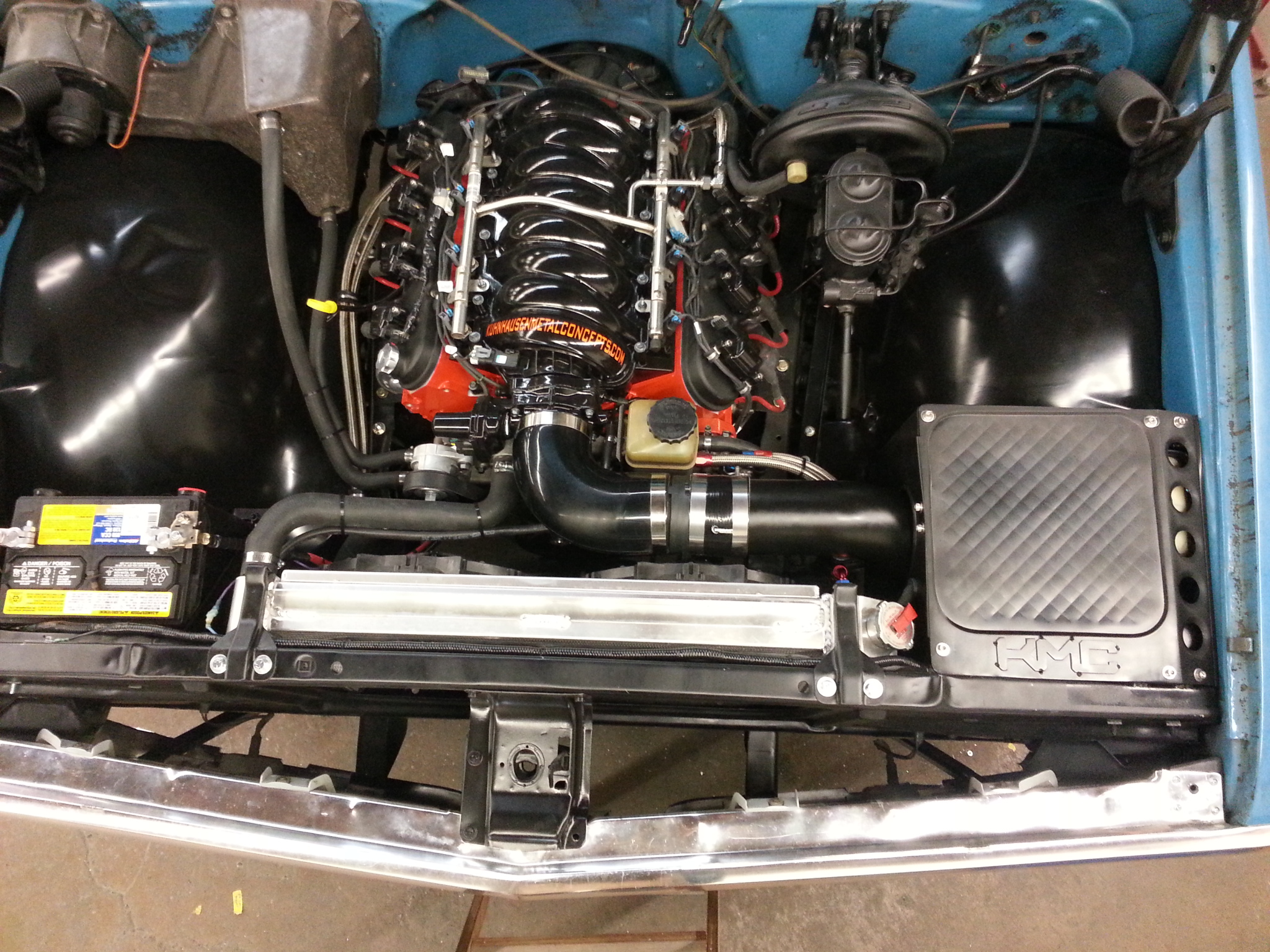

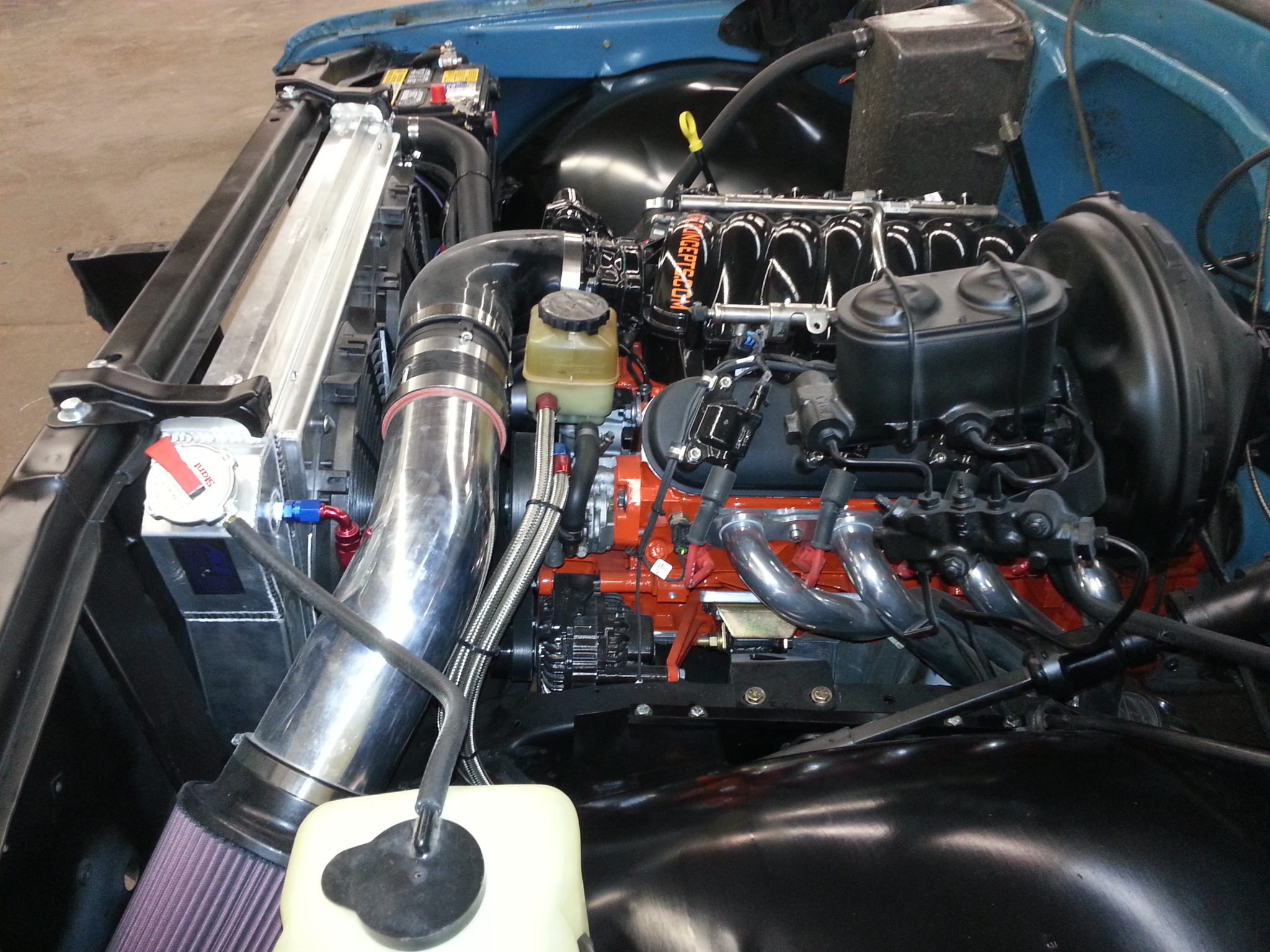

: Done minus some firwall wiring

: One bad ass stainless exhaust please

: Loving the QTP cutouts

: One off custom airbox

: Having some fun assembling the motor

: Custom diff cover mods

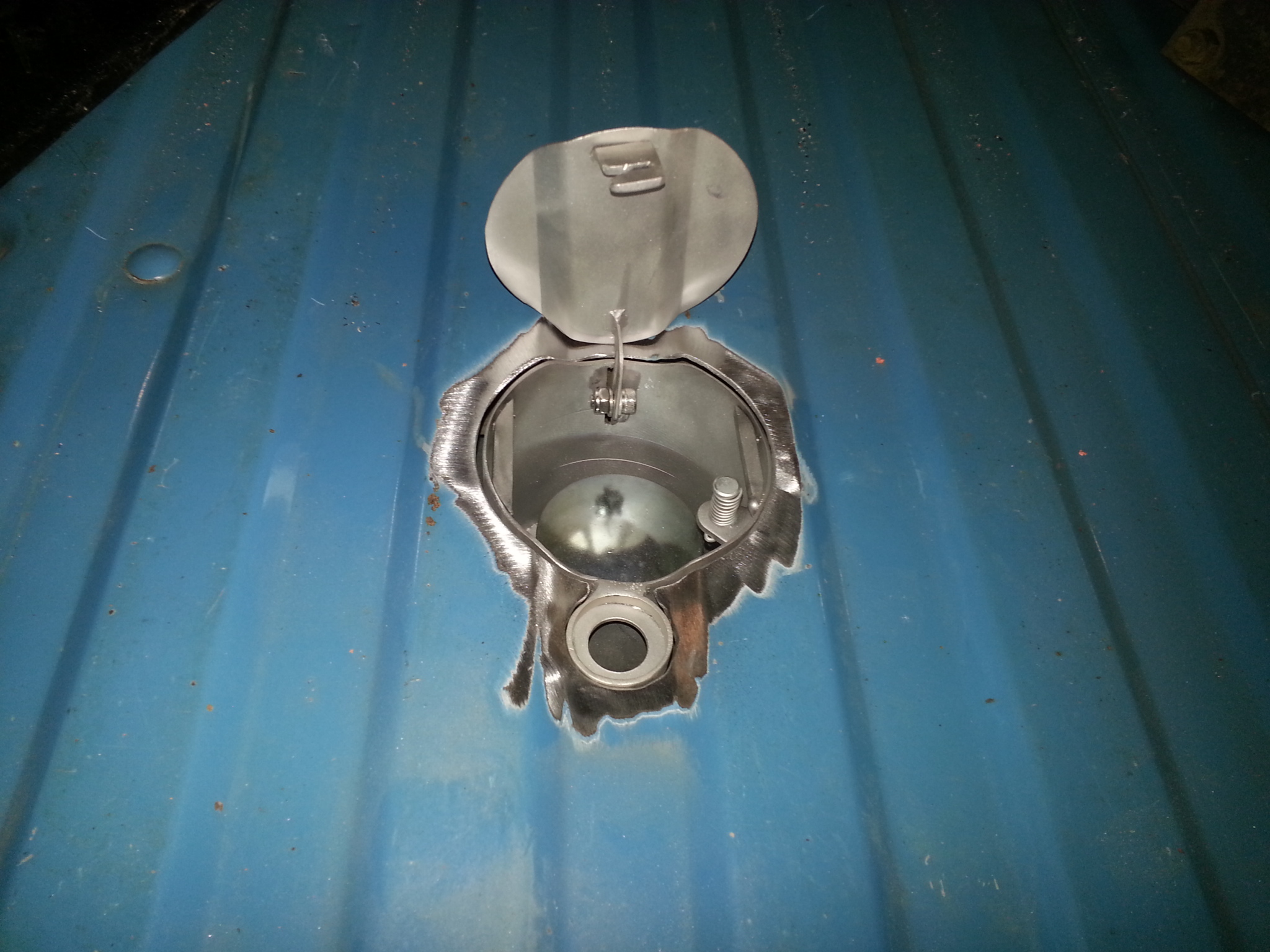

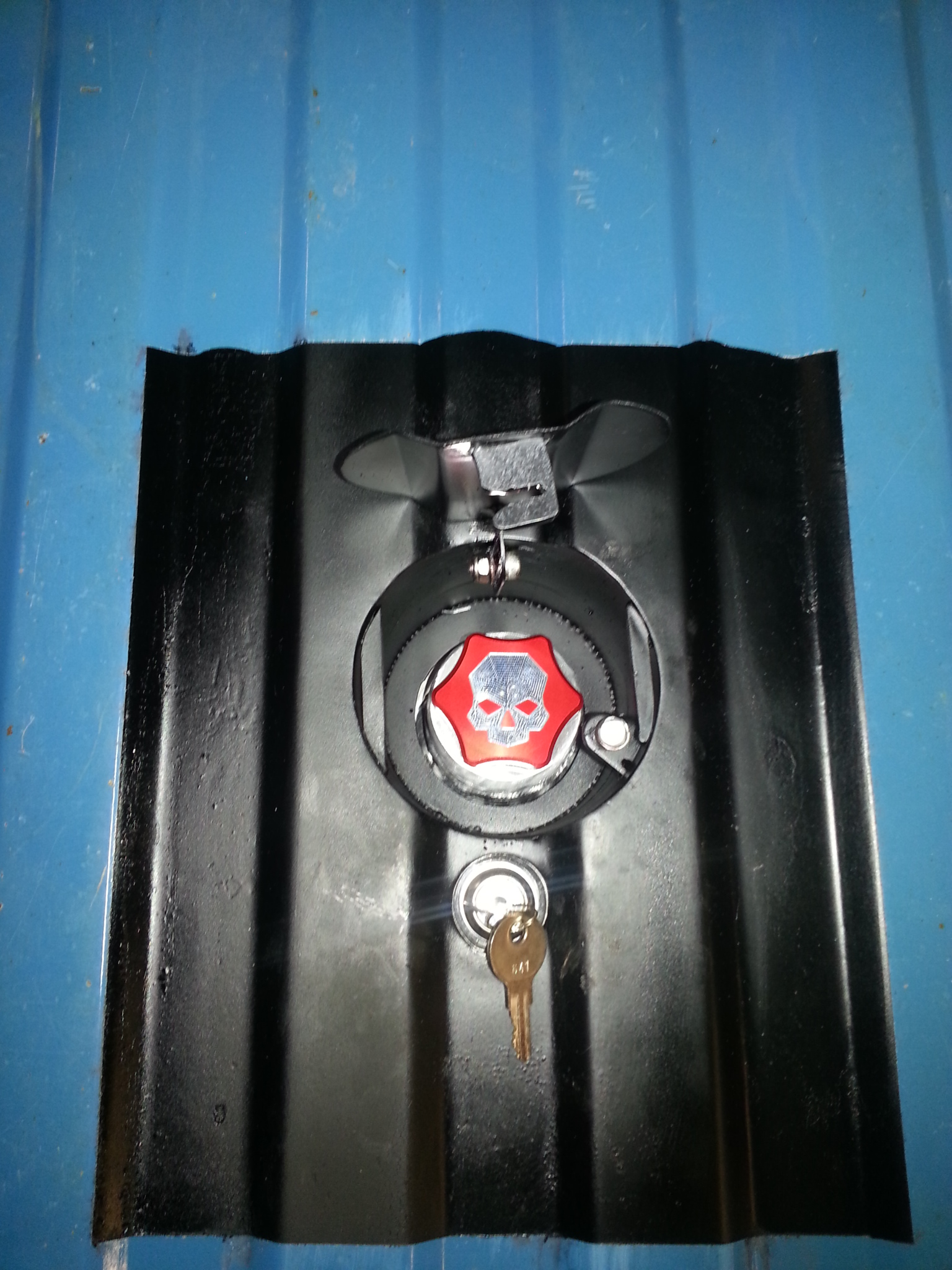

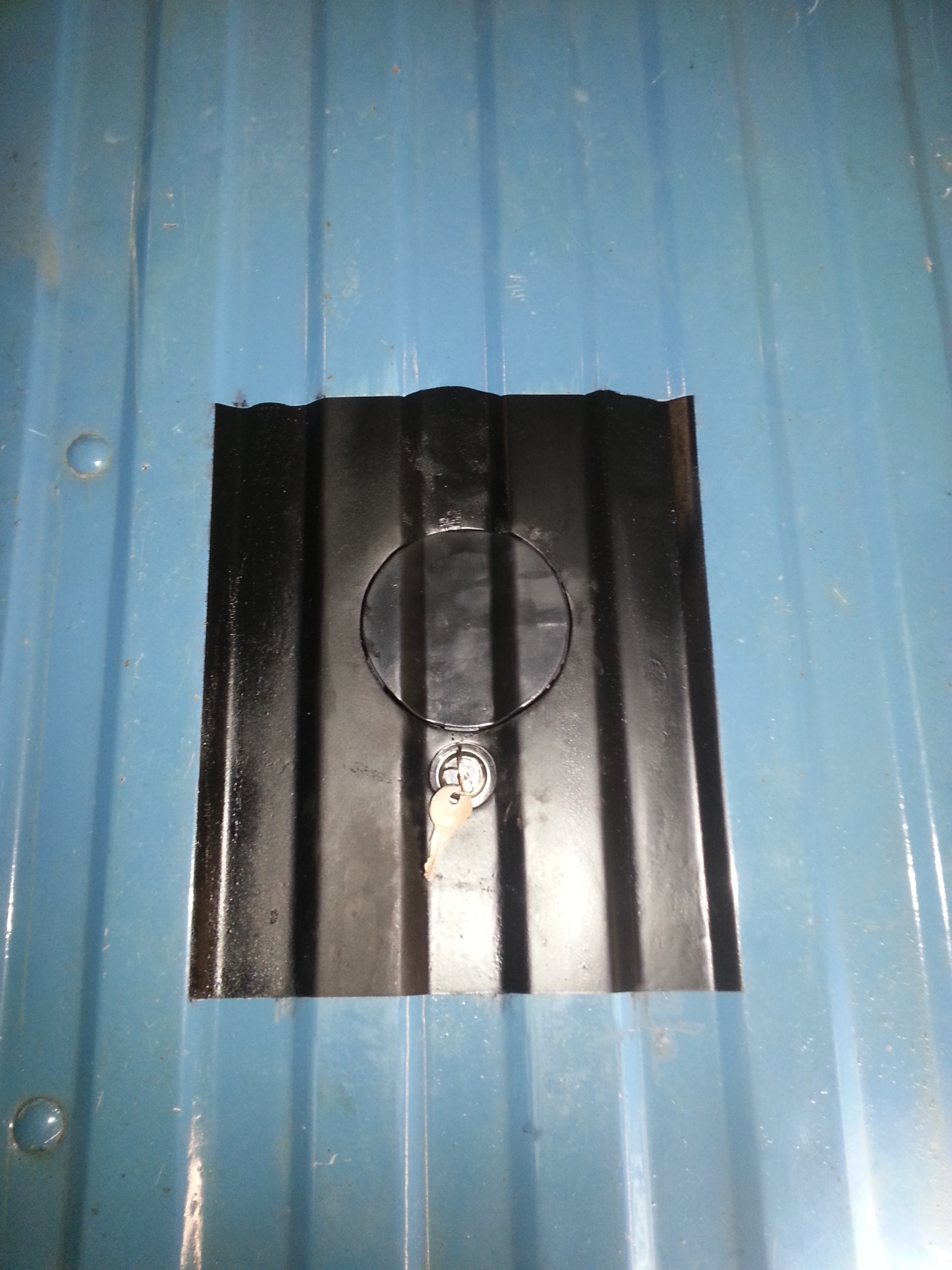

: the in bed fuel fill with lots of flair

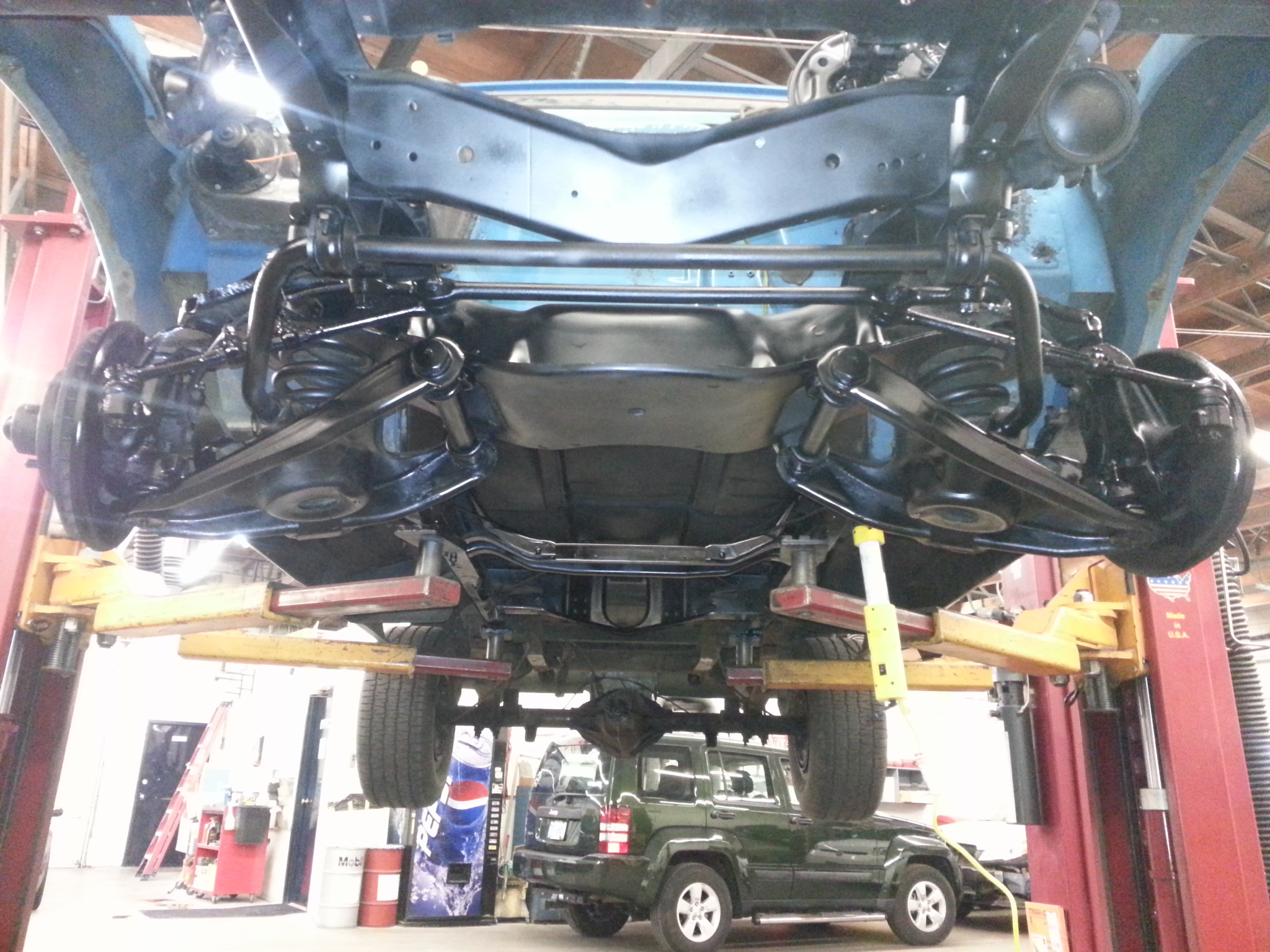

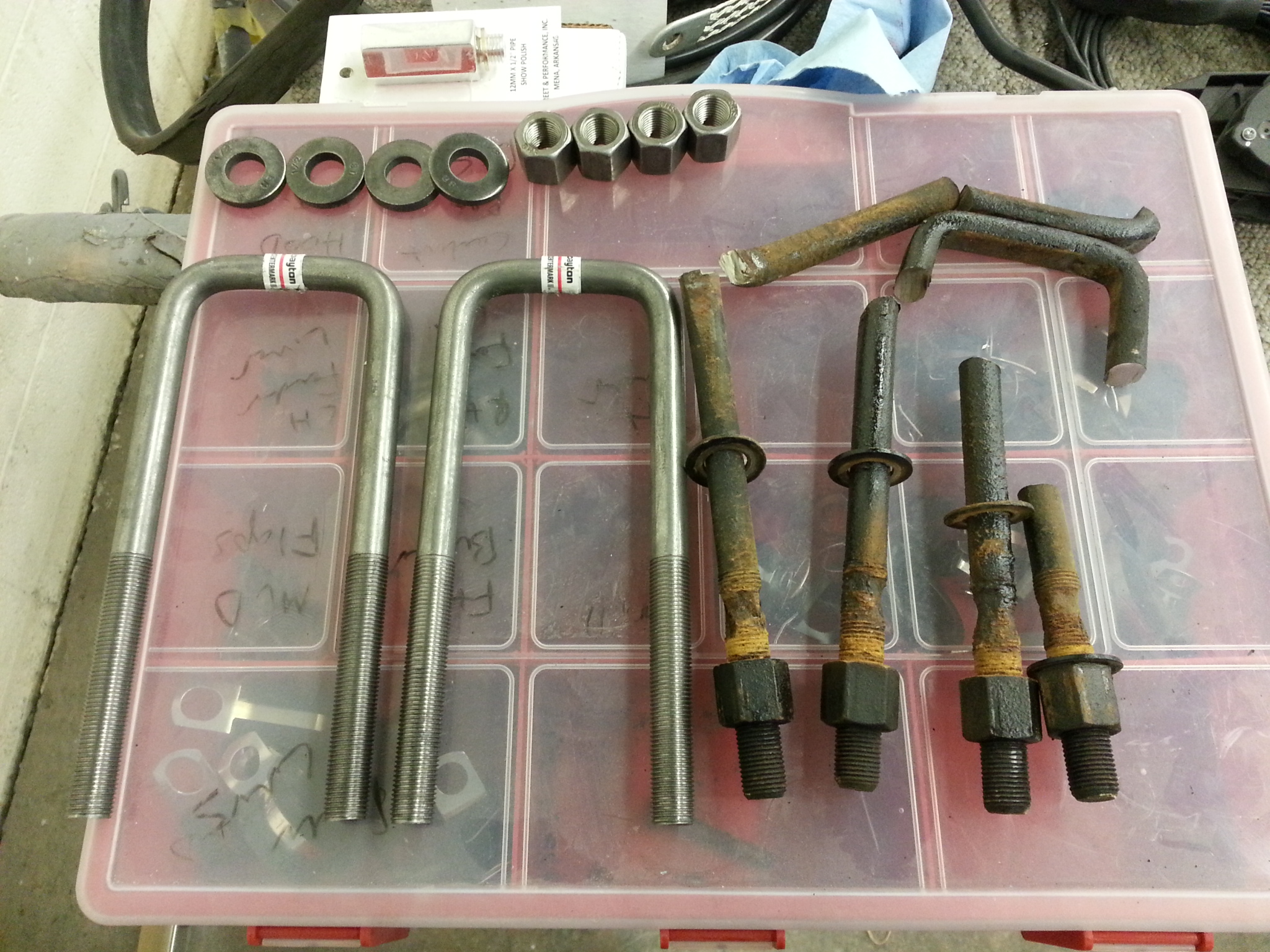

: beefing up the rear suspension to handle the new power increase and positraction

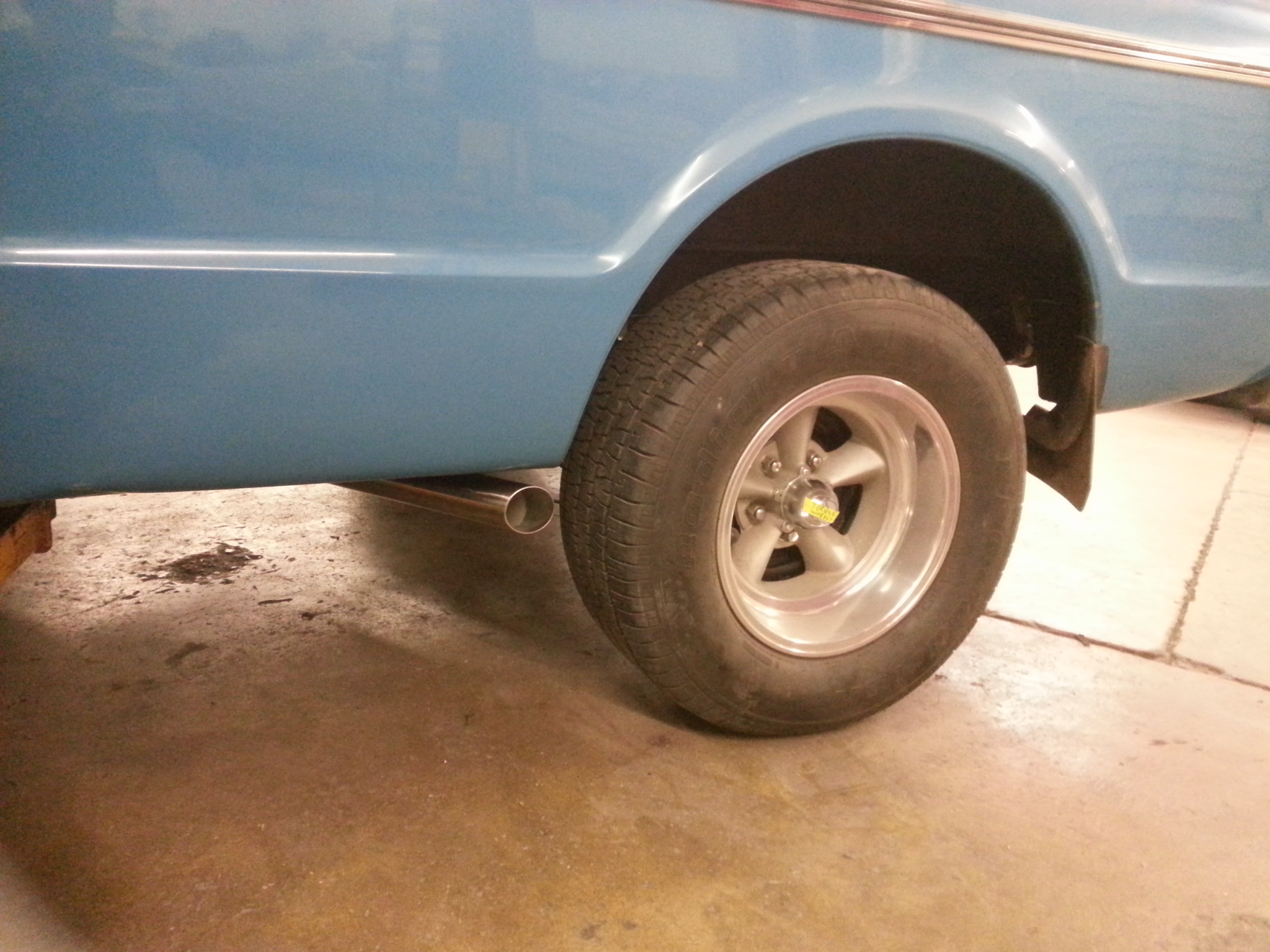

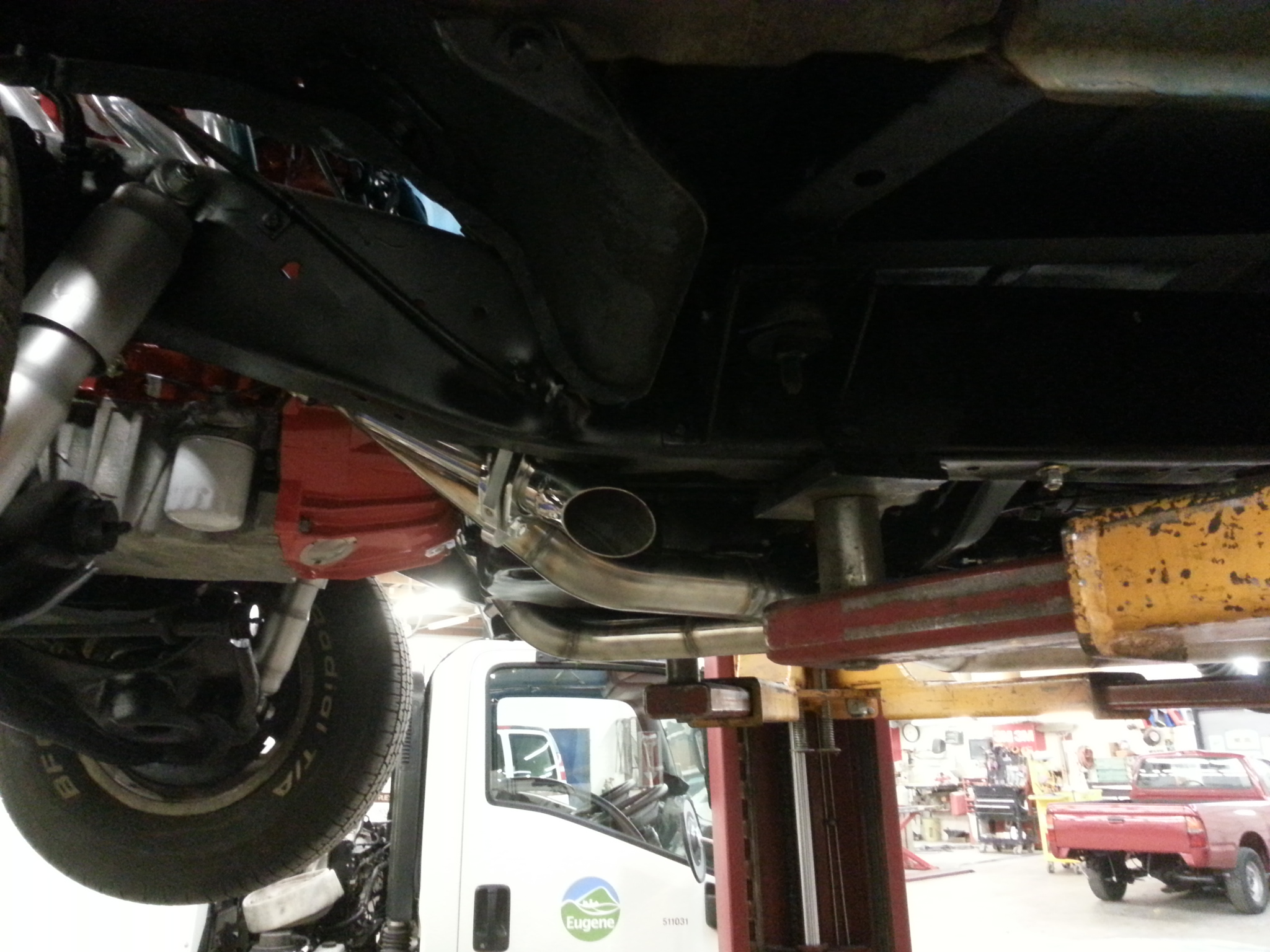

: the cutouts dump behind the rear tire

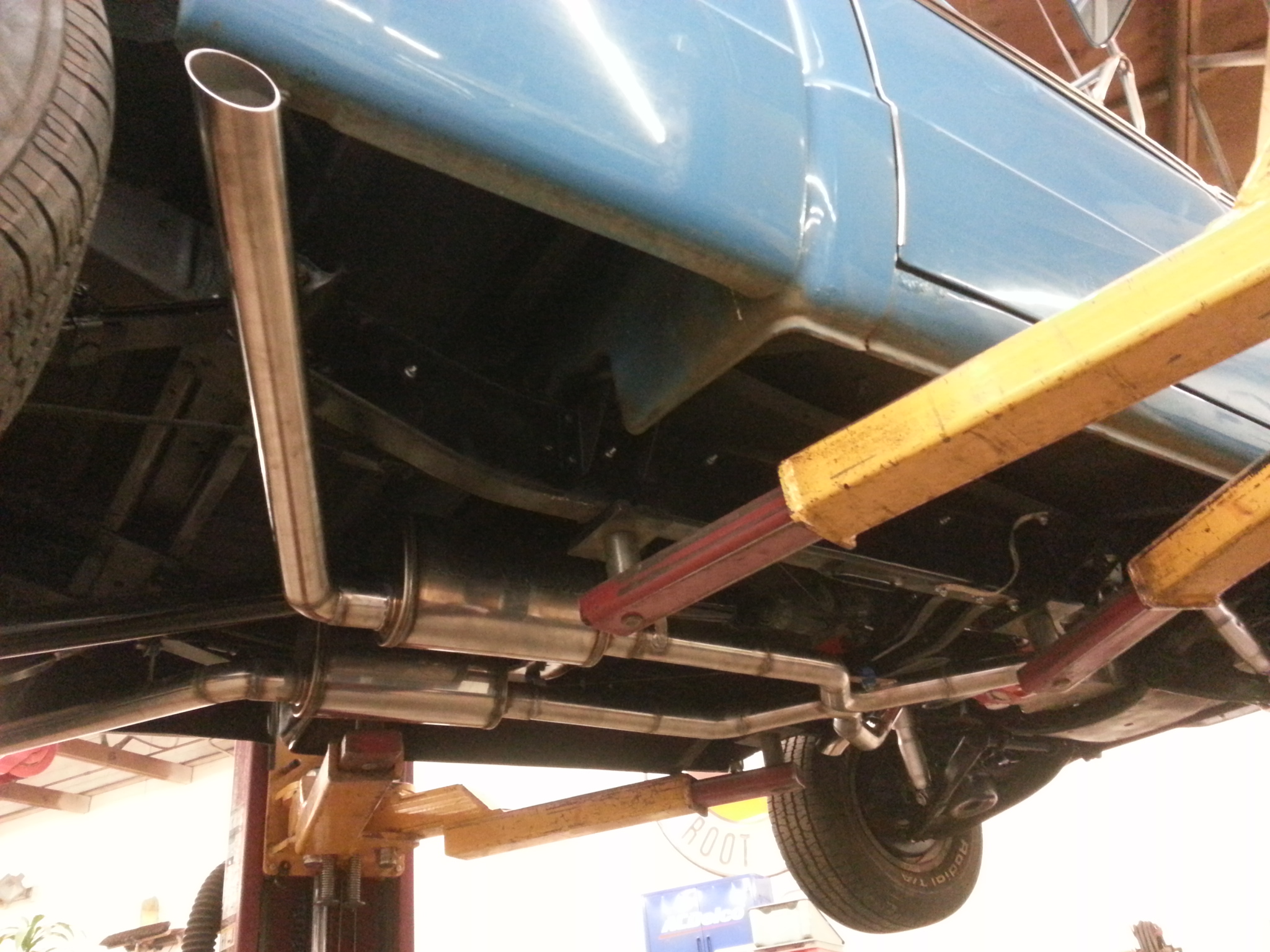

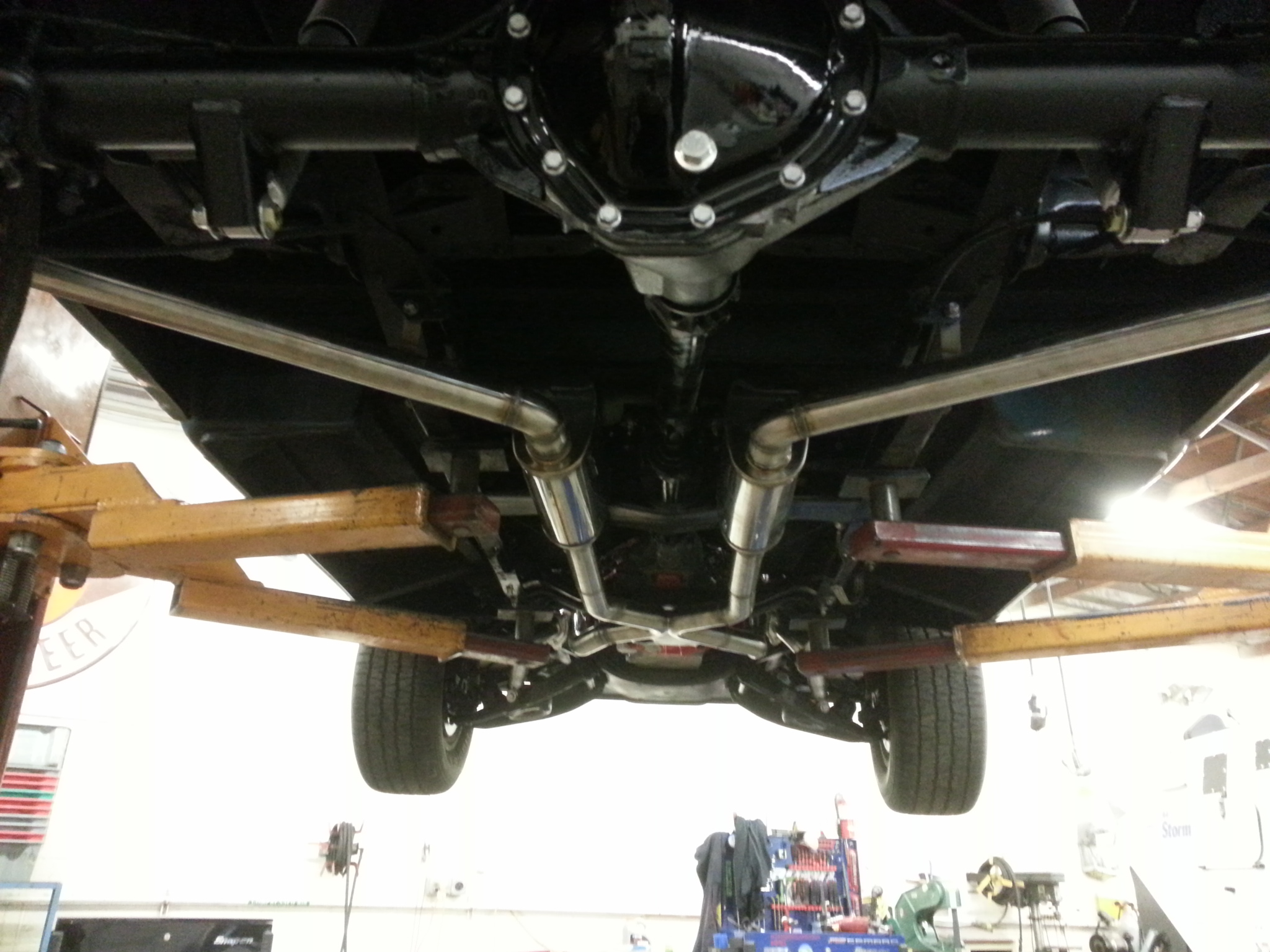

: the system from the rear with magnaflow mufflers

: nascar inspired slash cuts in front of the rear tires

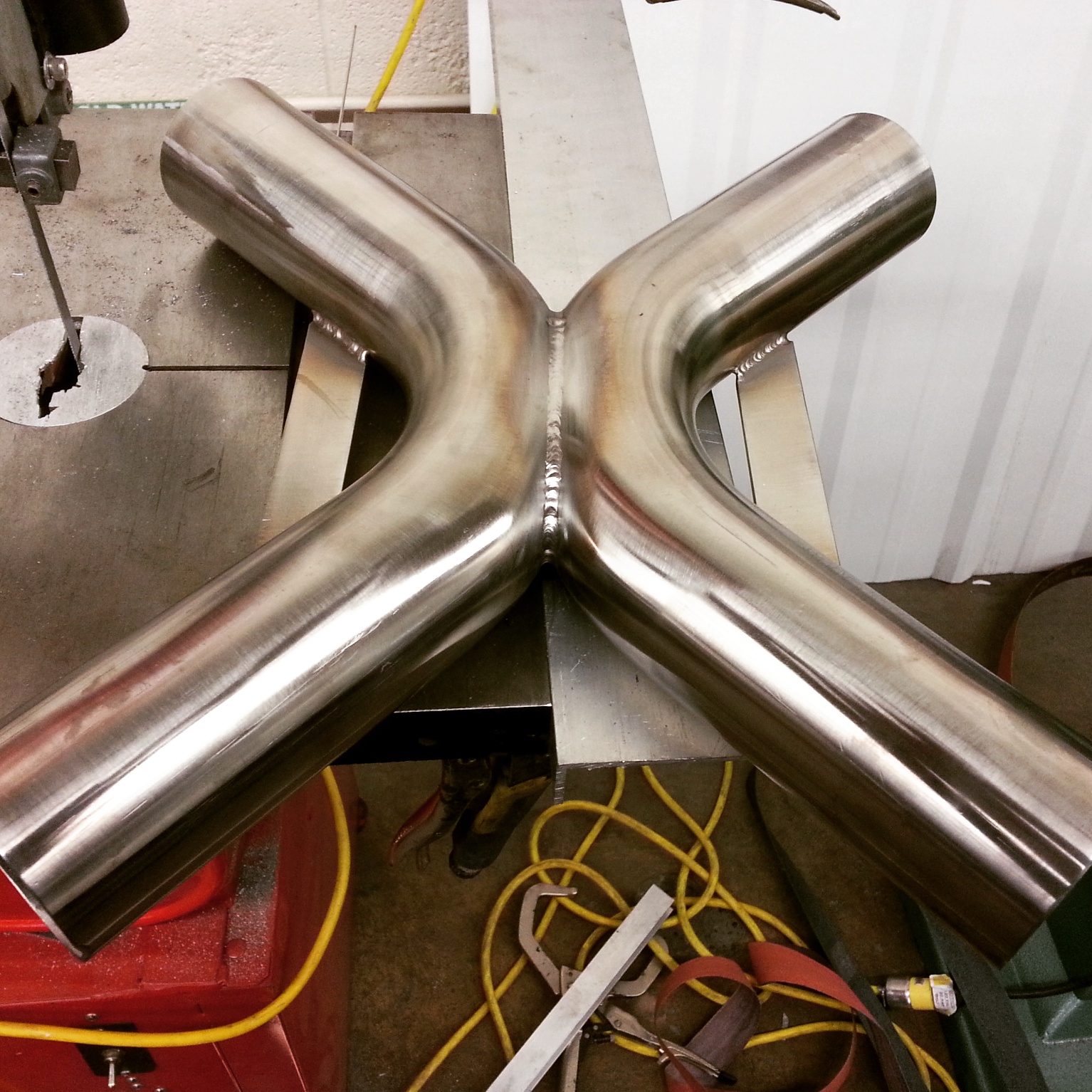

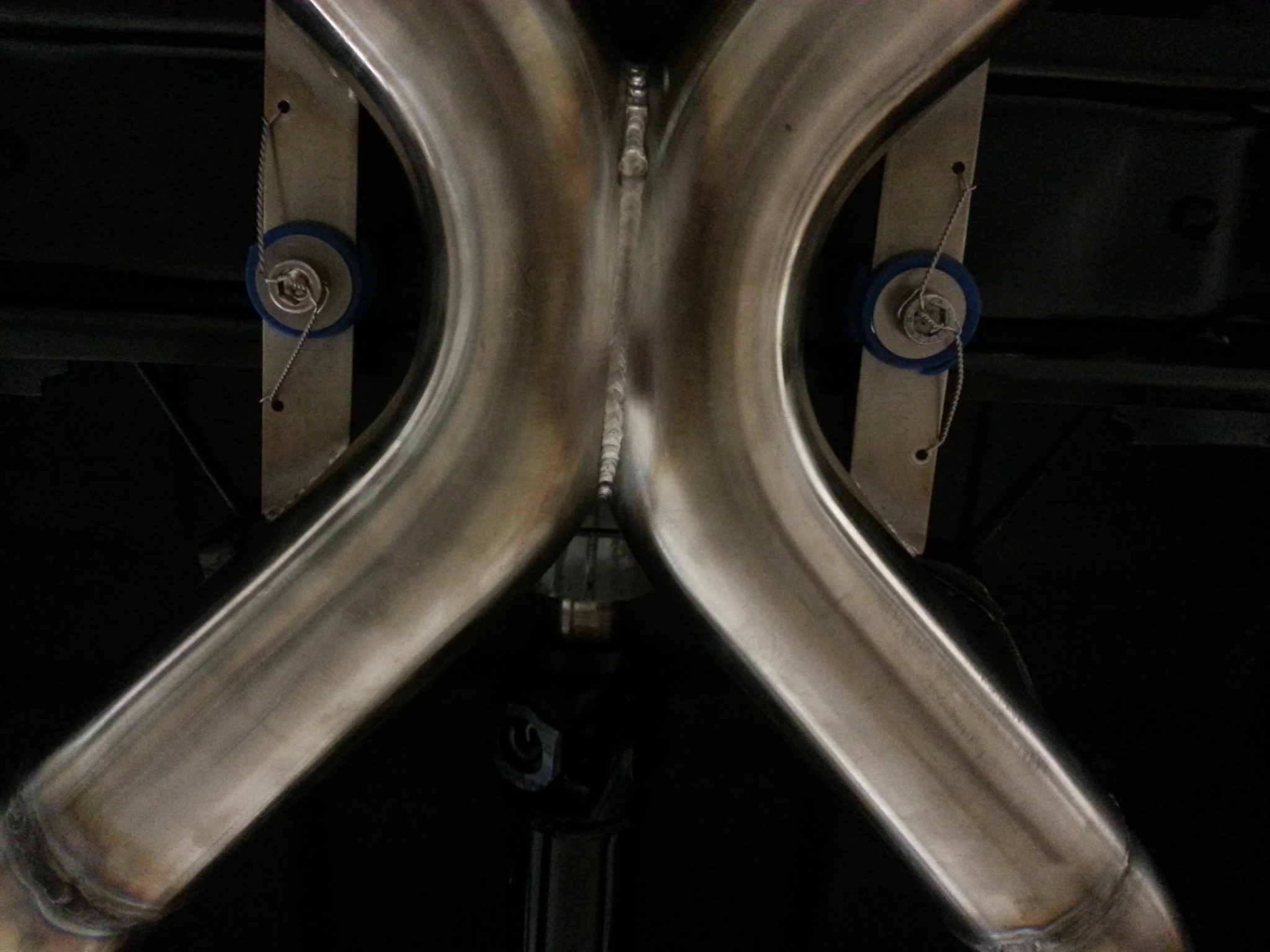

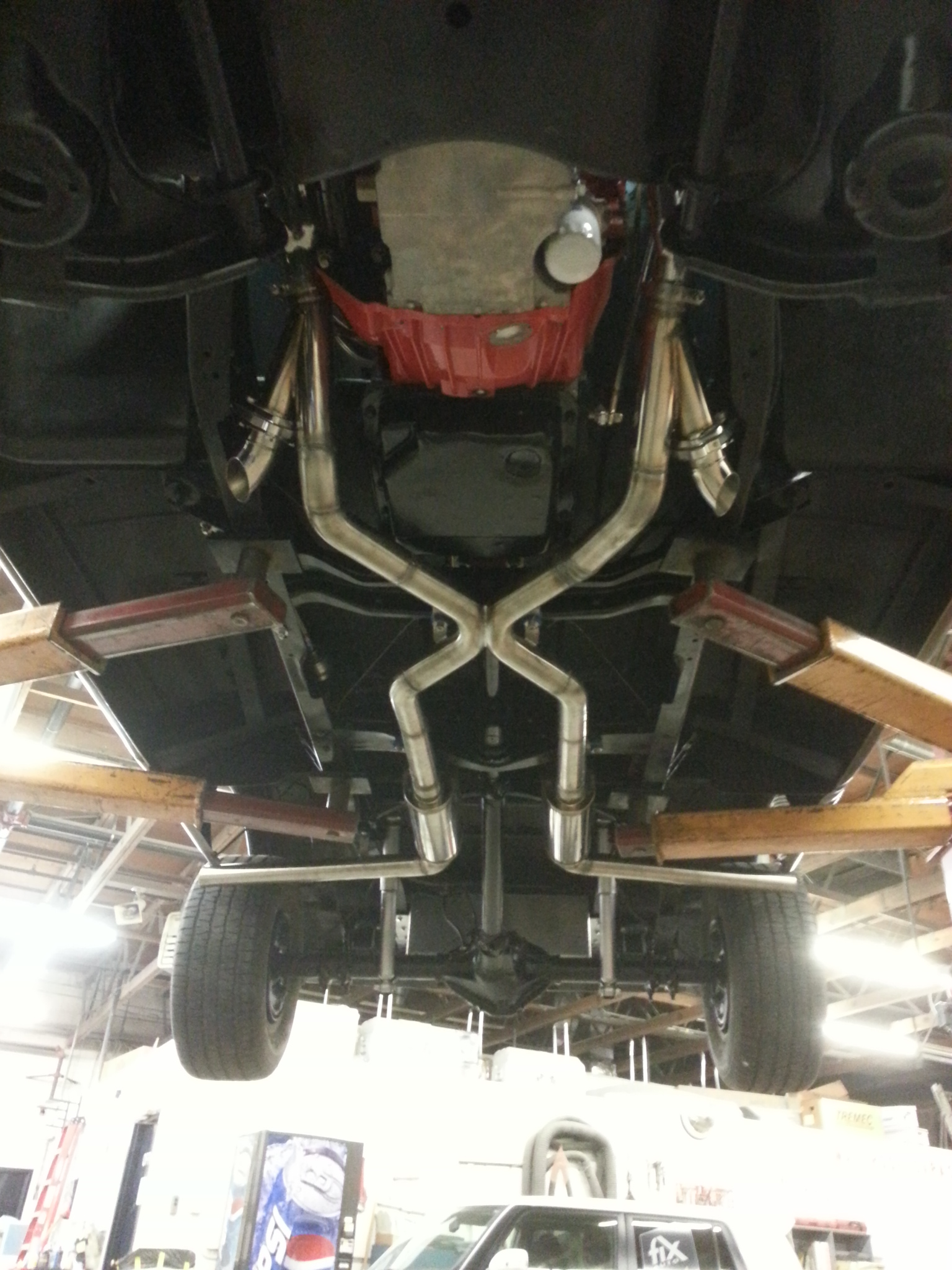

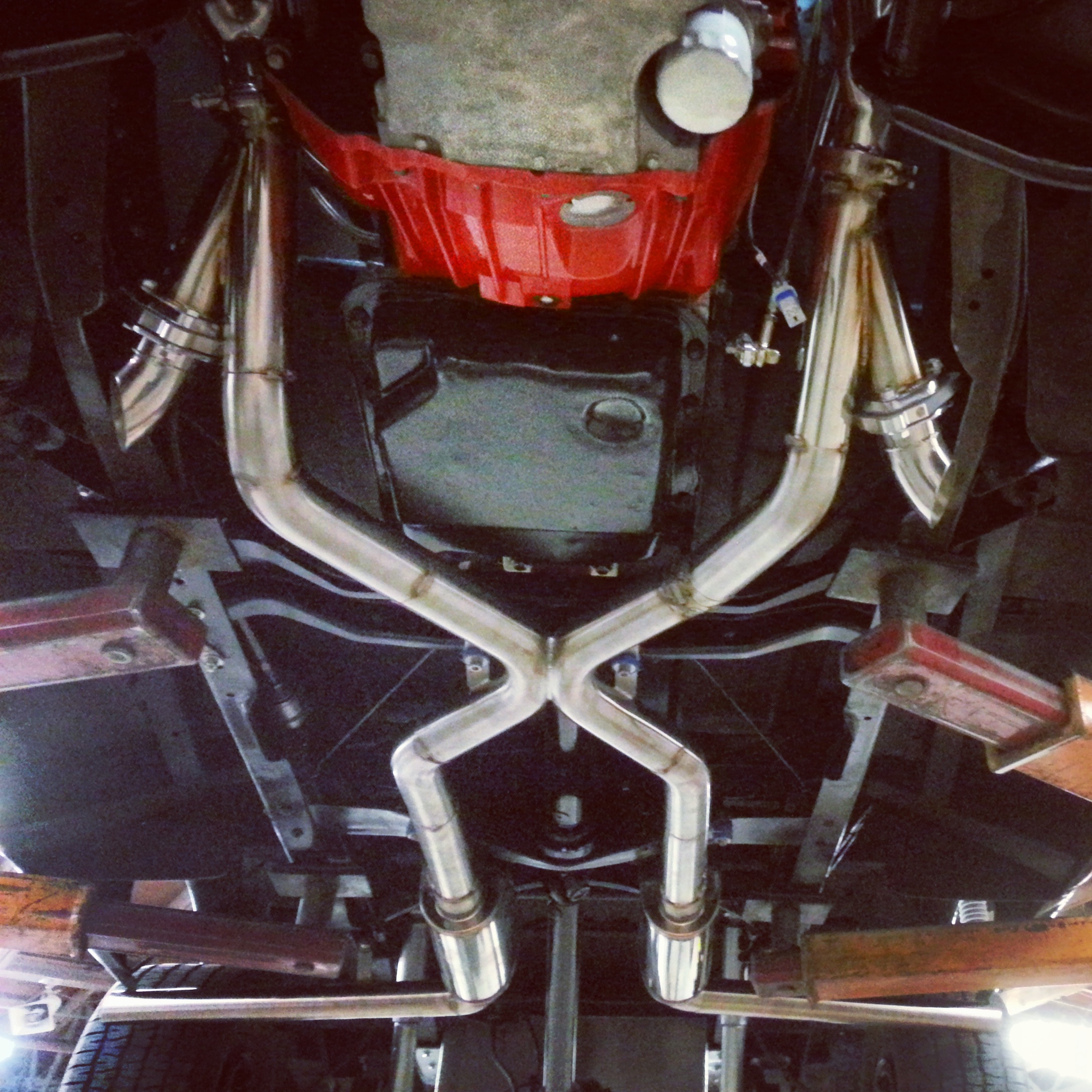

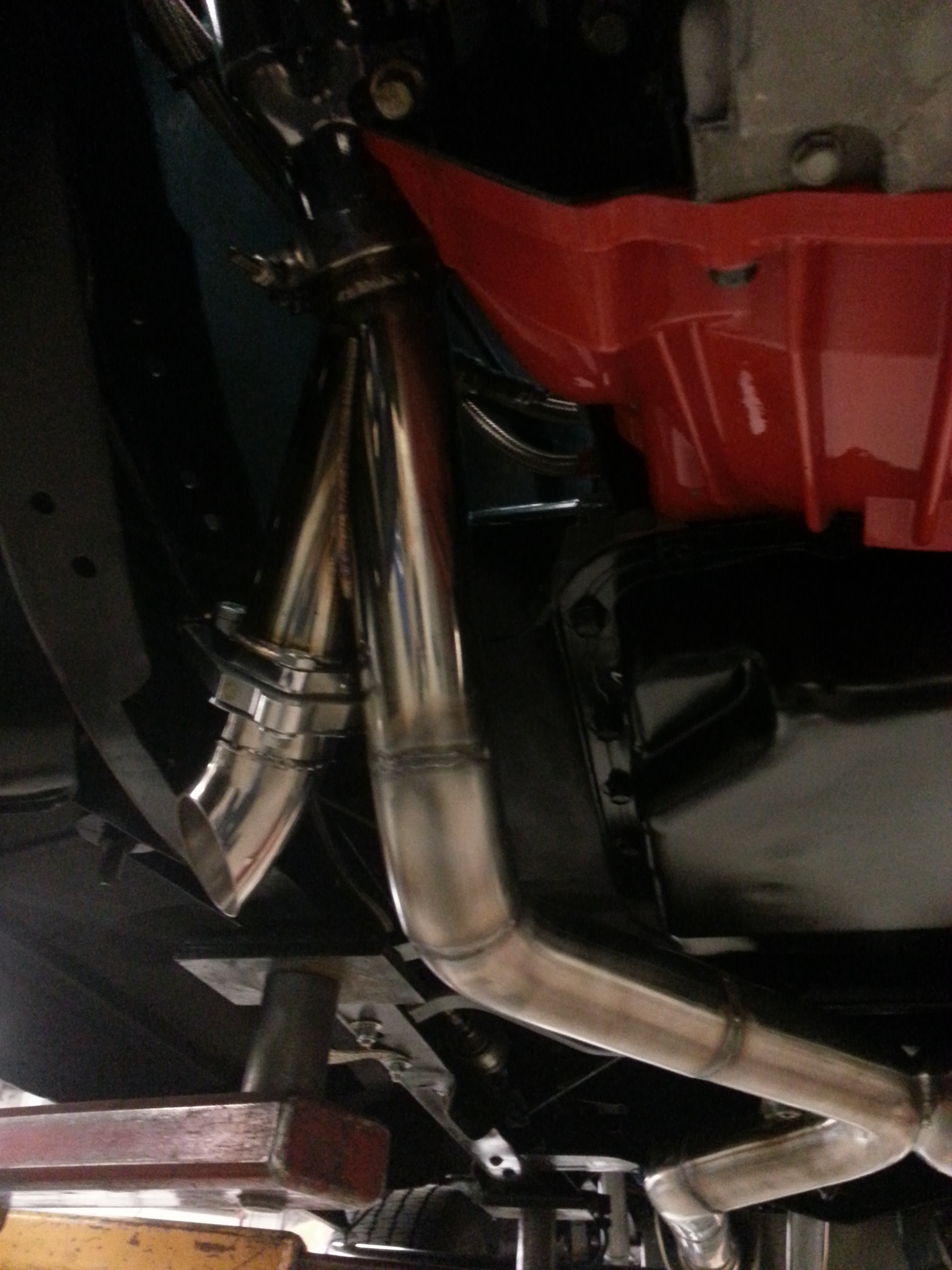

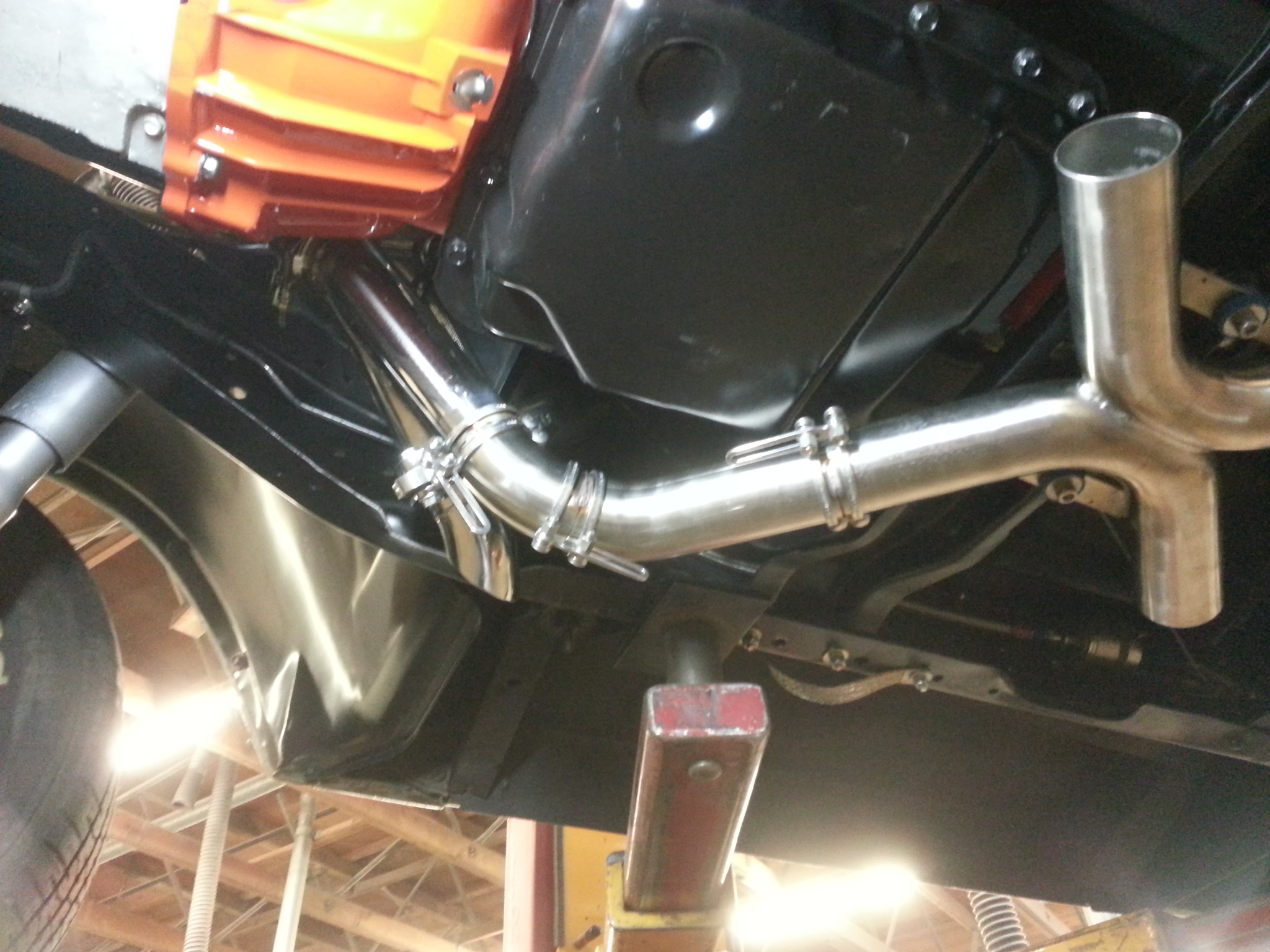

: X-pipe made inhouse

: pretty stainless work

: she dumps

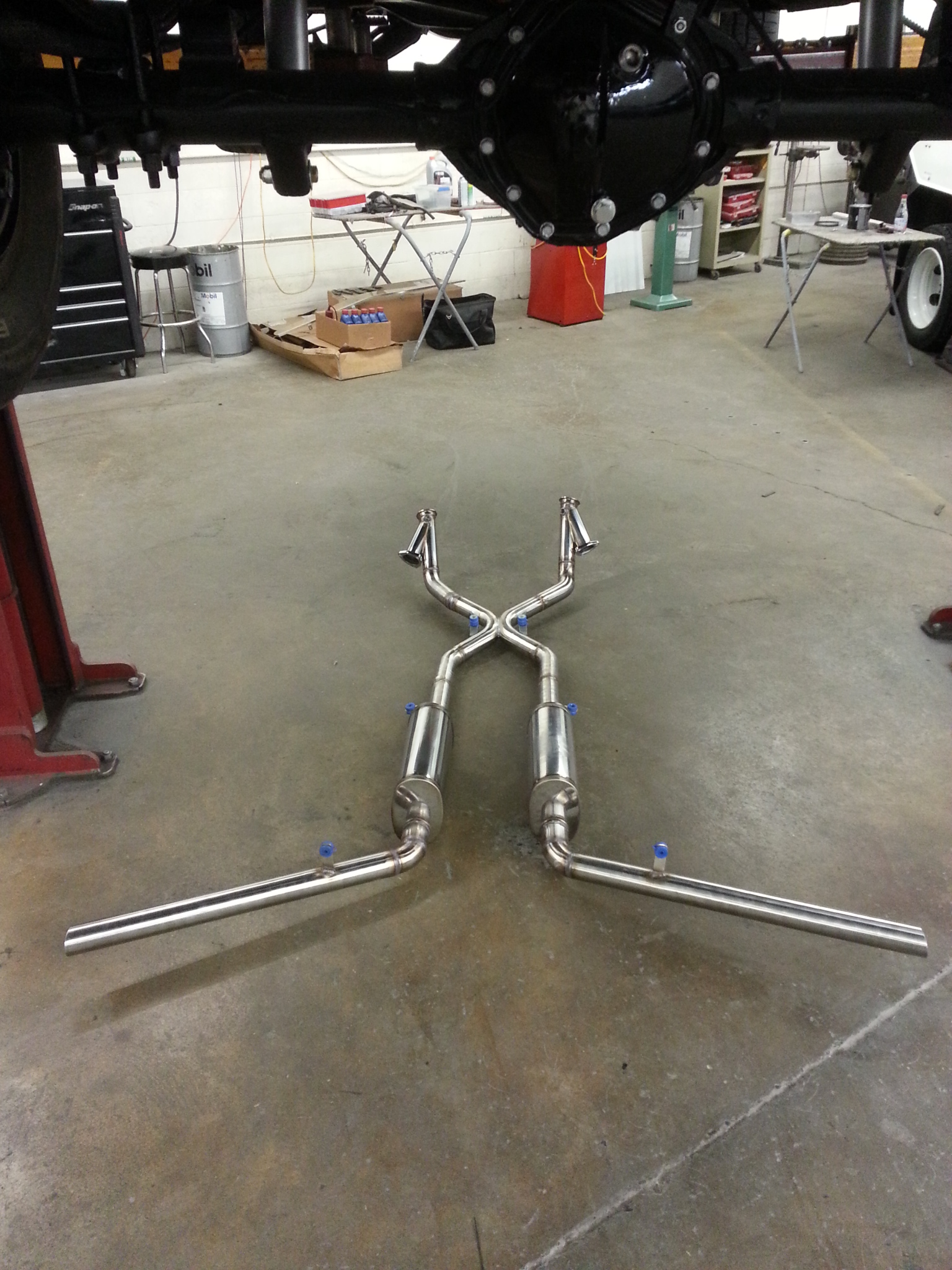

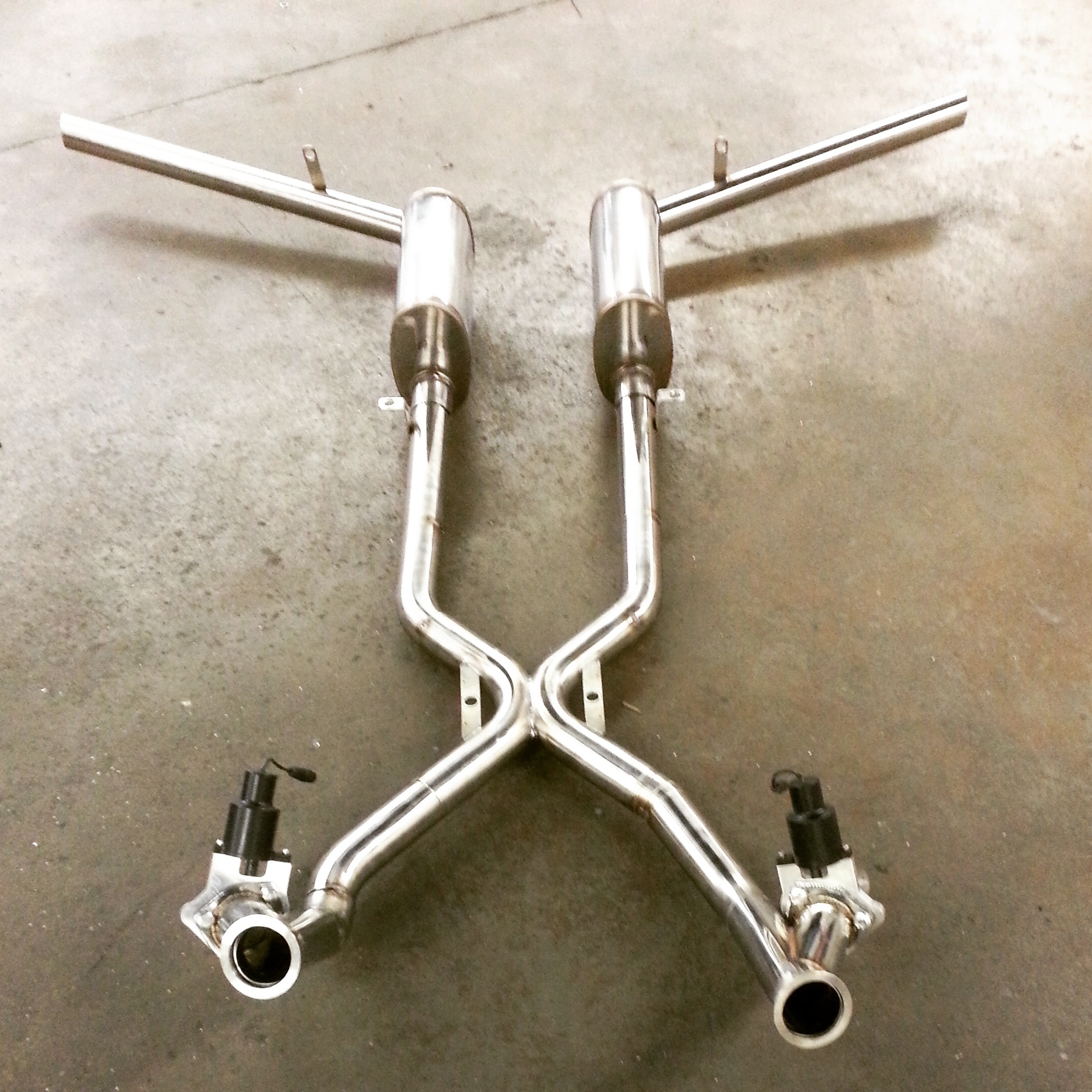

: ready for installation

: attitude as per the customer’s request

: very happy with this exhaust

: using iceengineworks tack clamps for perfect weld joints

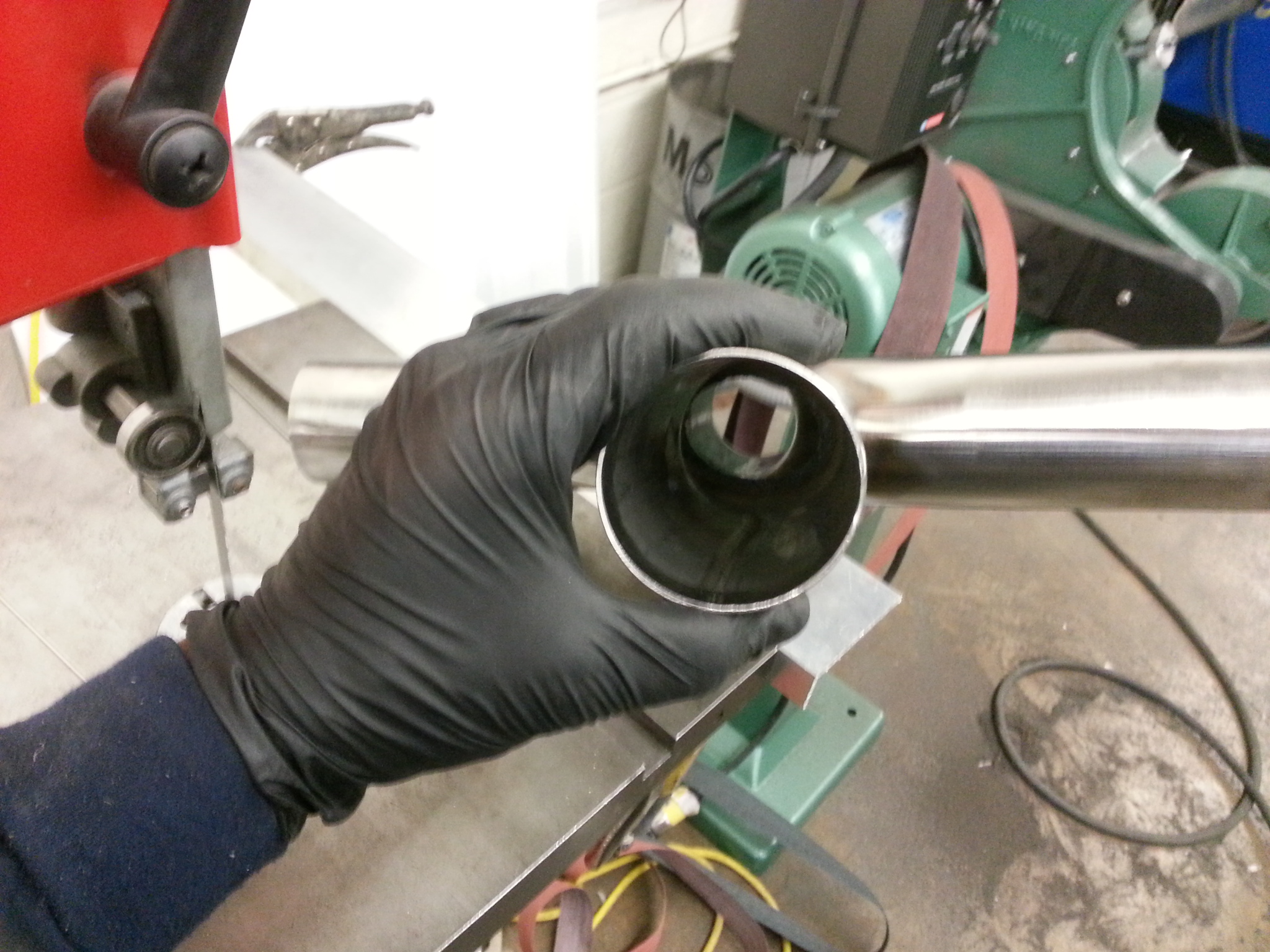

: straight through

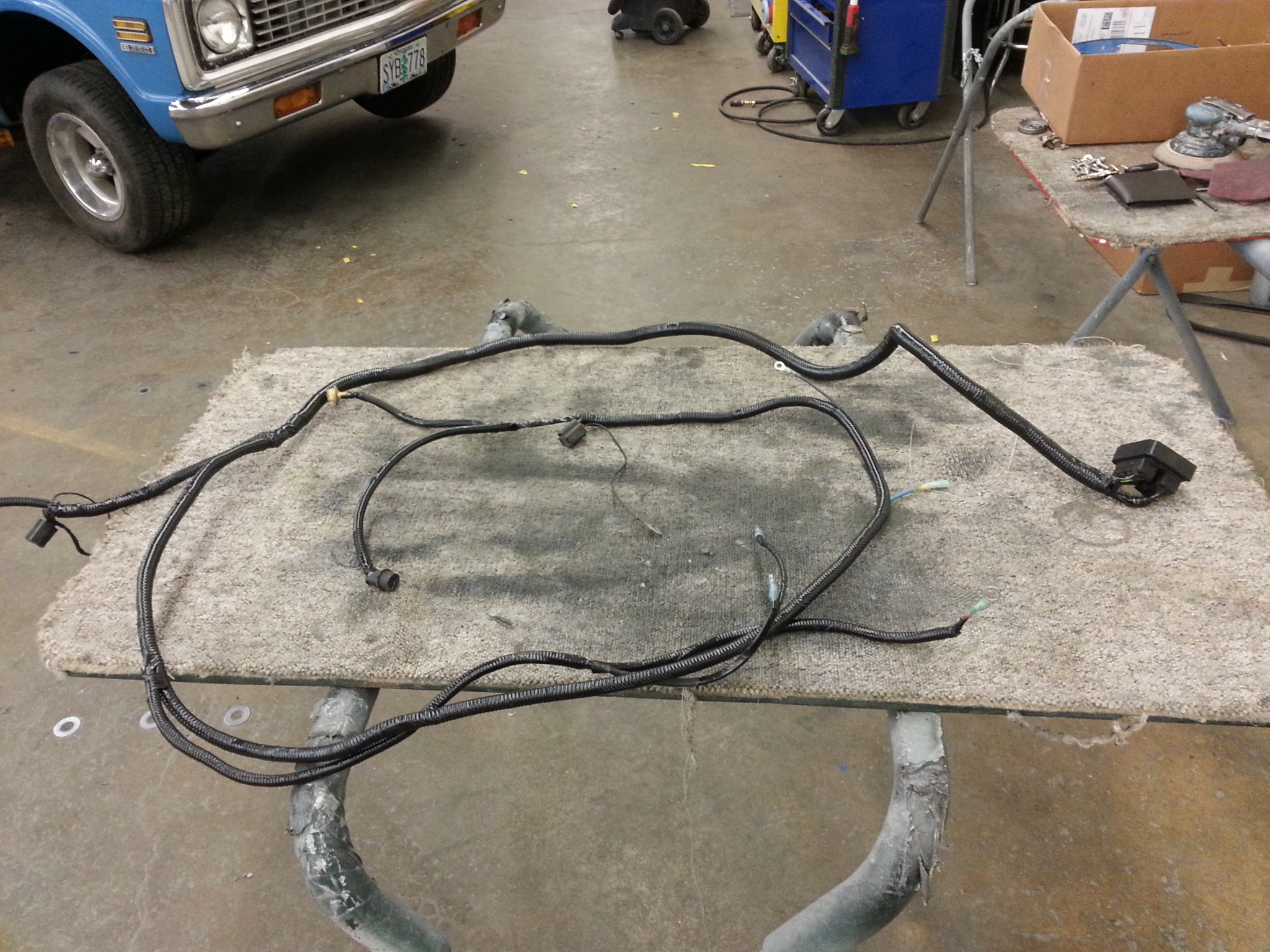

: cleanining up the factory engine bay loom

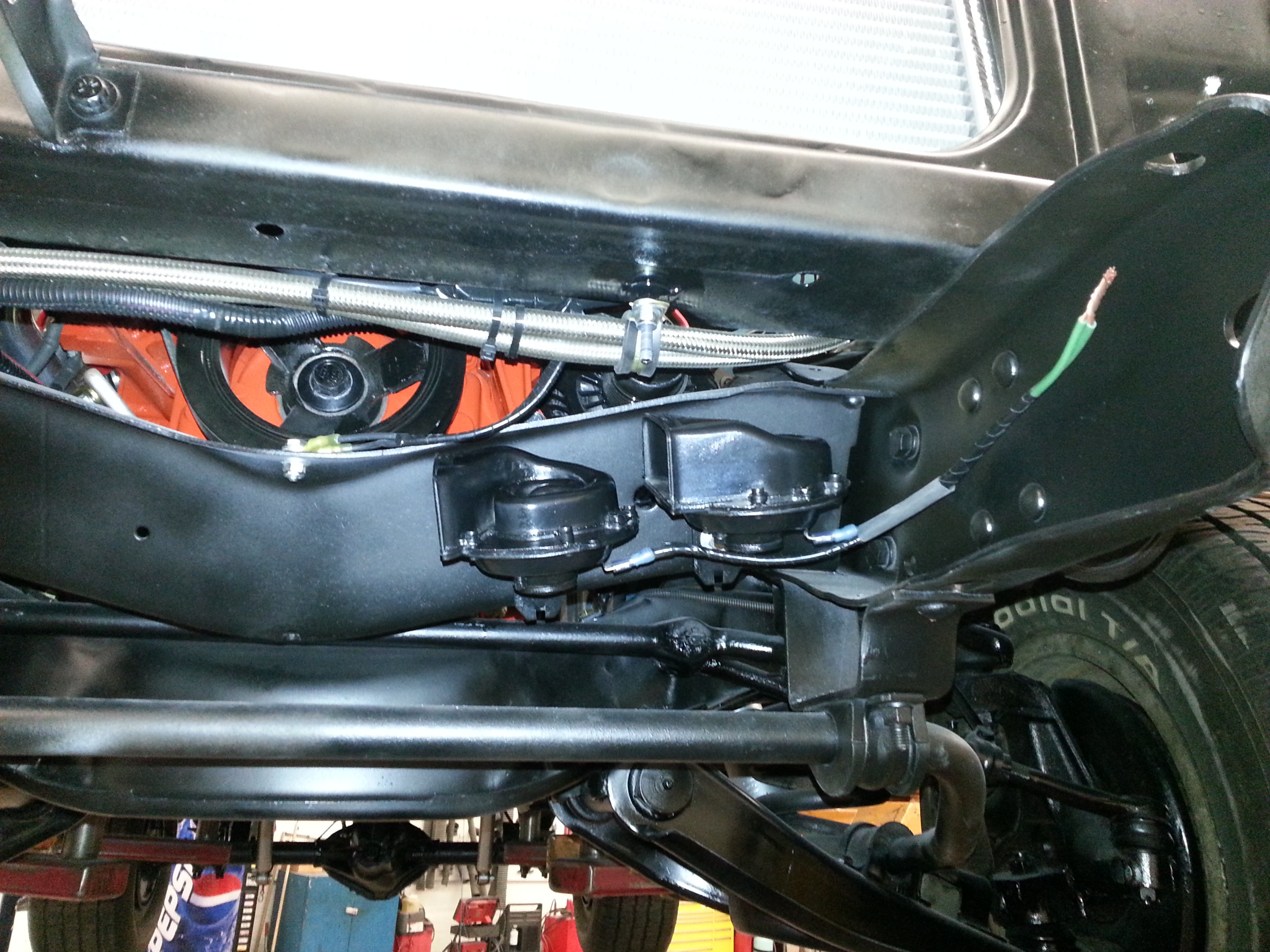

: relocating the horns out of the airbox area

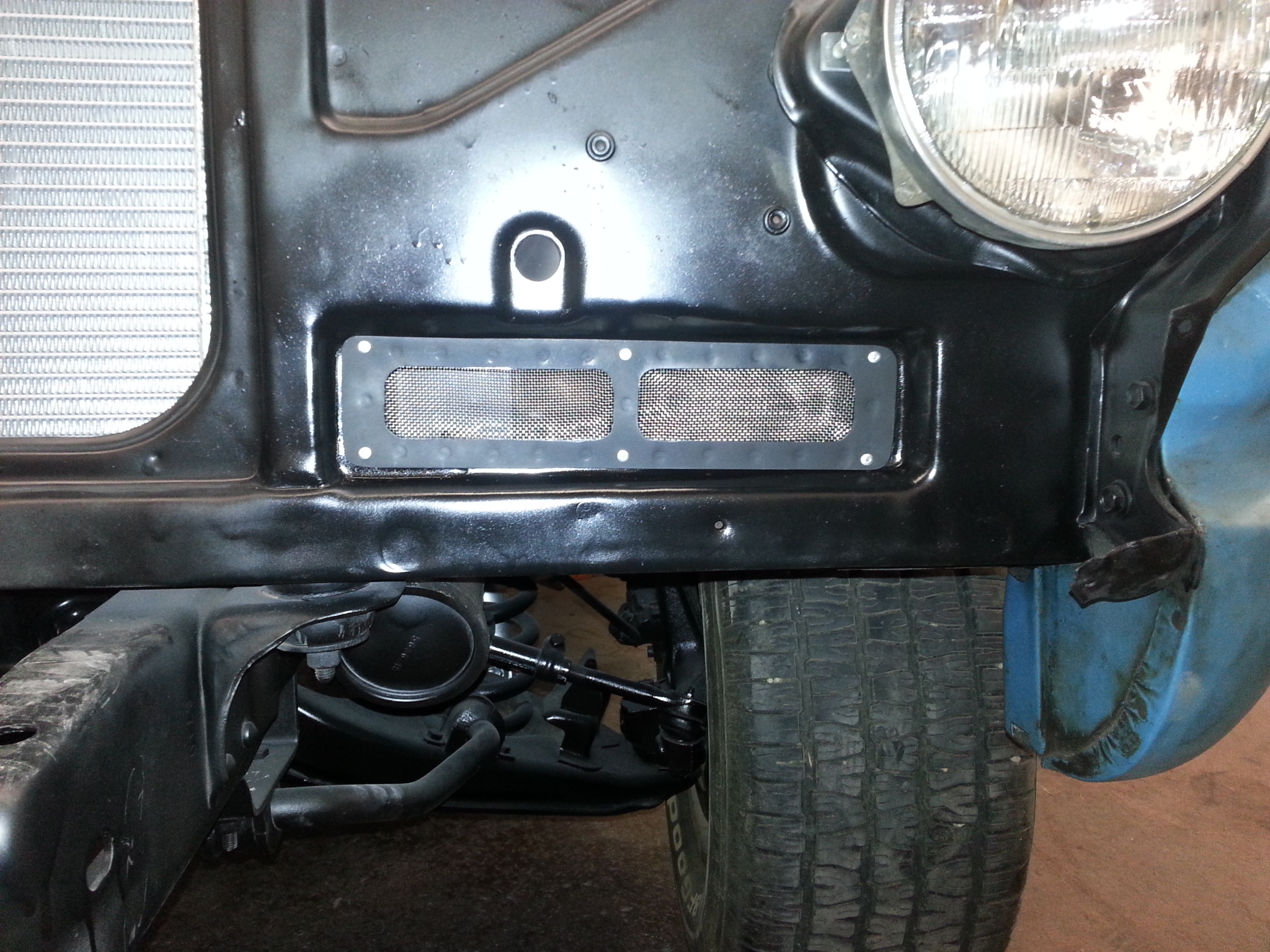

: custom stainless mesh fresh air inlet

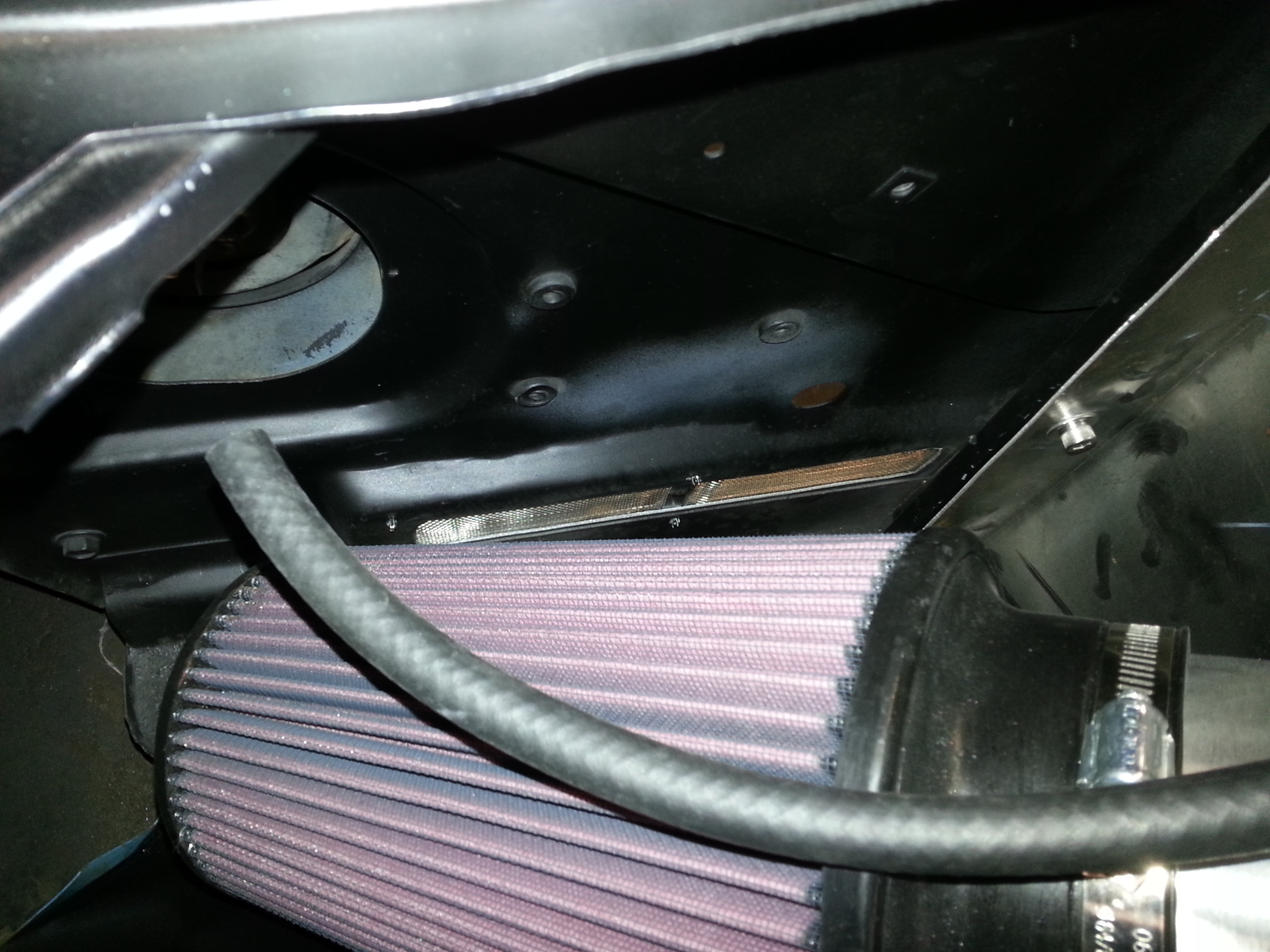

: looking at inlet from inside the airbox

: hidden but everpresent

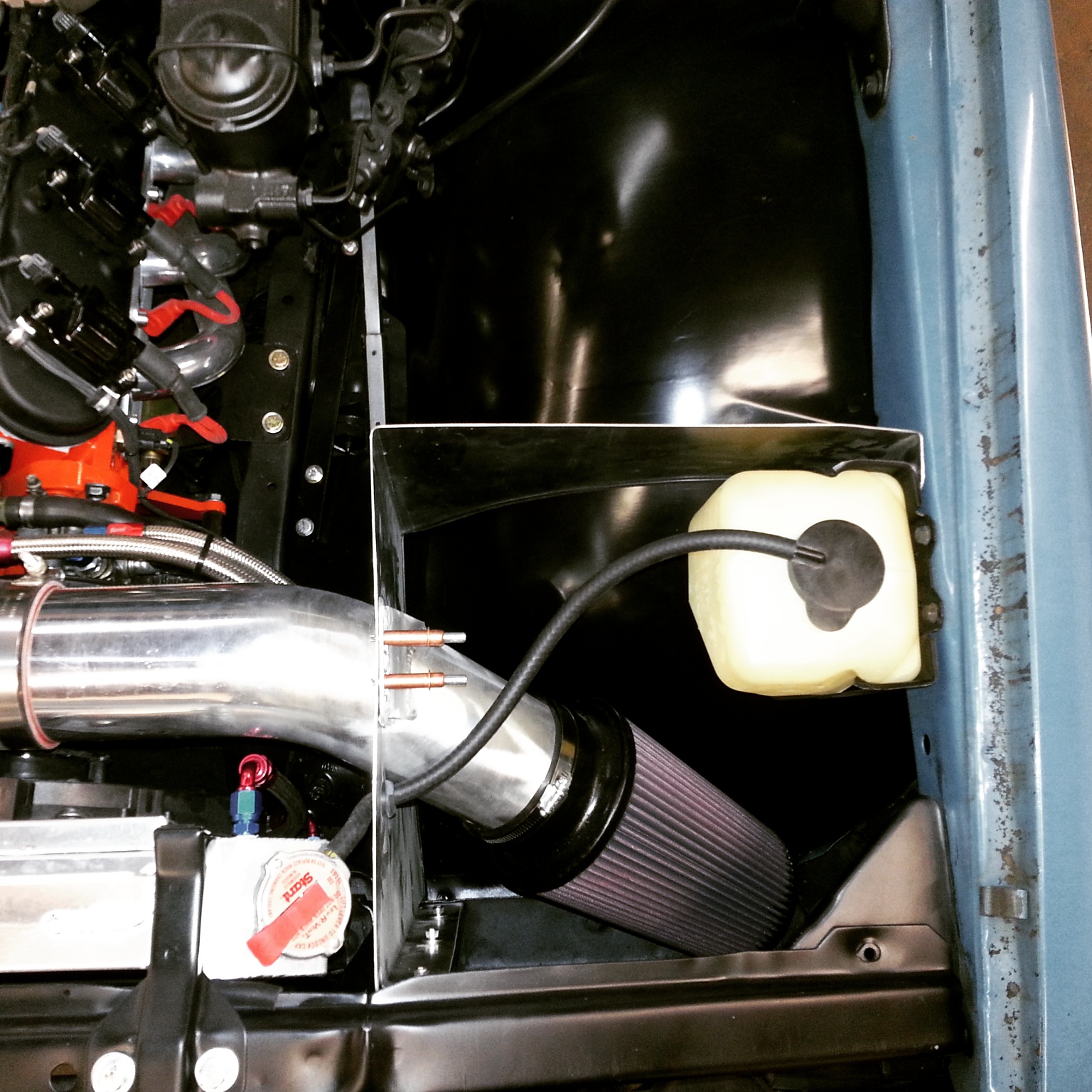

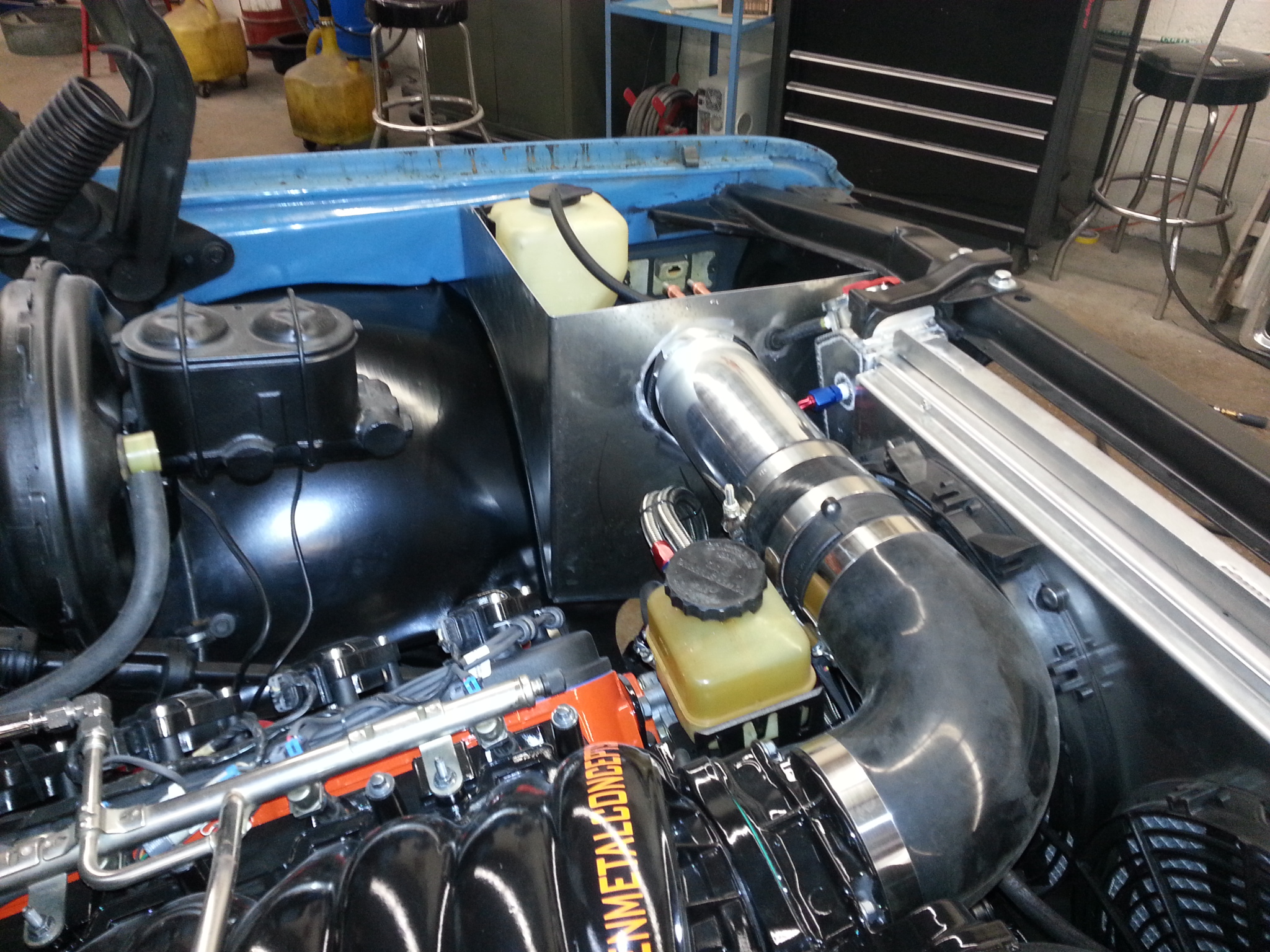

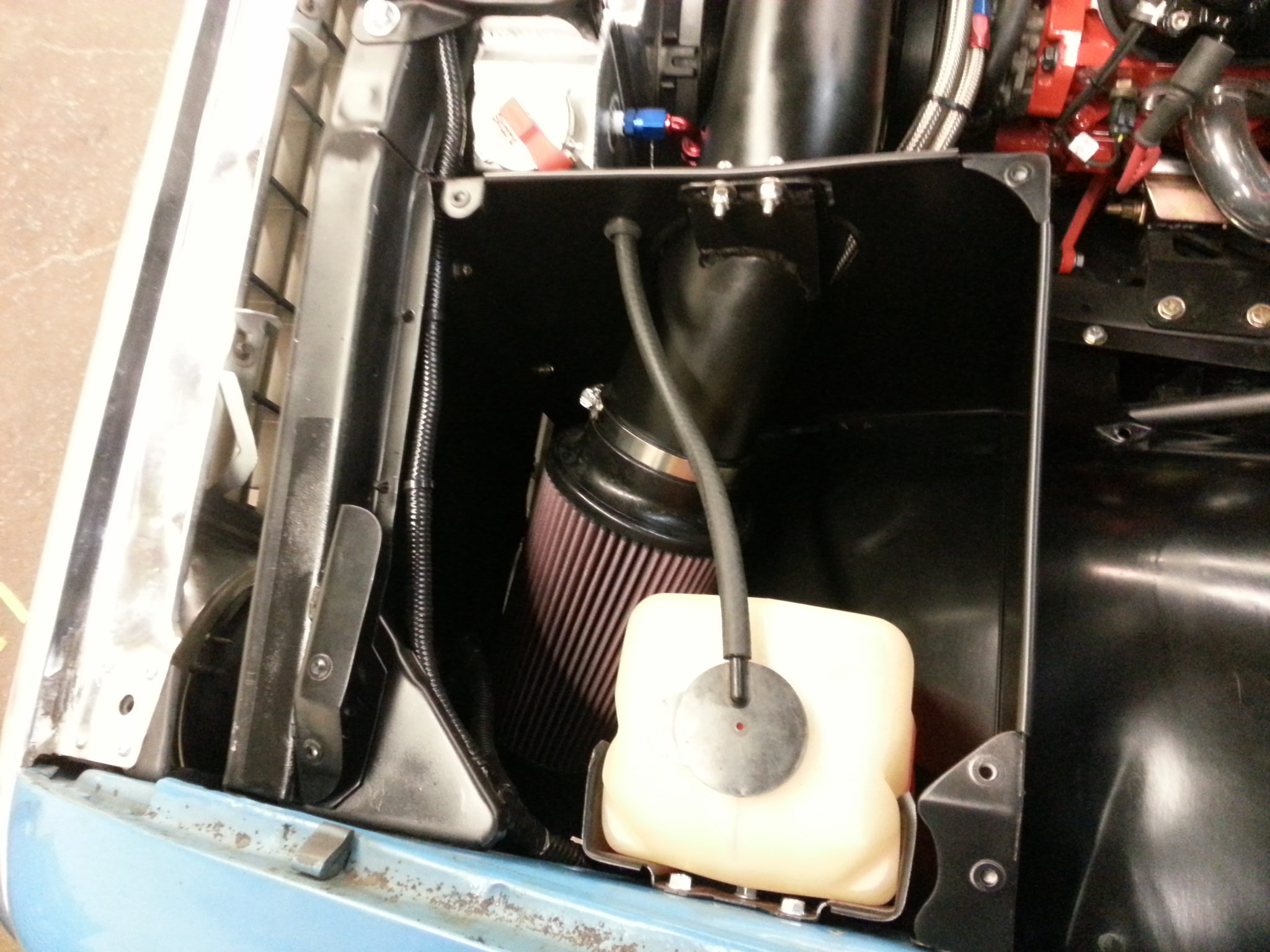

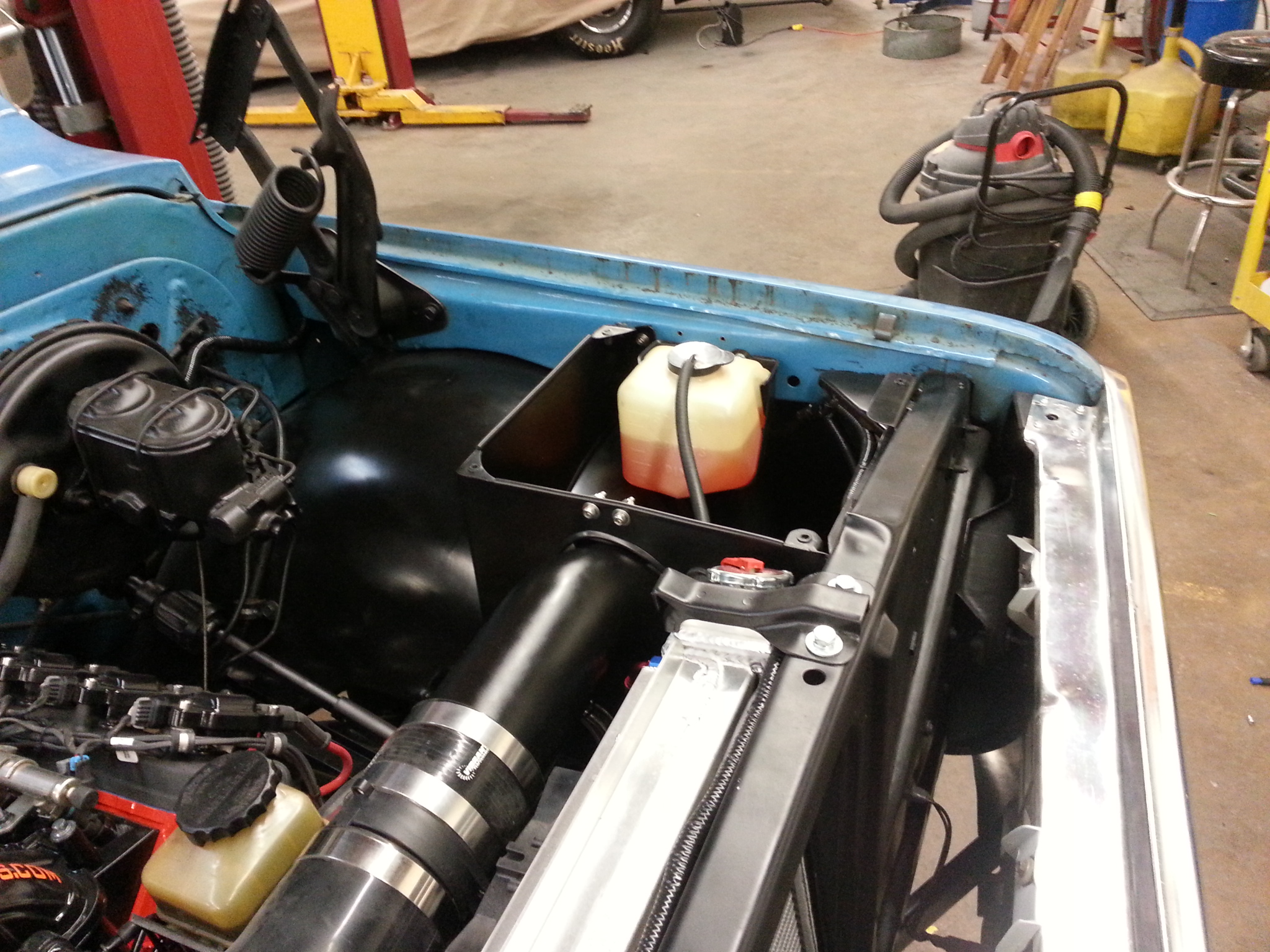

: the airbox hides the factory overflow tank

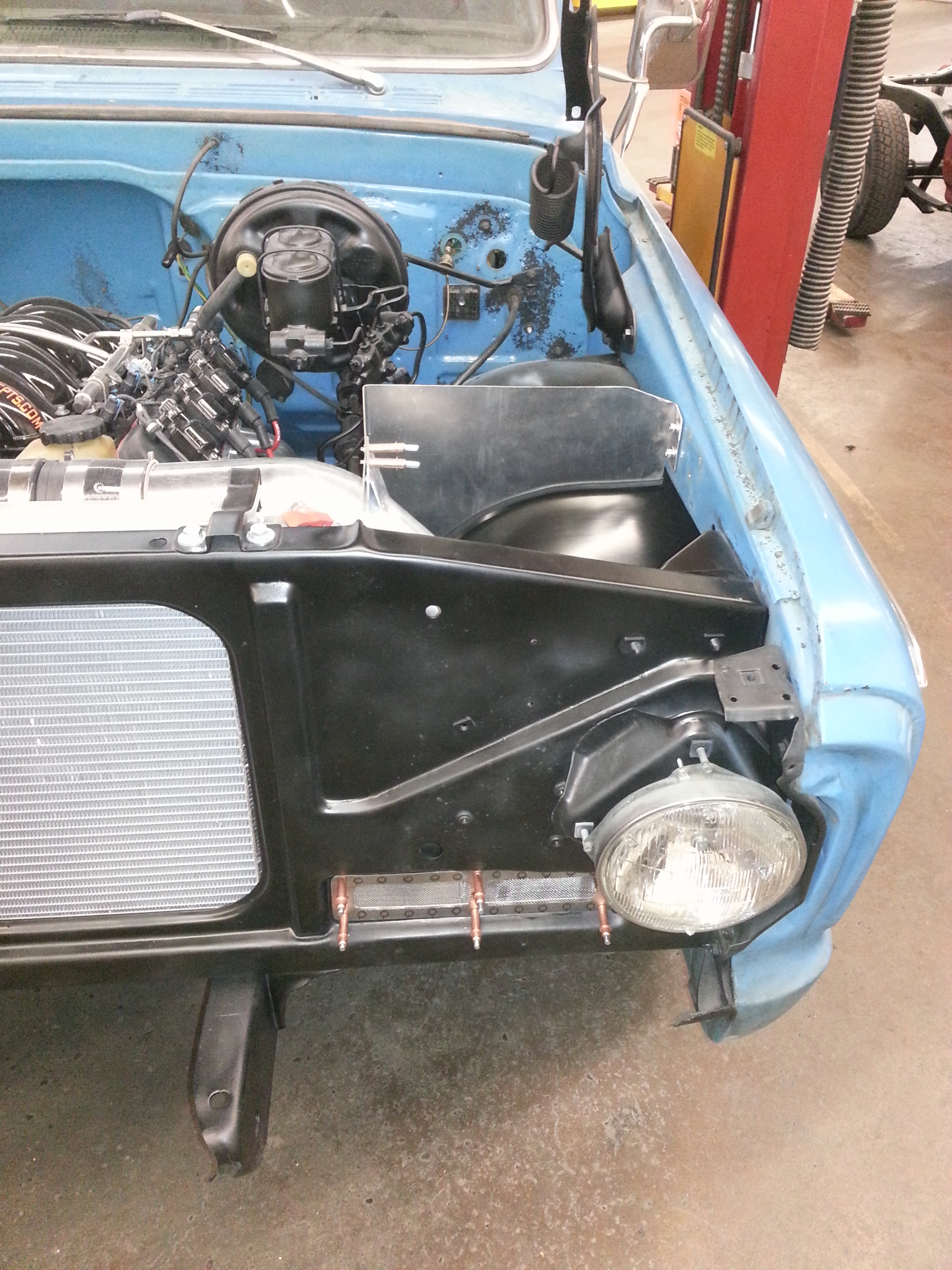

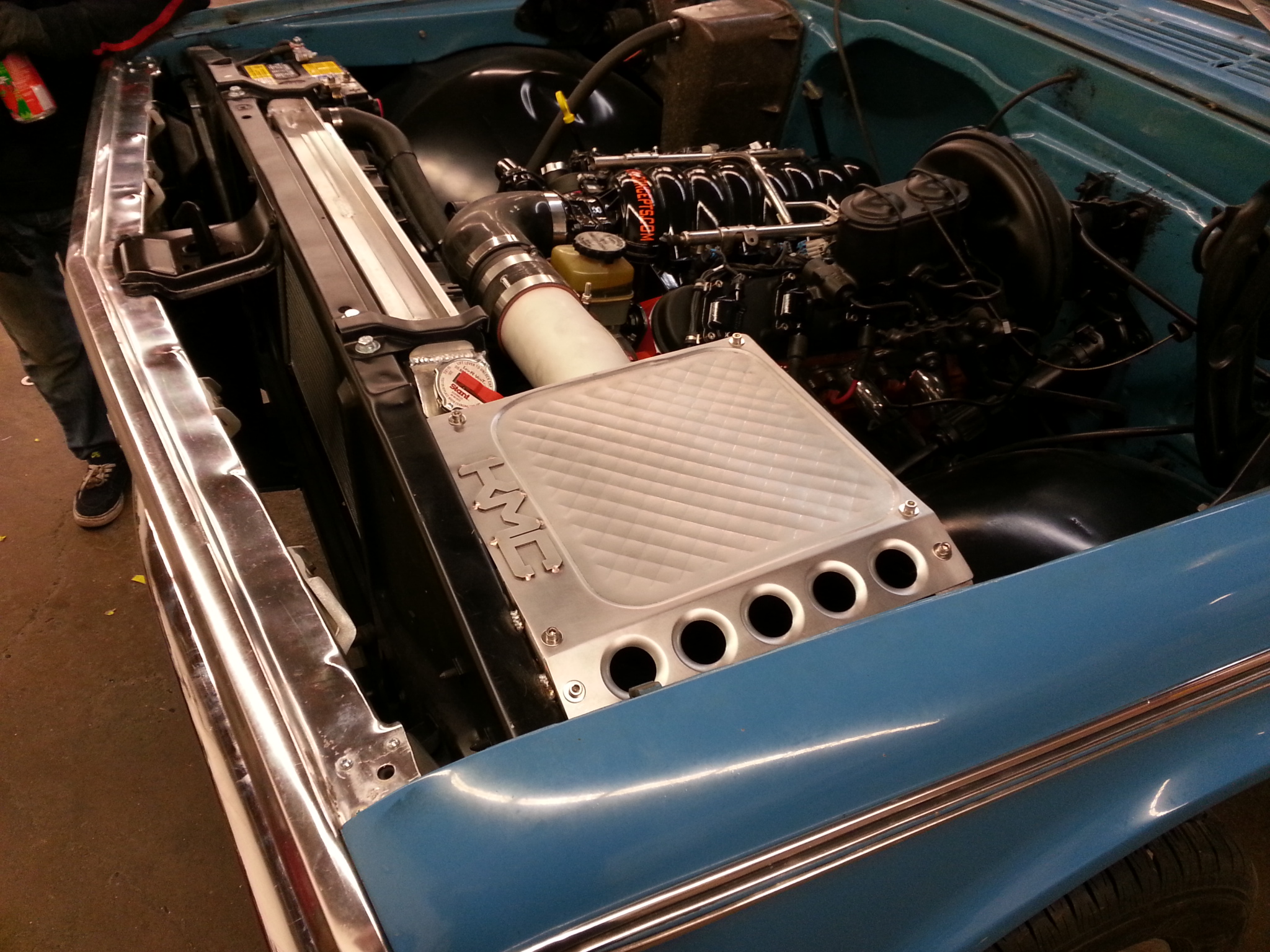

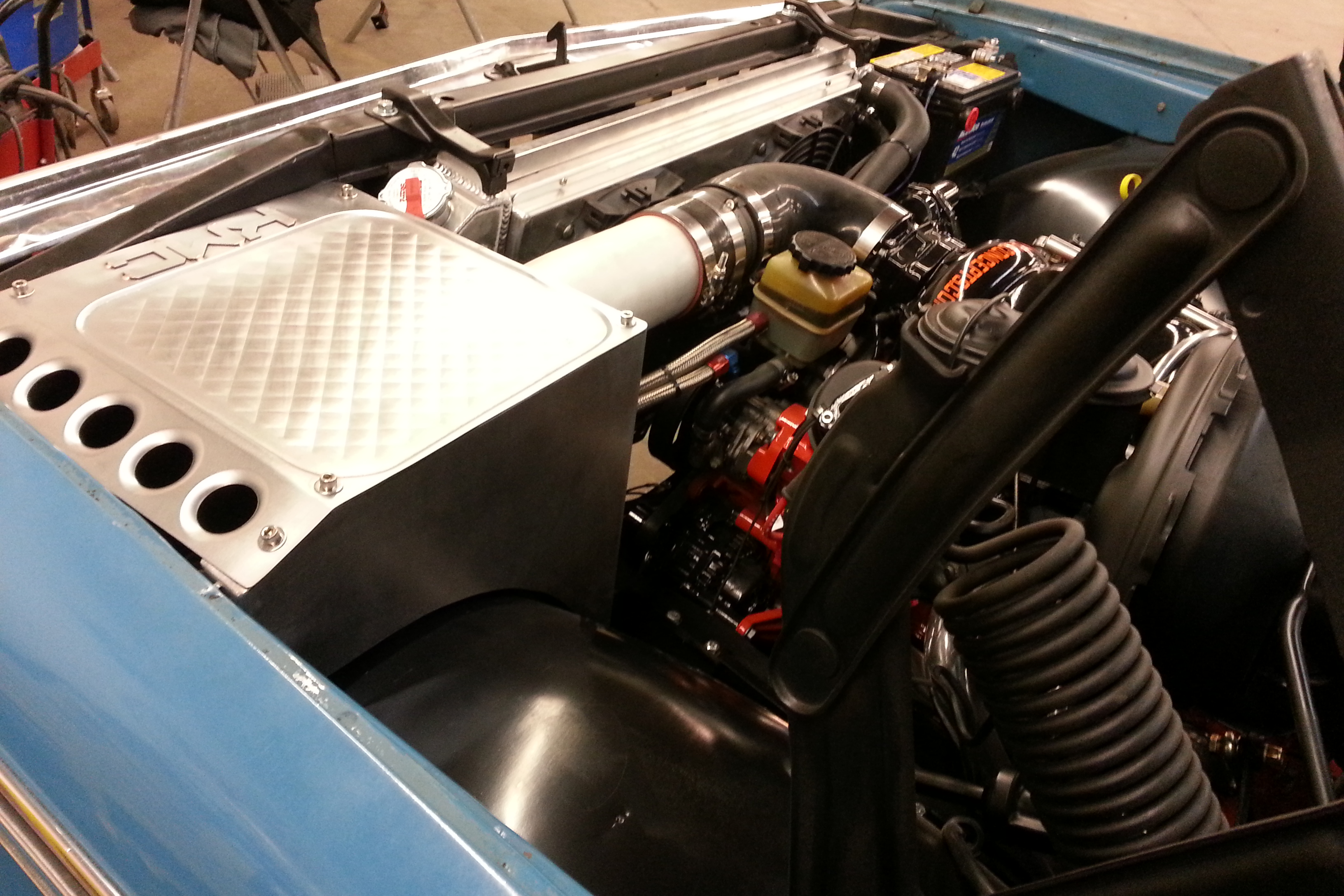

: airbox finished up

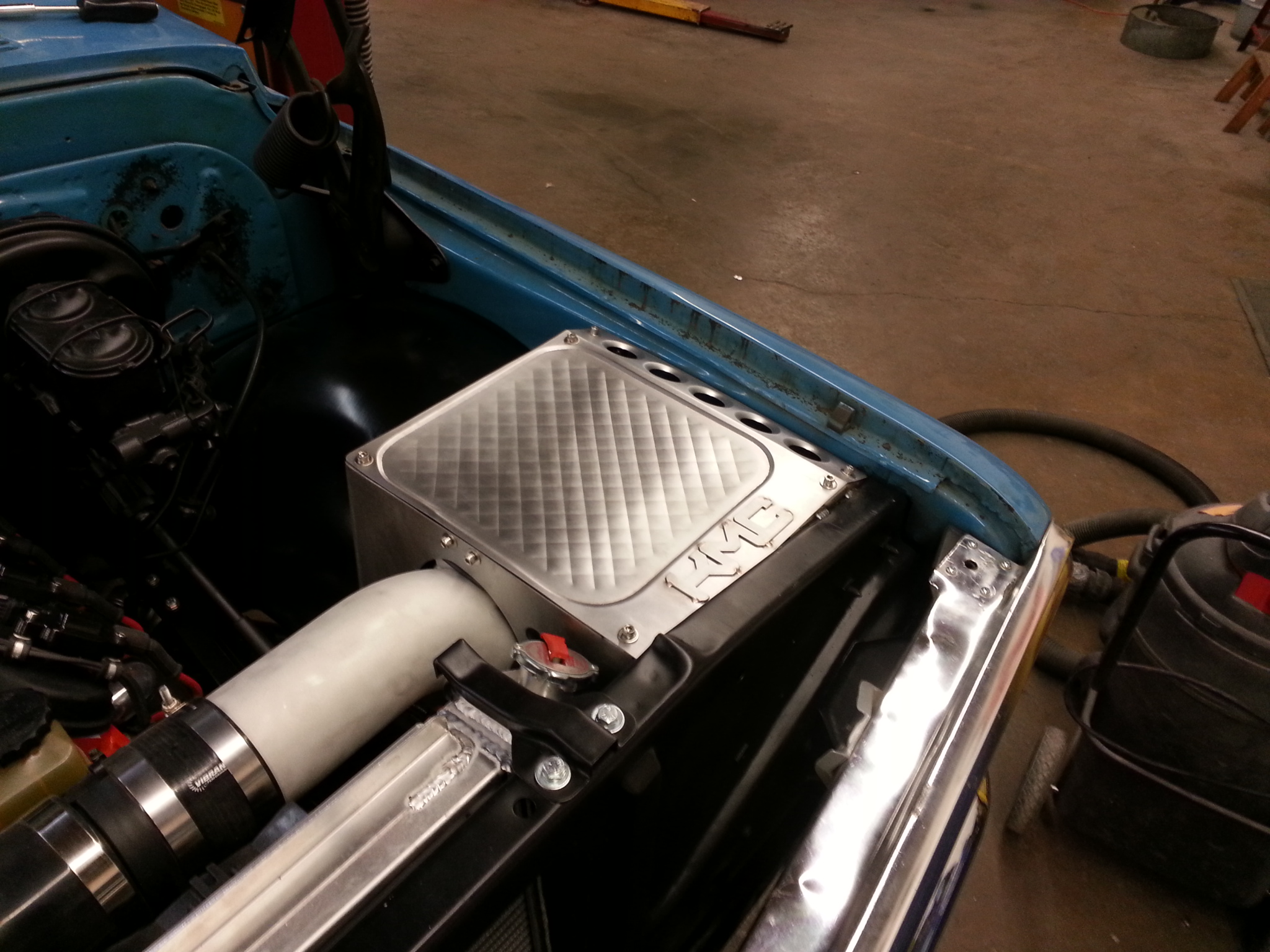

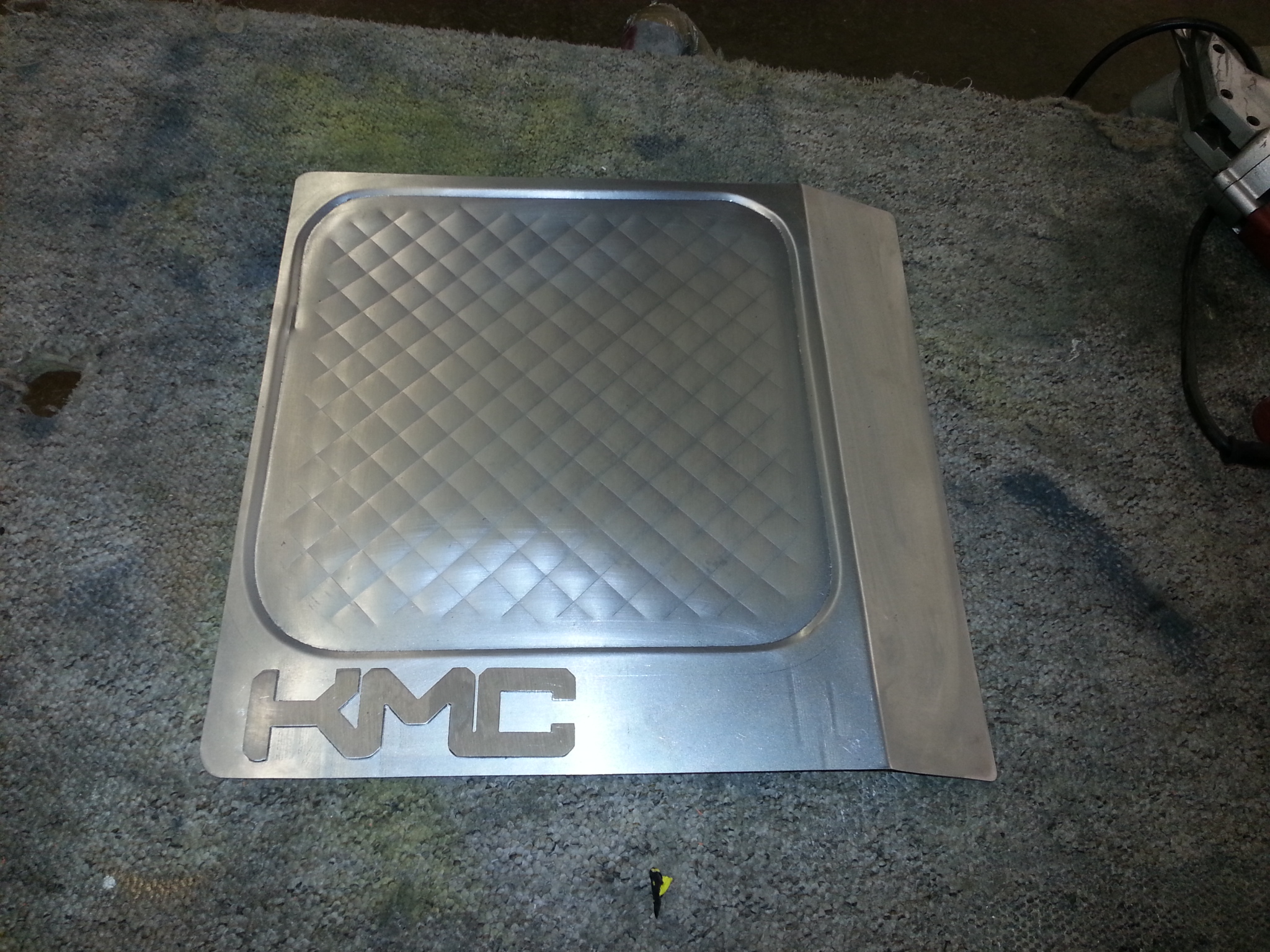

: Cool artistic airbox lid. Cross hatching done inhouse

: Back view

: side view. Very happy with this design

: getting the logistics figured out

: roughing out the final product

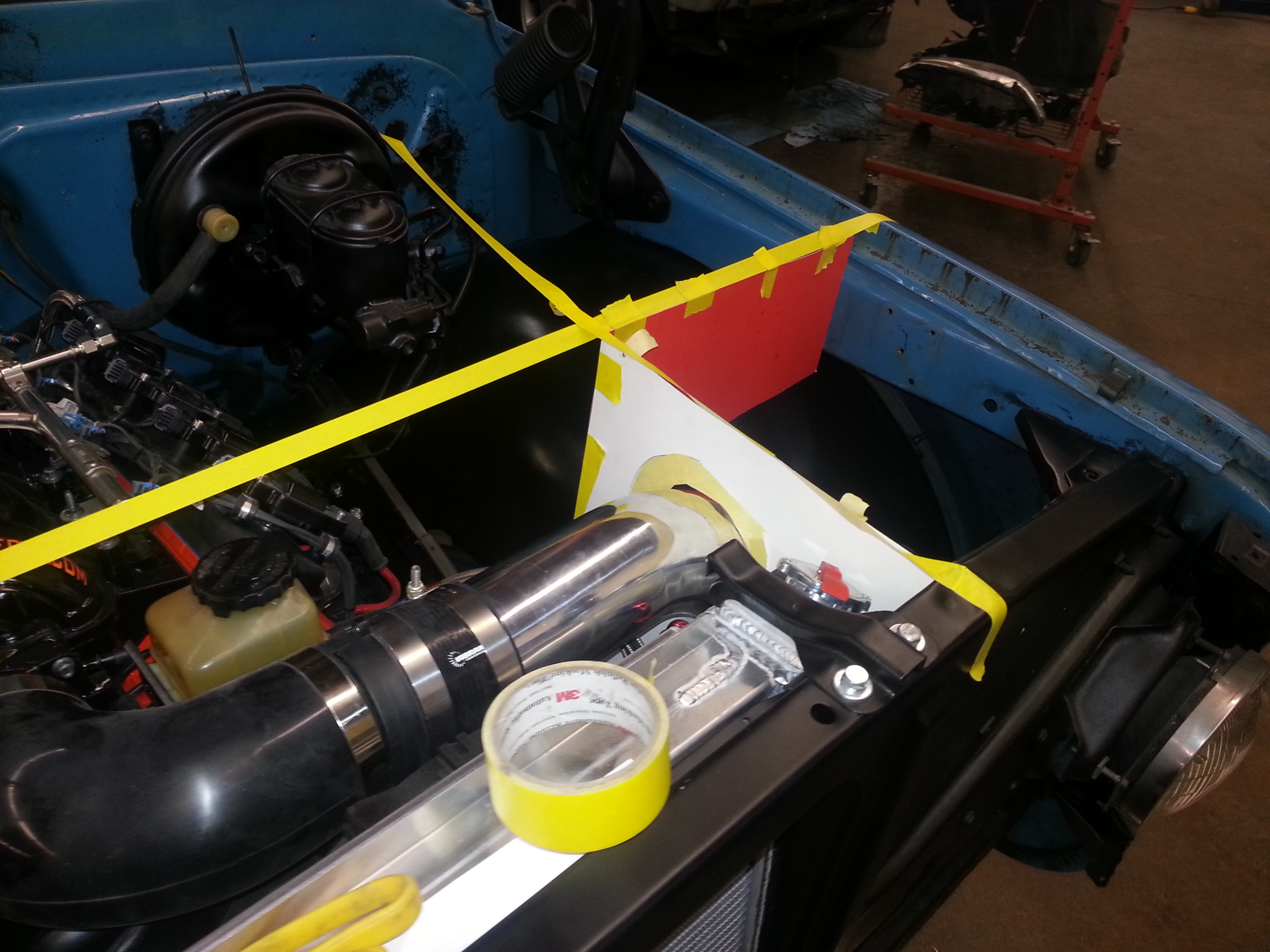

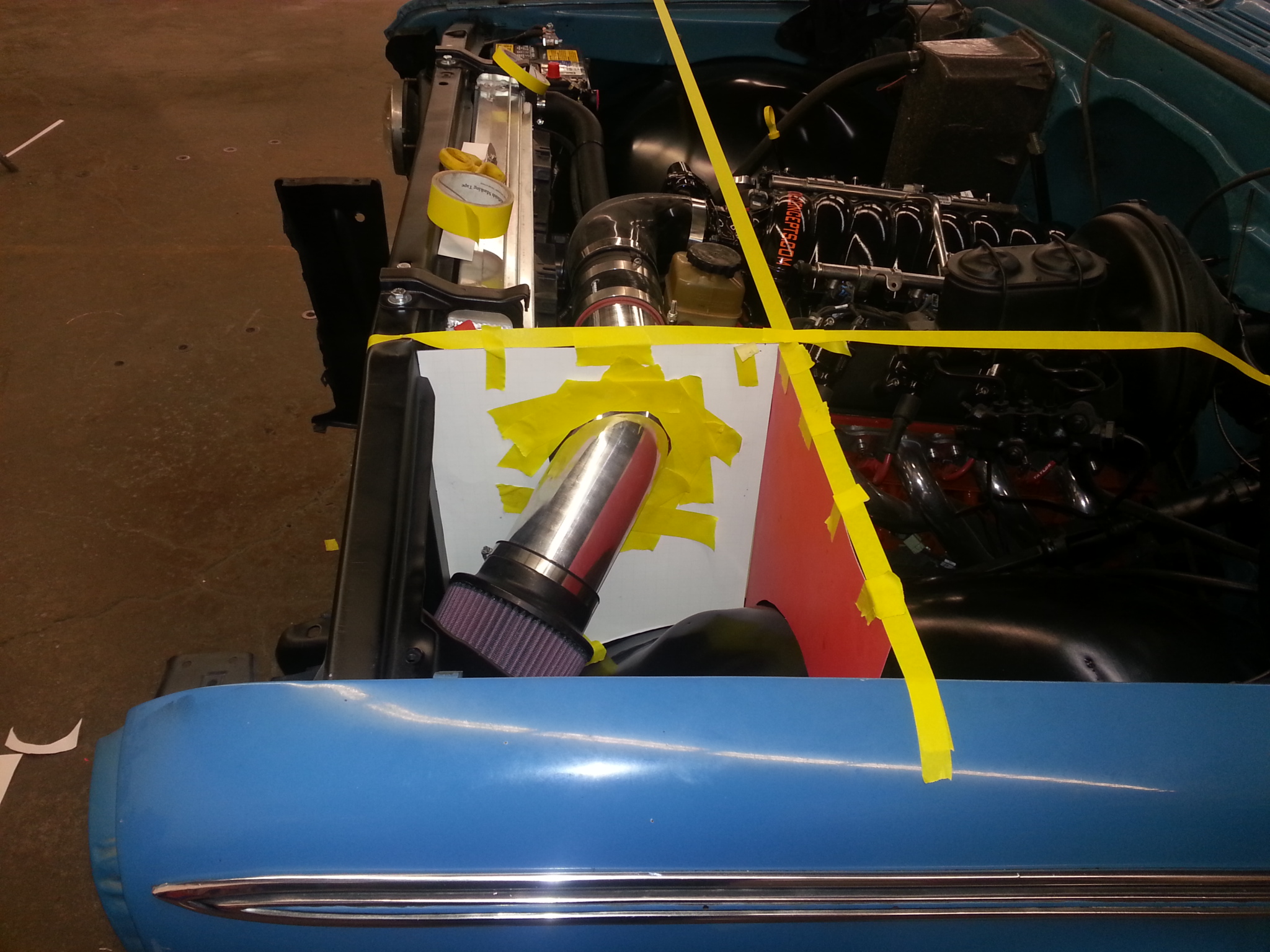

: mocking up airbox

: getting the hole laid out just right

: making sure the box sides are square to the bay

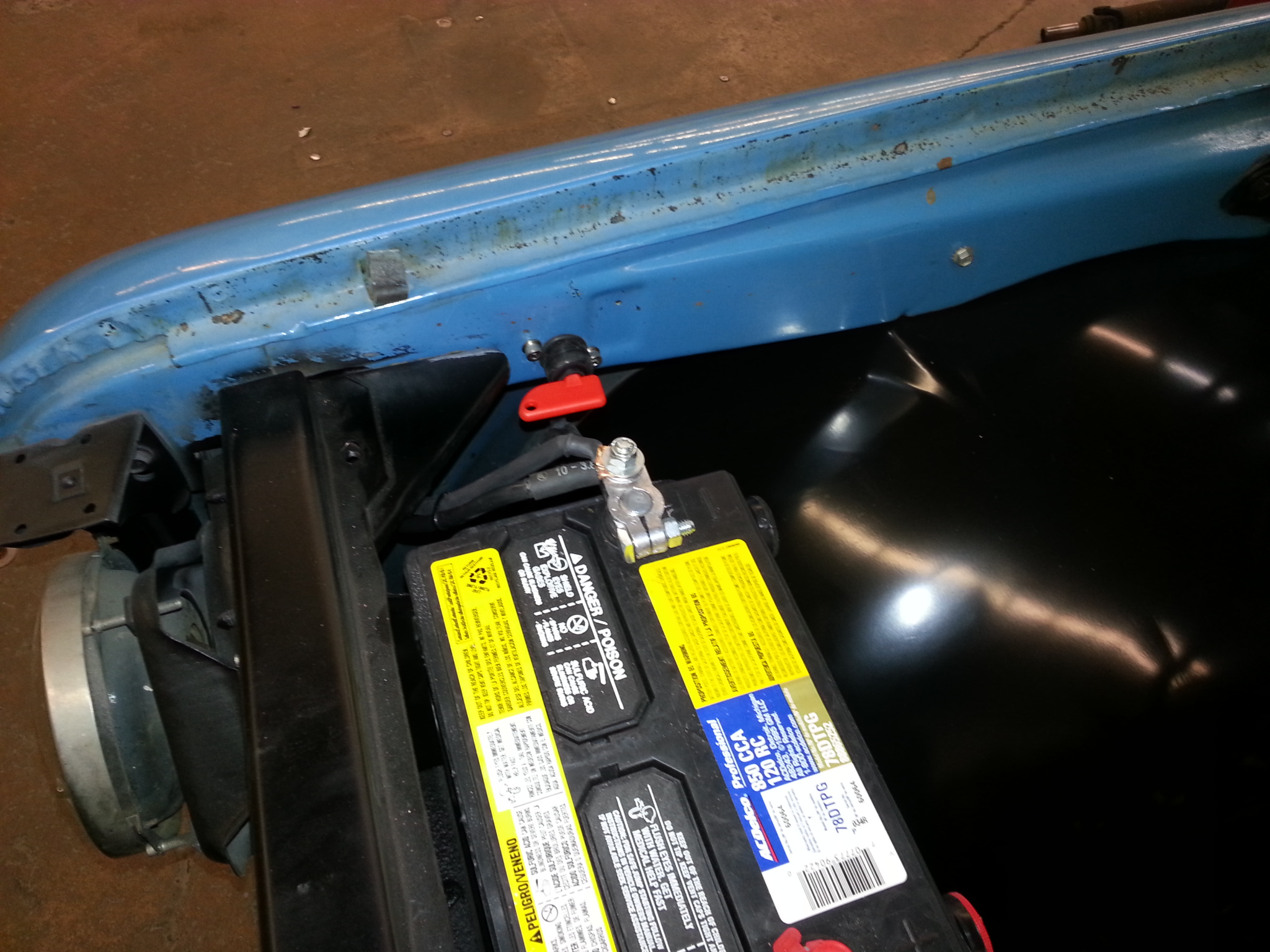

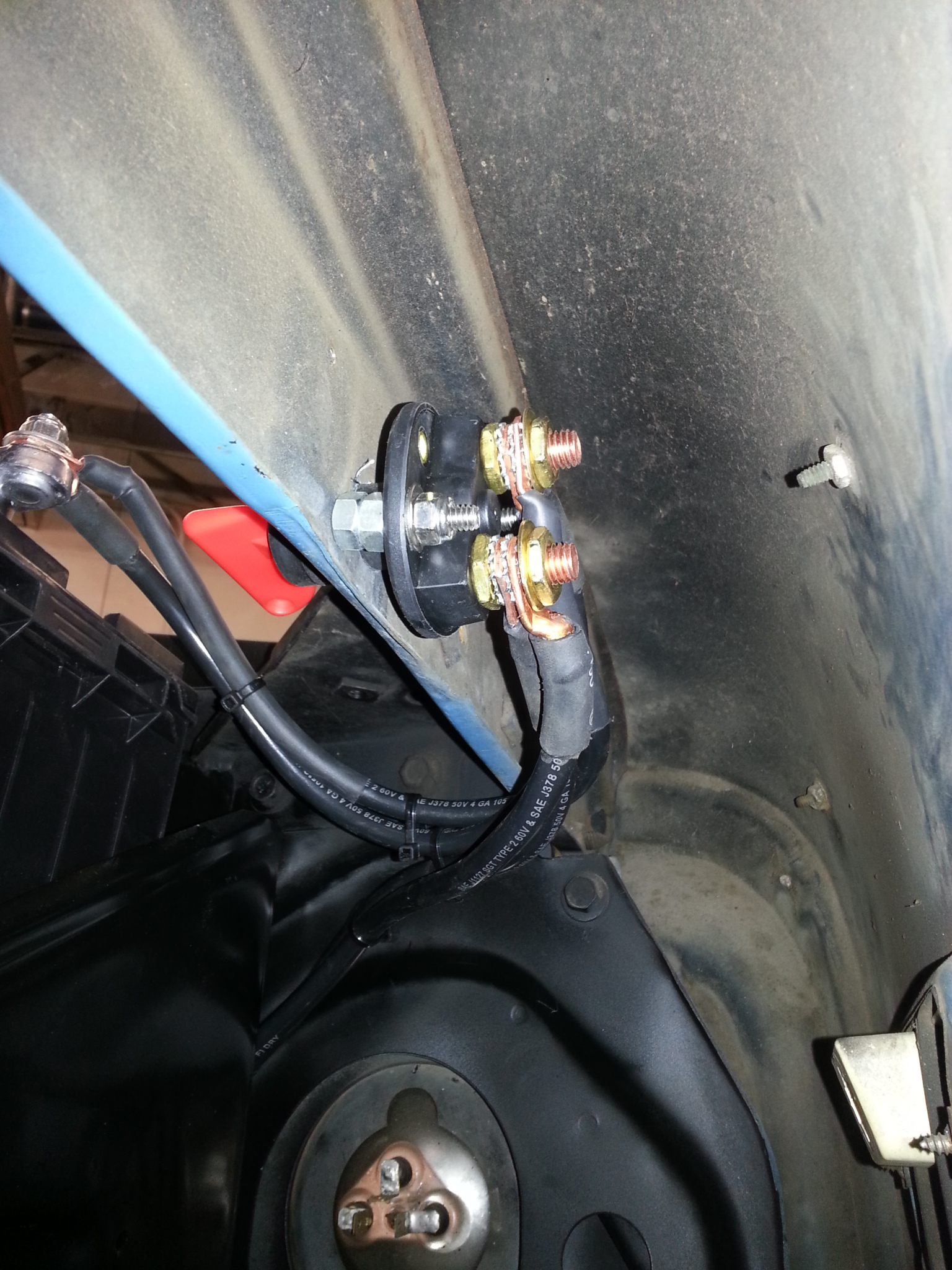

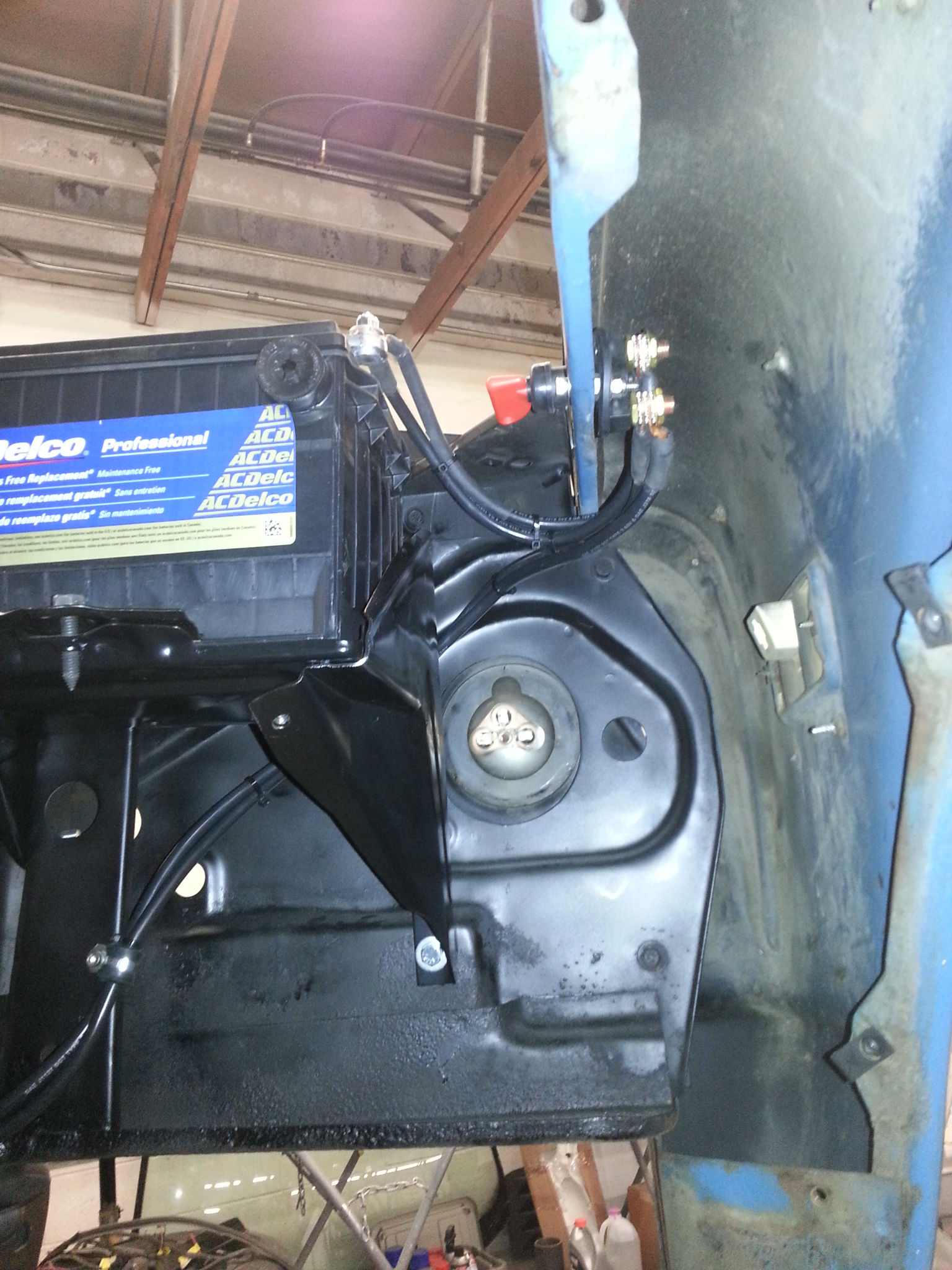

: nice looking discreet killswitch

: I love mounting these in the fender area

: wiring up the kill switch

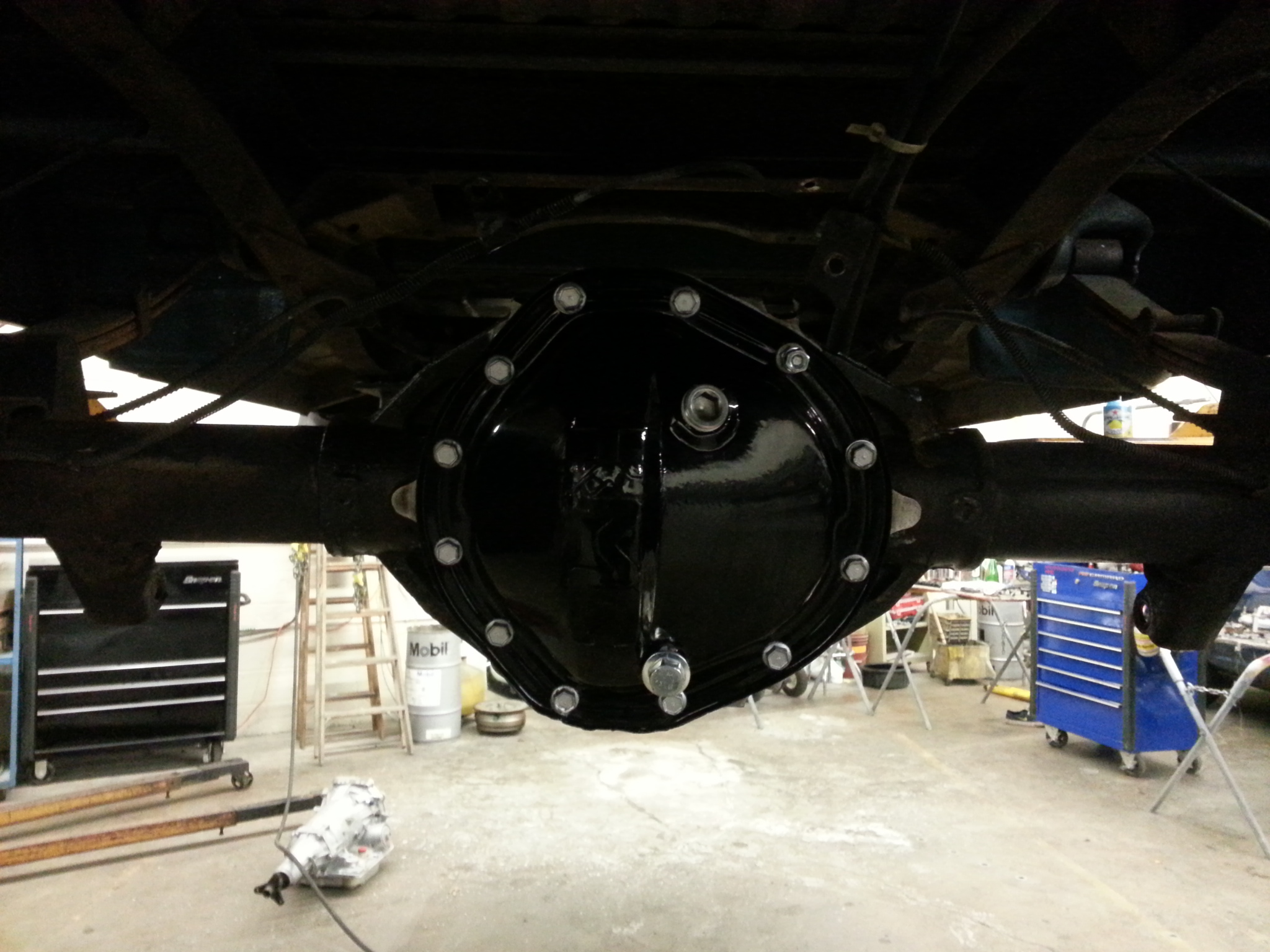

: the rear end filled with good stuff and painted up. 3:73’s and an eaton posi

: Teaching the young guns how a rear end goes together

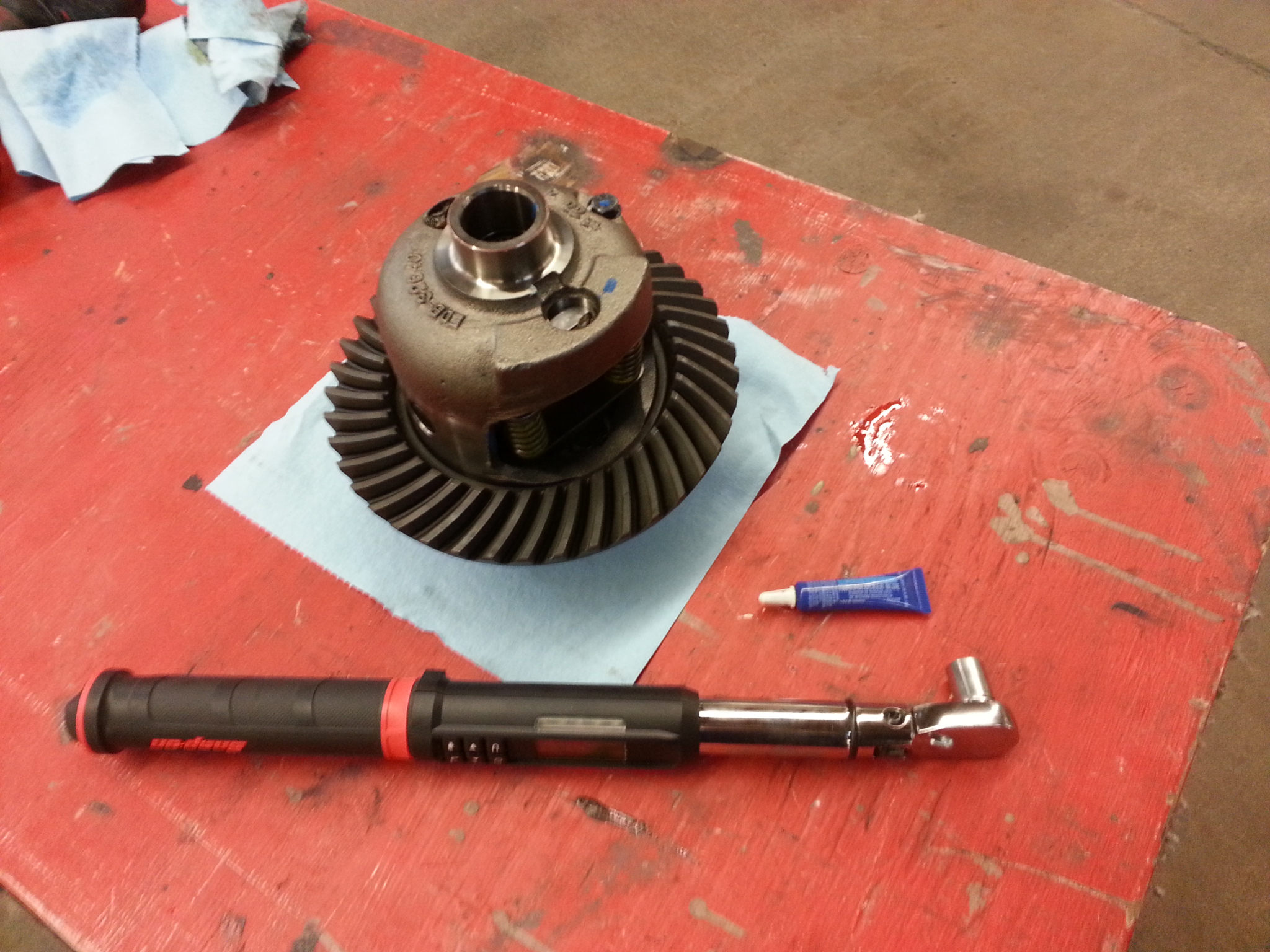

: setting up the new ring gear and eaton posi

: All done ready for paint

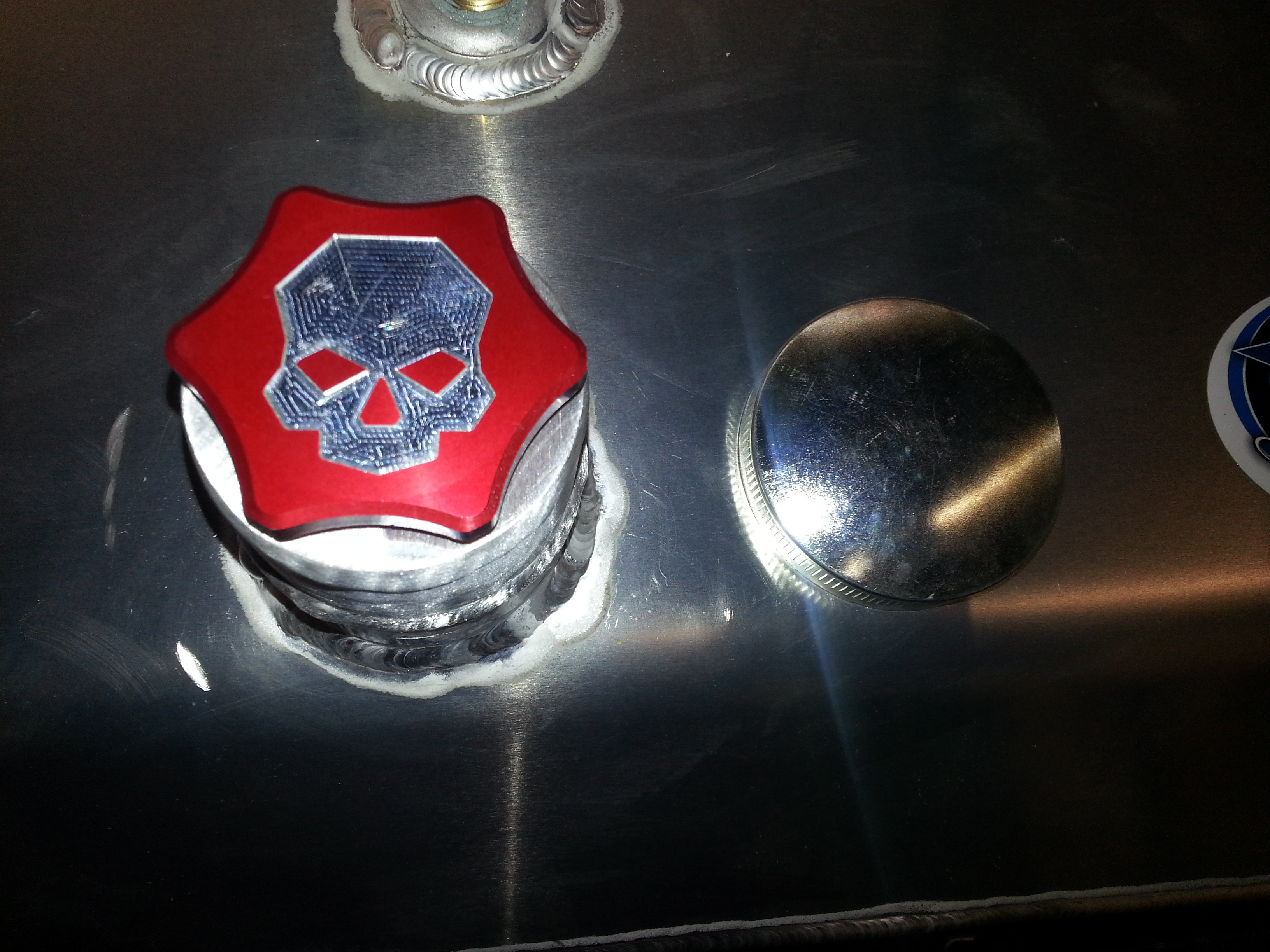

: The cap needed more attitude

: Ready to weld in

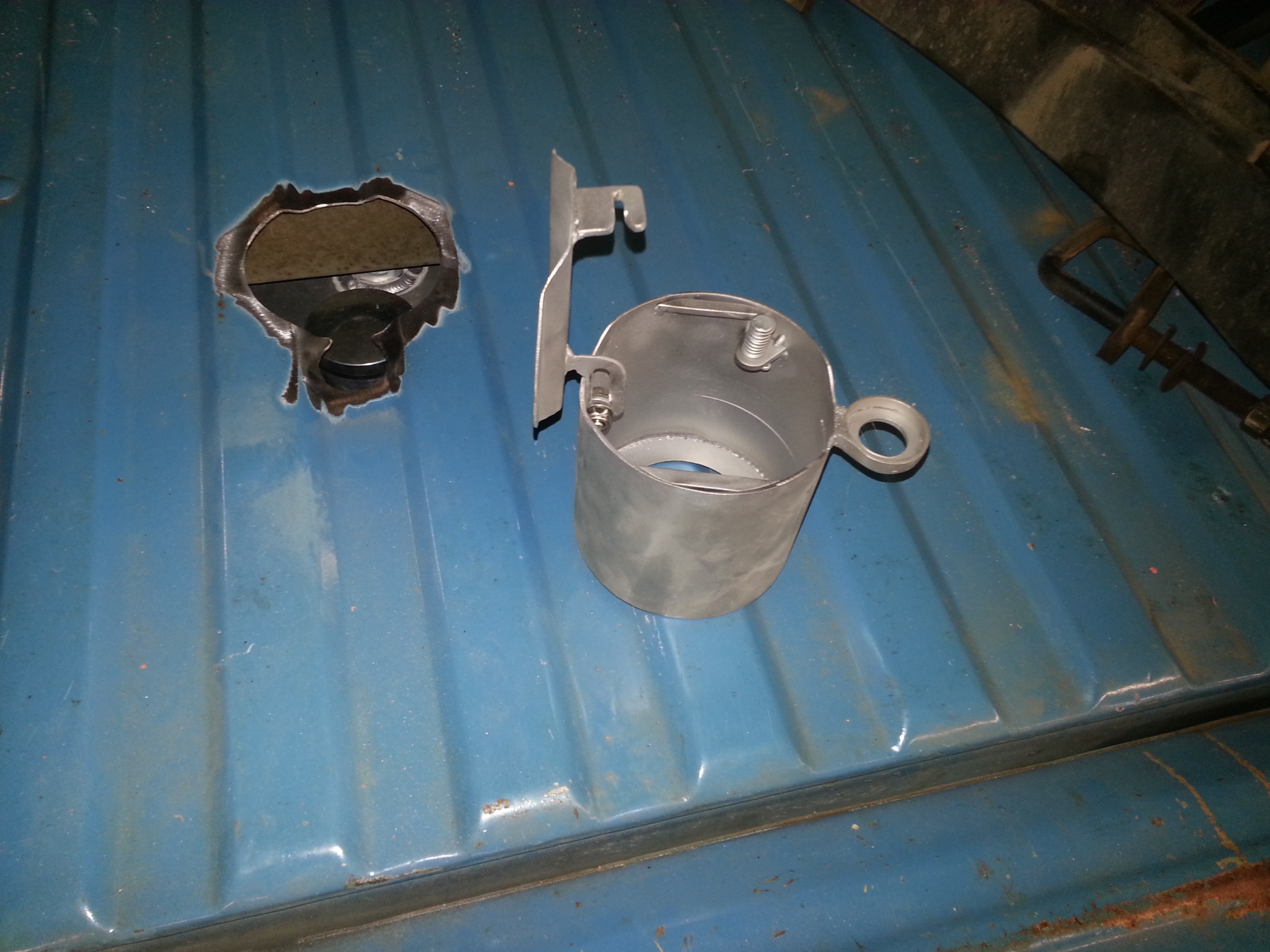

: A bucket designed to conceal fuel neck

: milling parts for the fuel neck

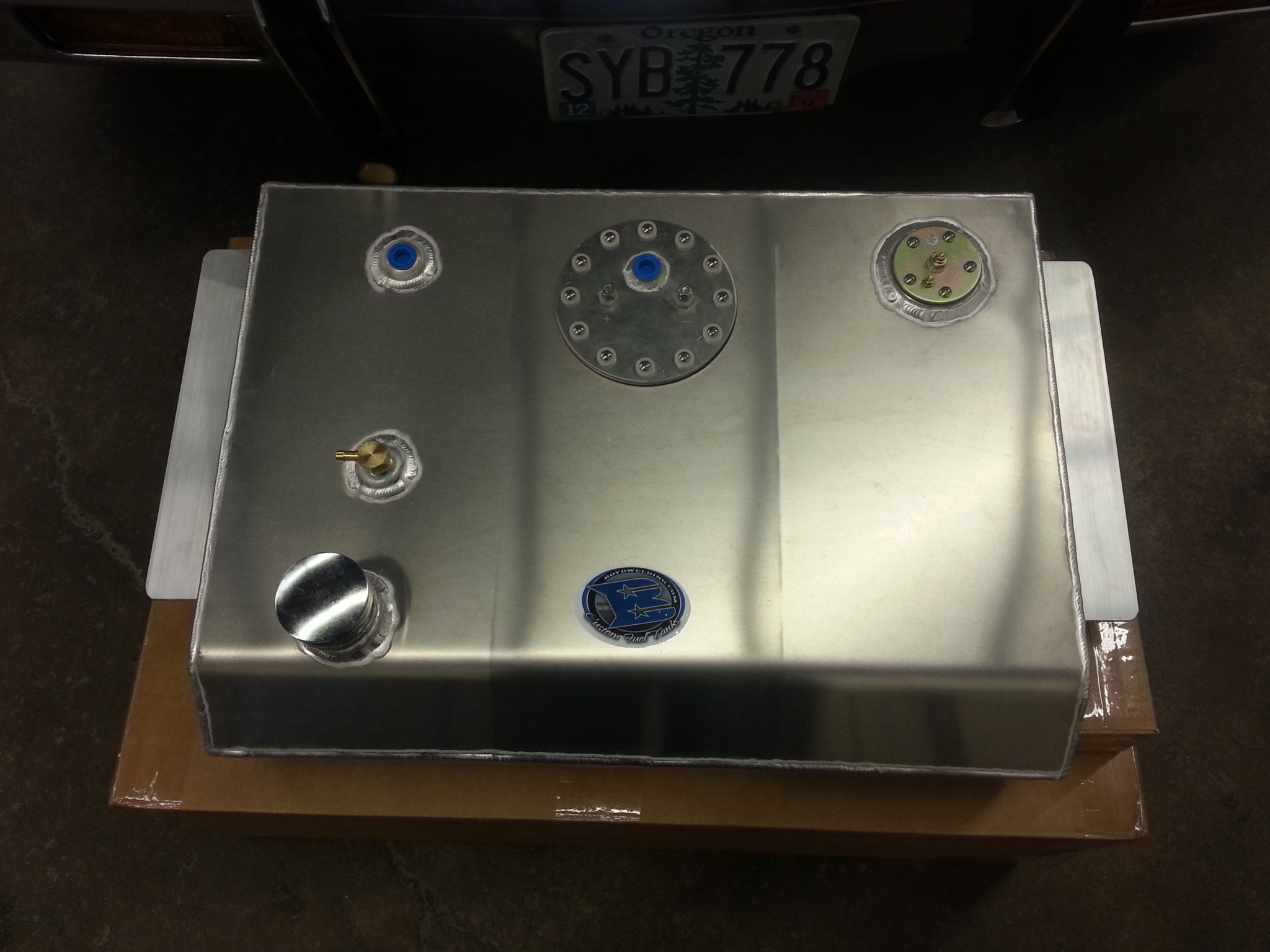

: New tank ready for a few mods

: Installing bulkheads for the new rear mount tank

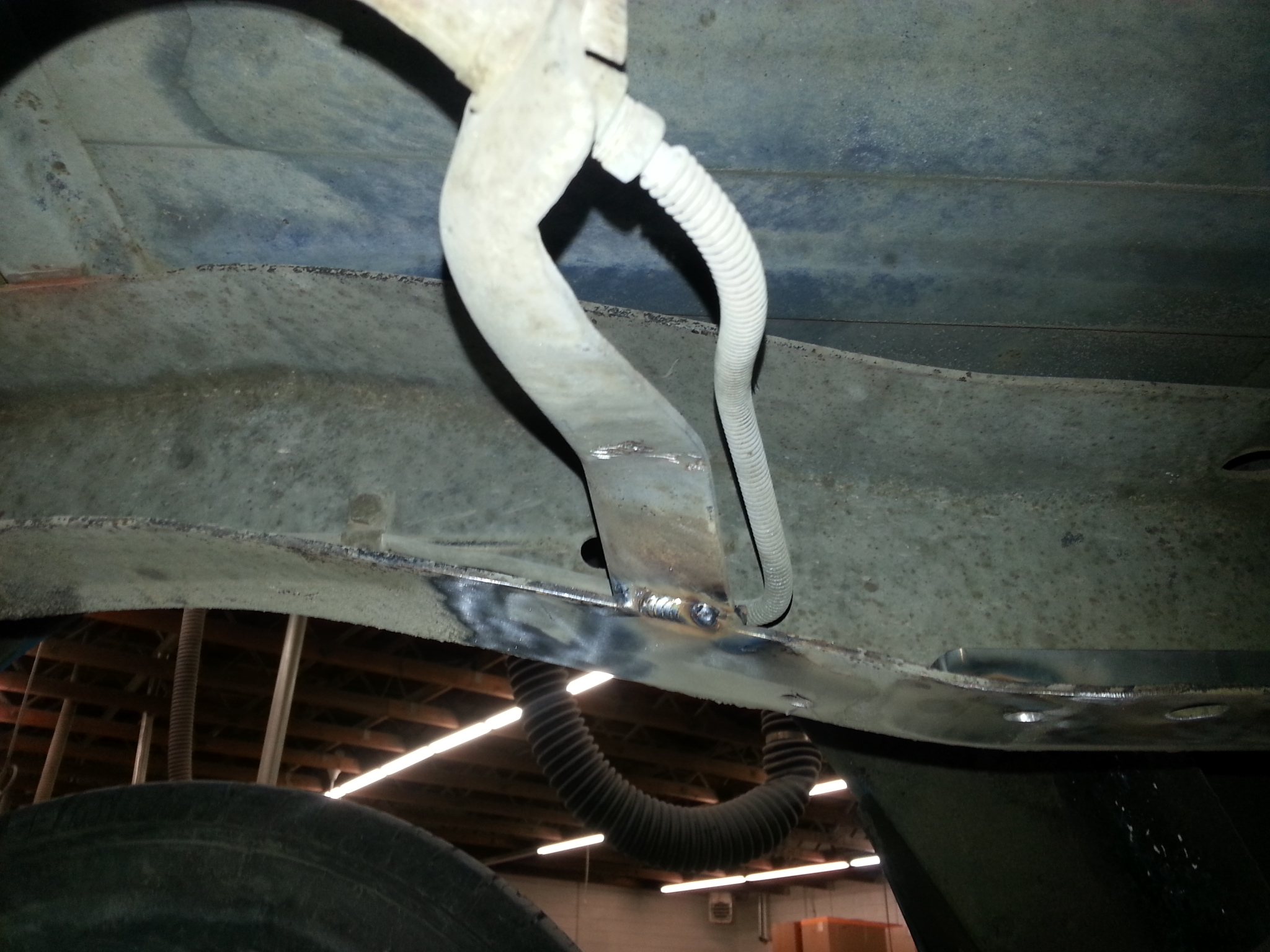

: relocating the rear end brakeline bracket for as new tank

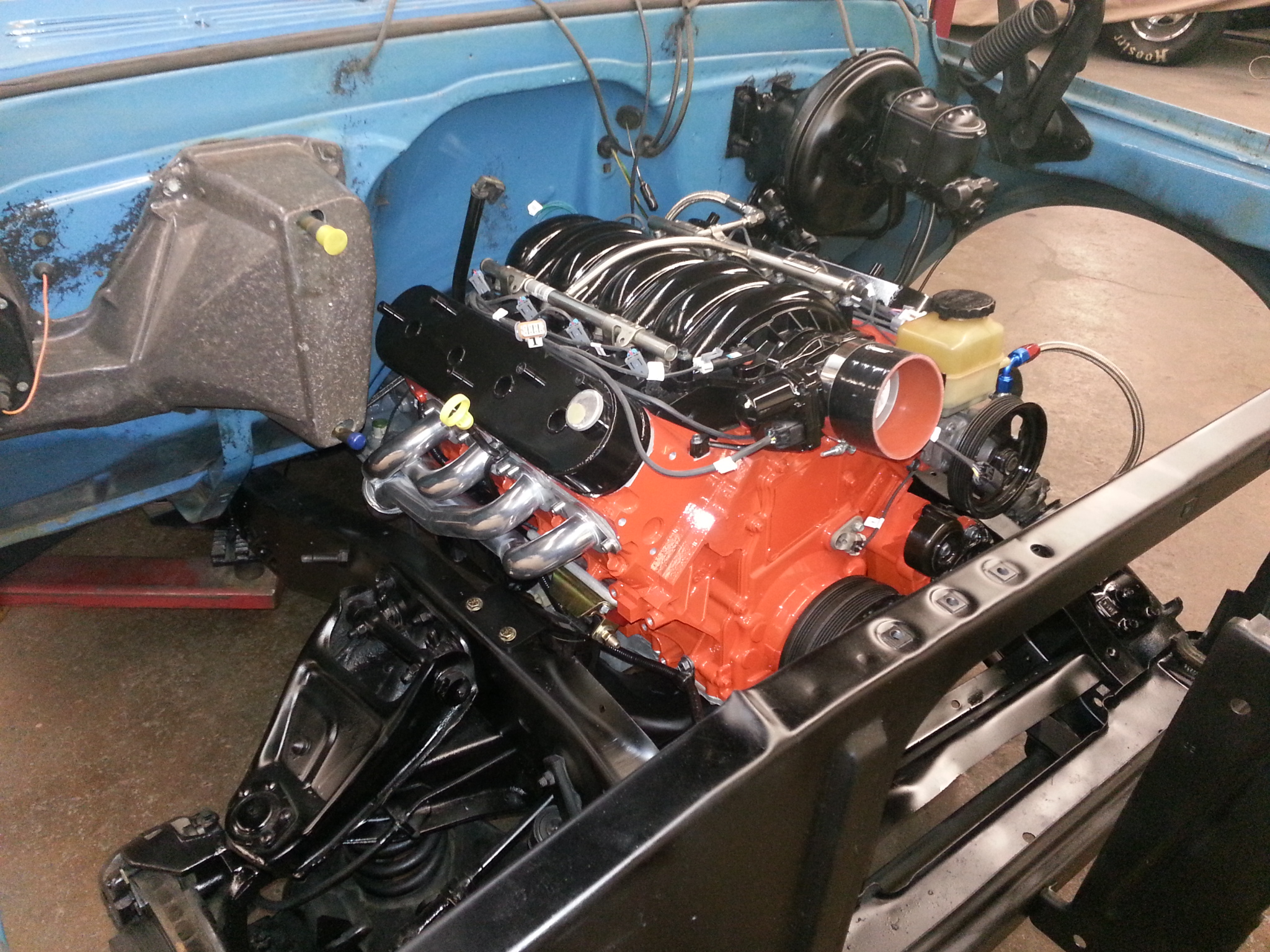

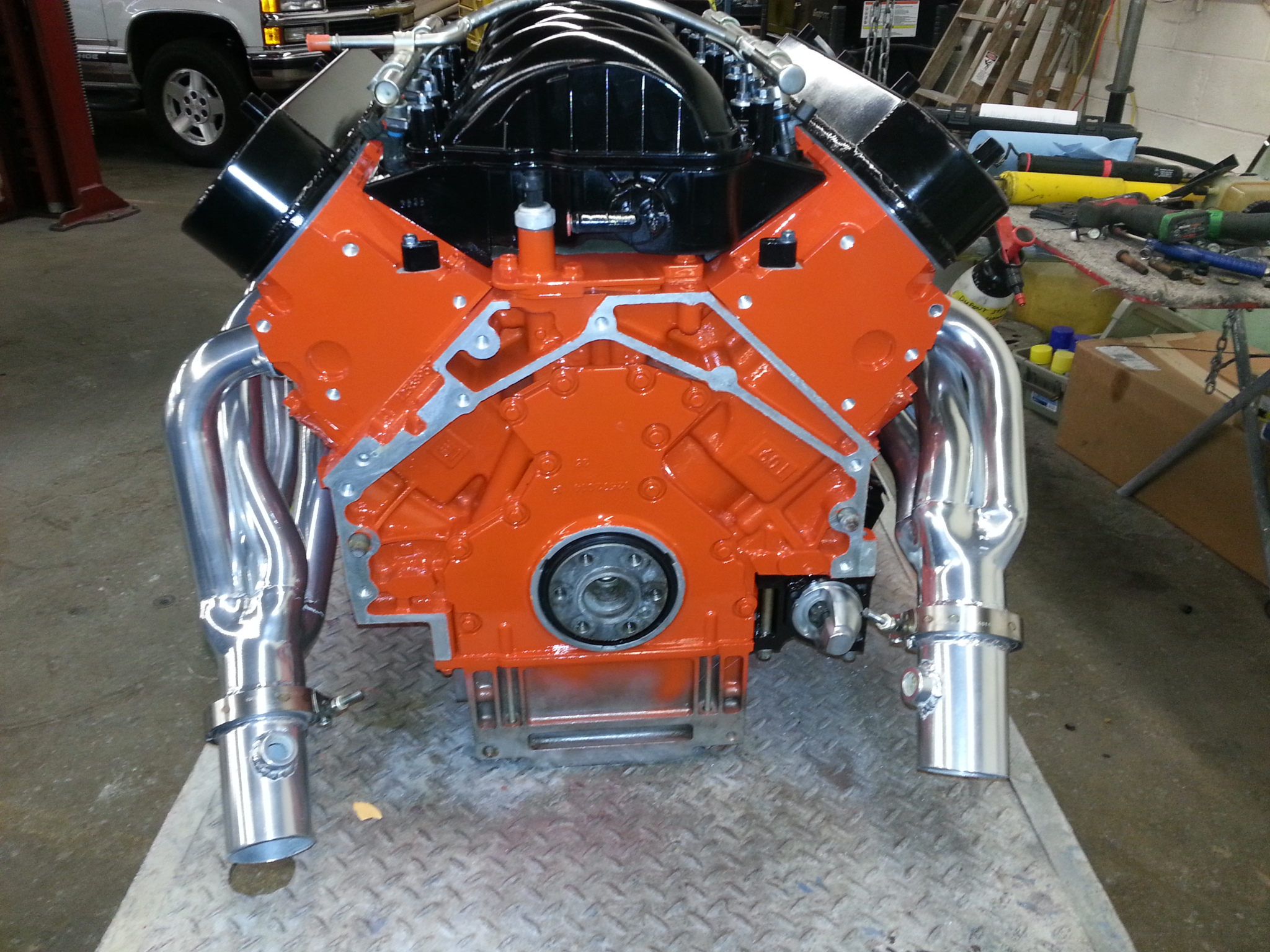

: Headers installed

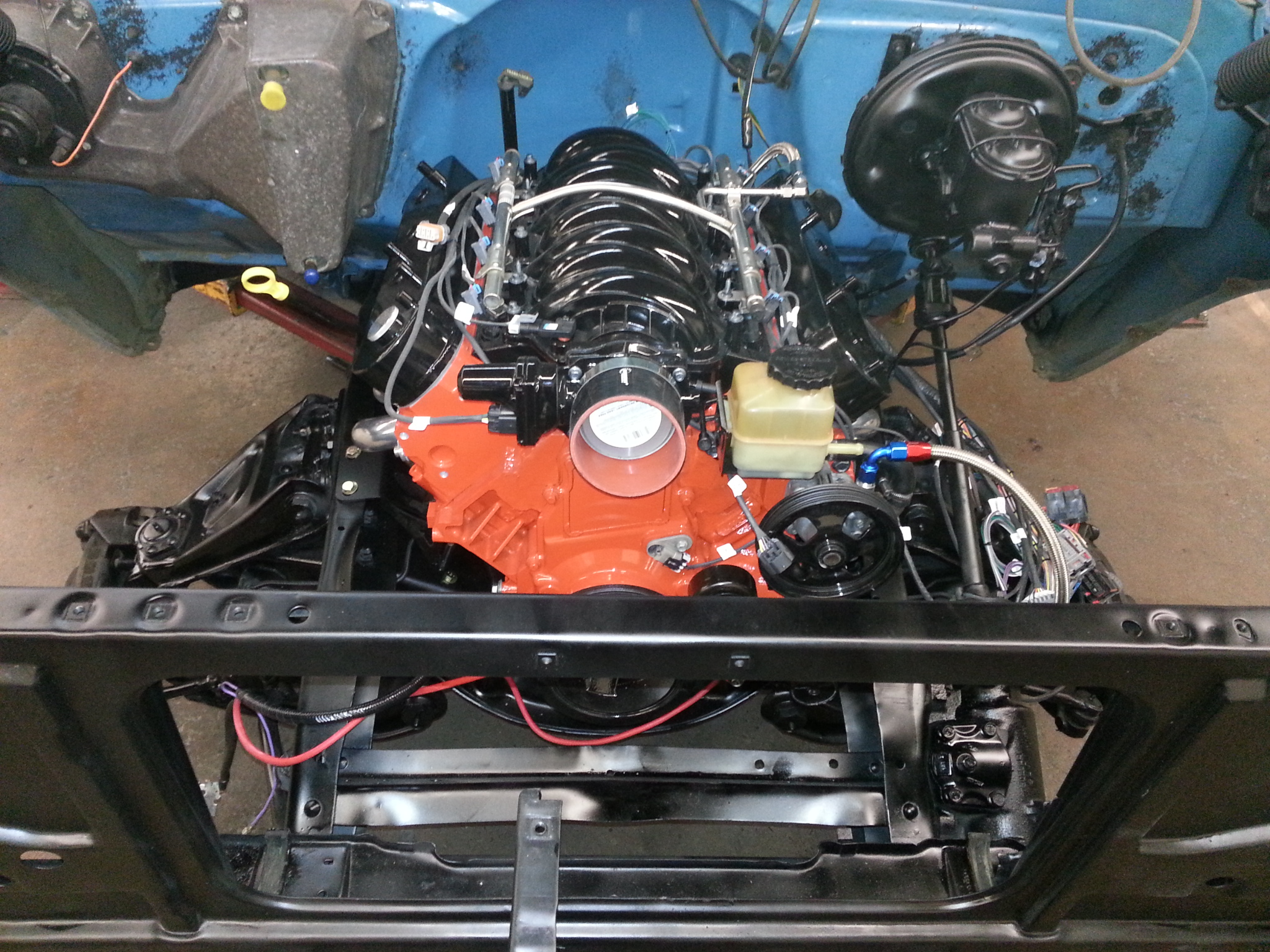

: hooking up systems

: home at last

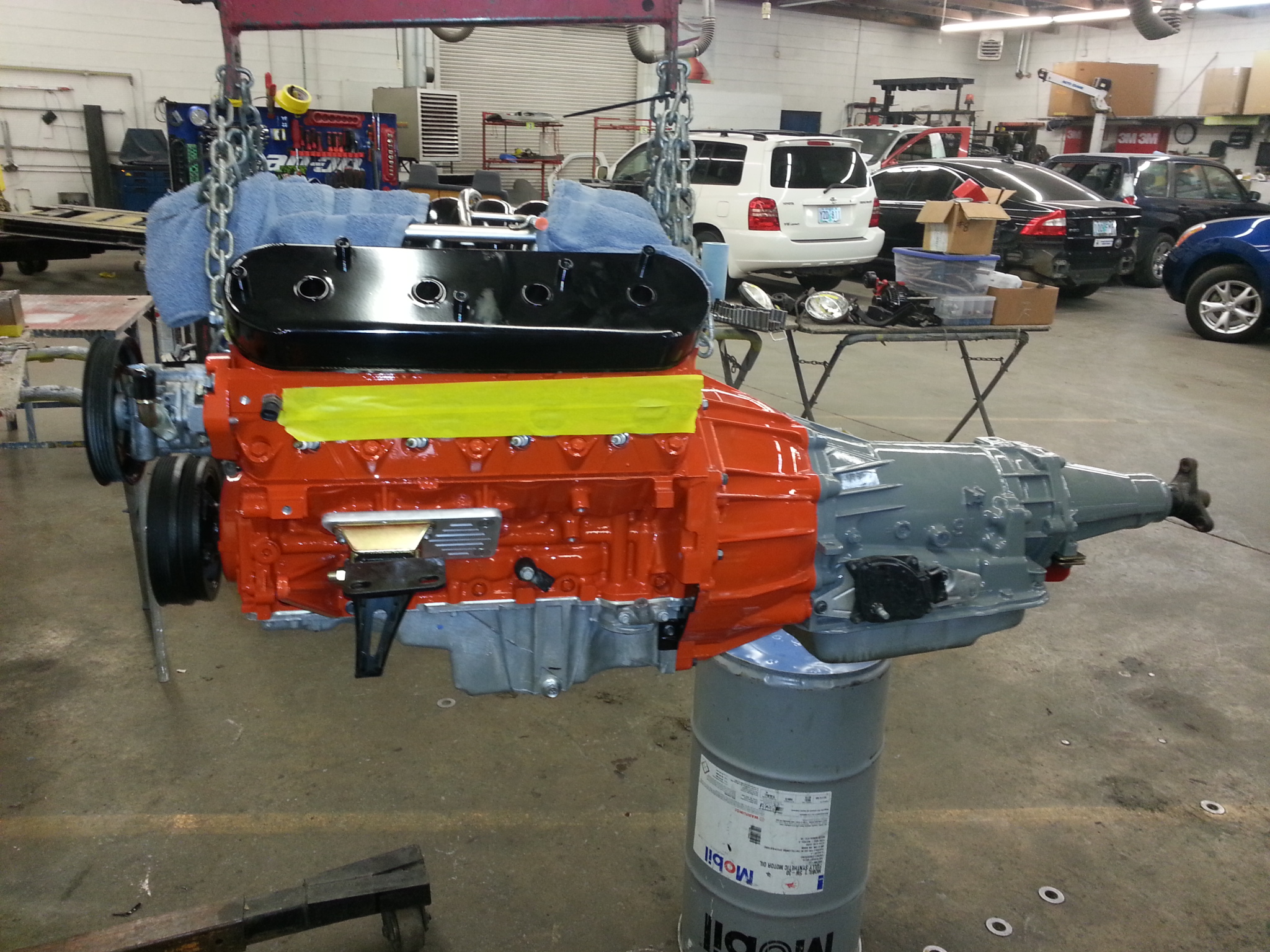

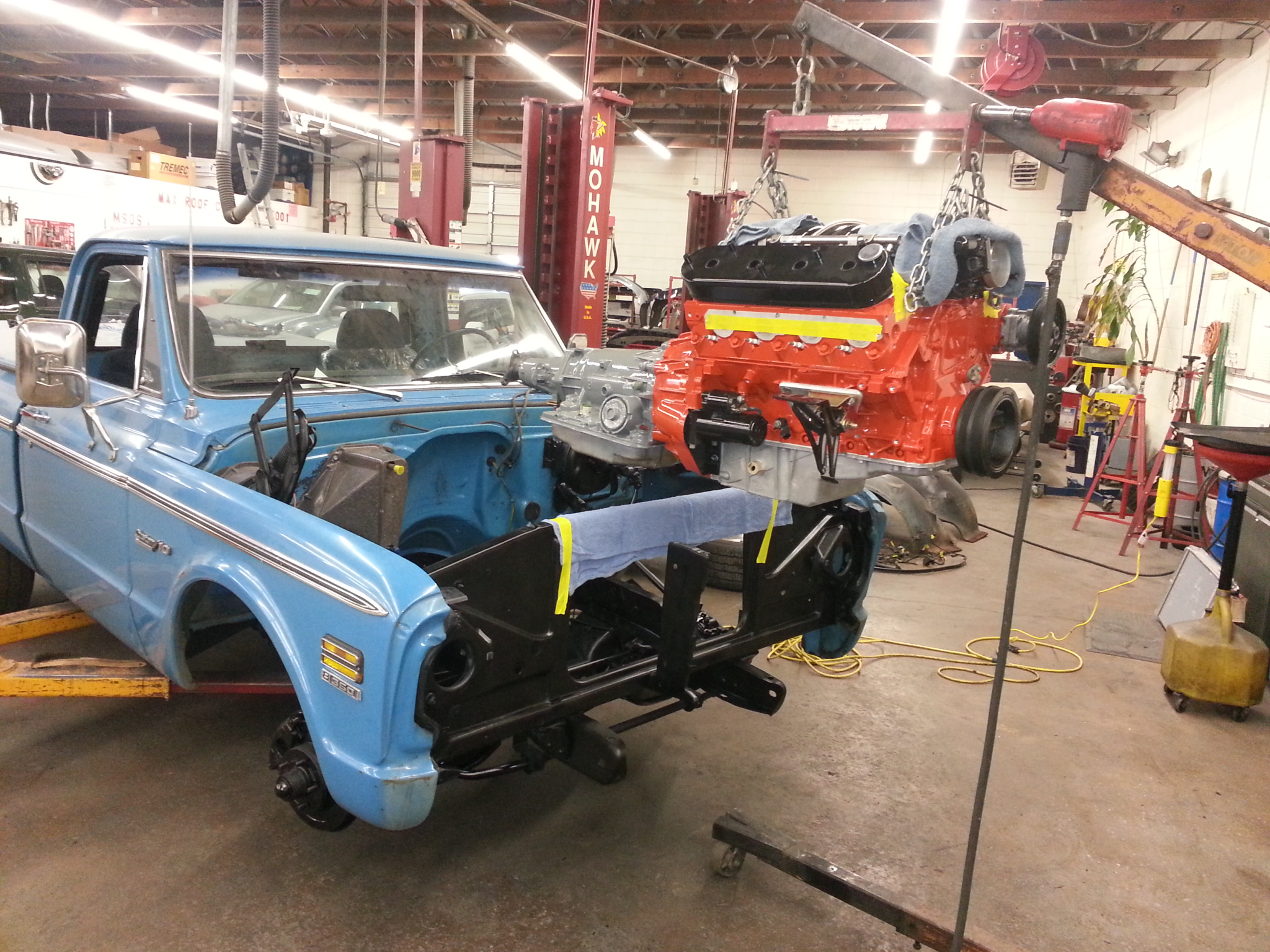

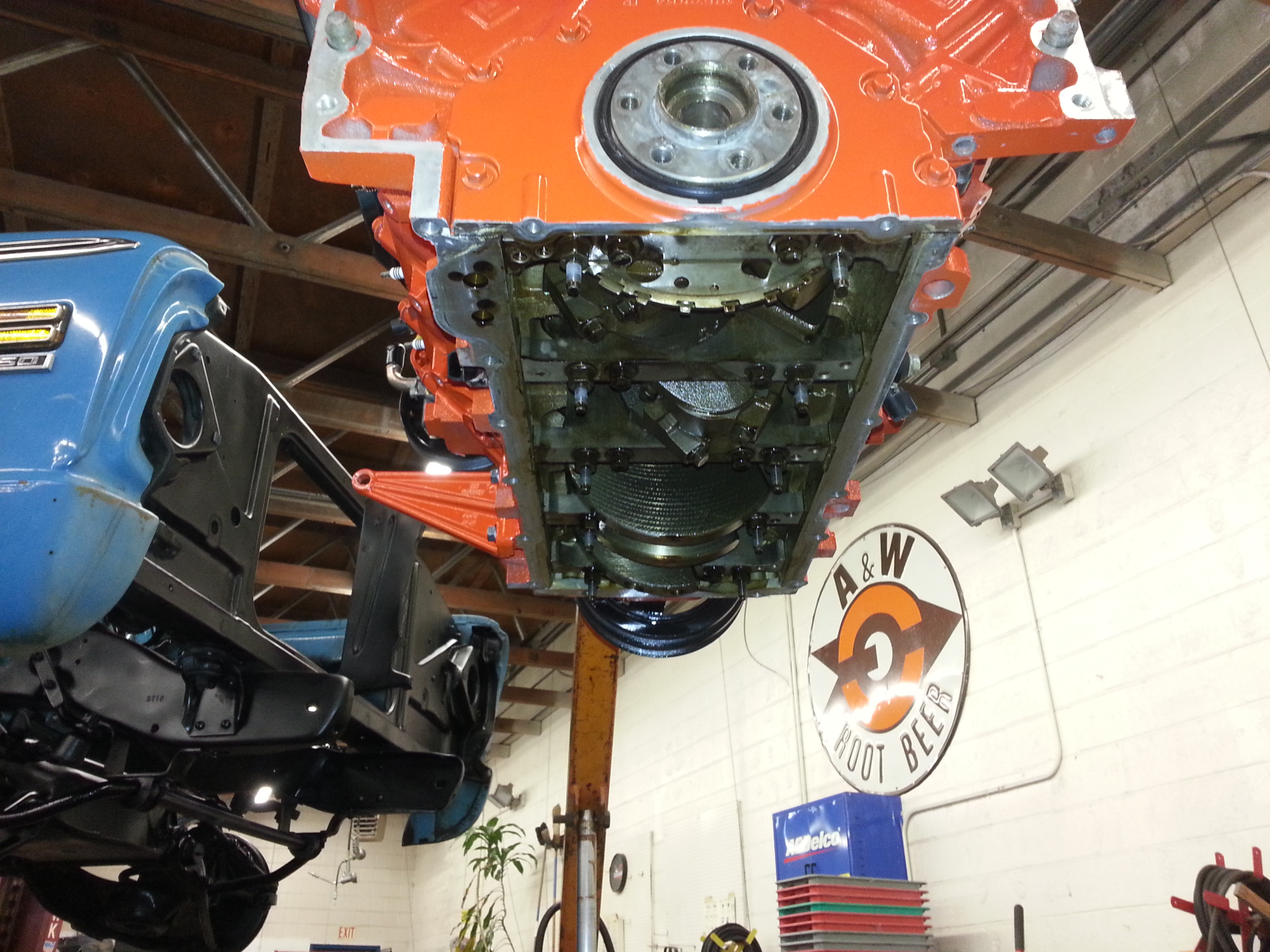

: Heading in for the first time

: Chevy orange is timeless

: Reassembly after painting

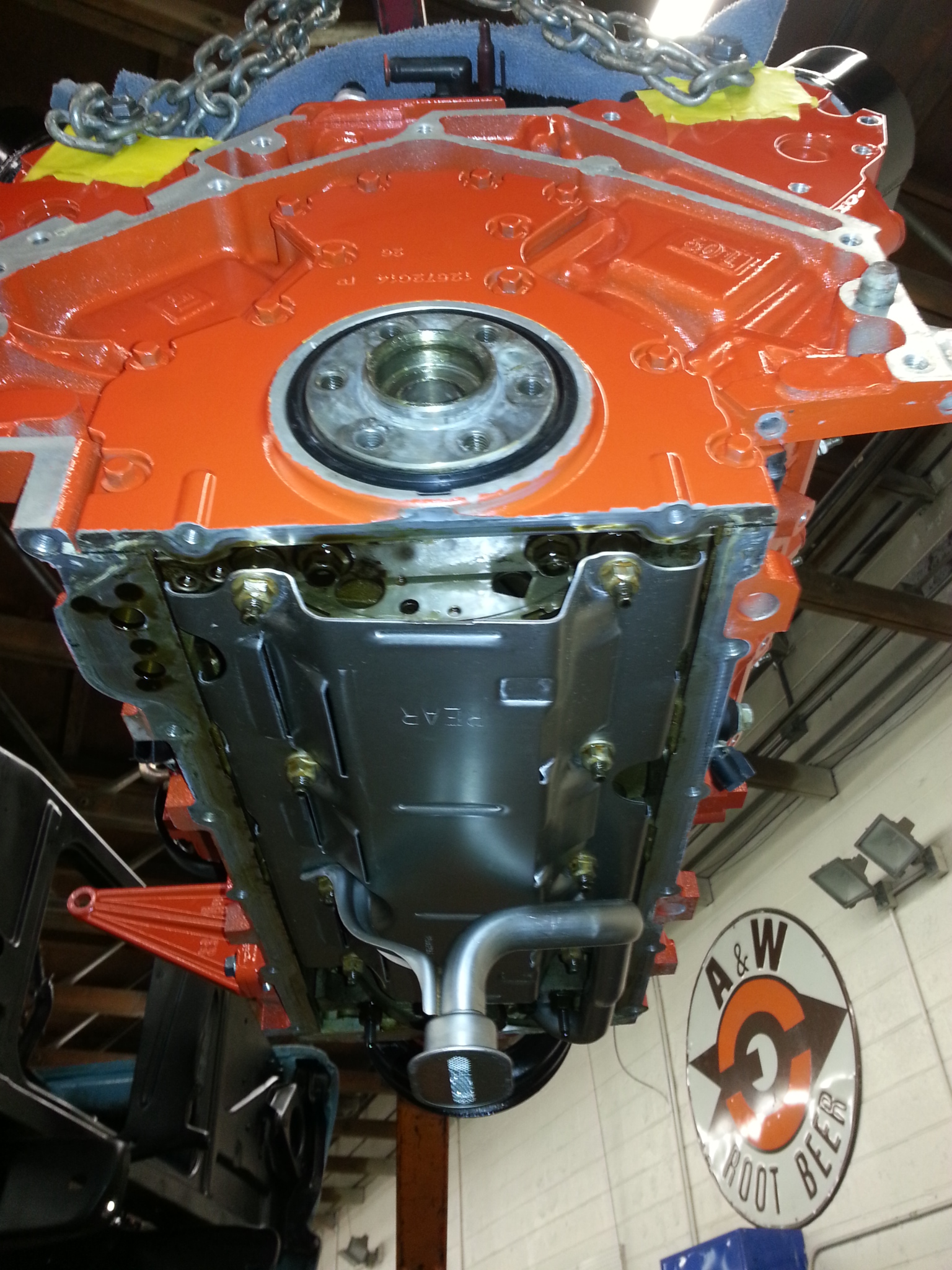

: new windage tray and pickup for rear sump

: Very nice stock internals

: Everything checks out, time for a new f body style pan

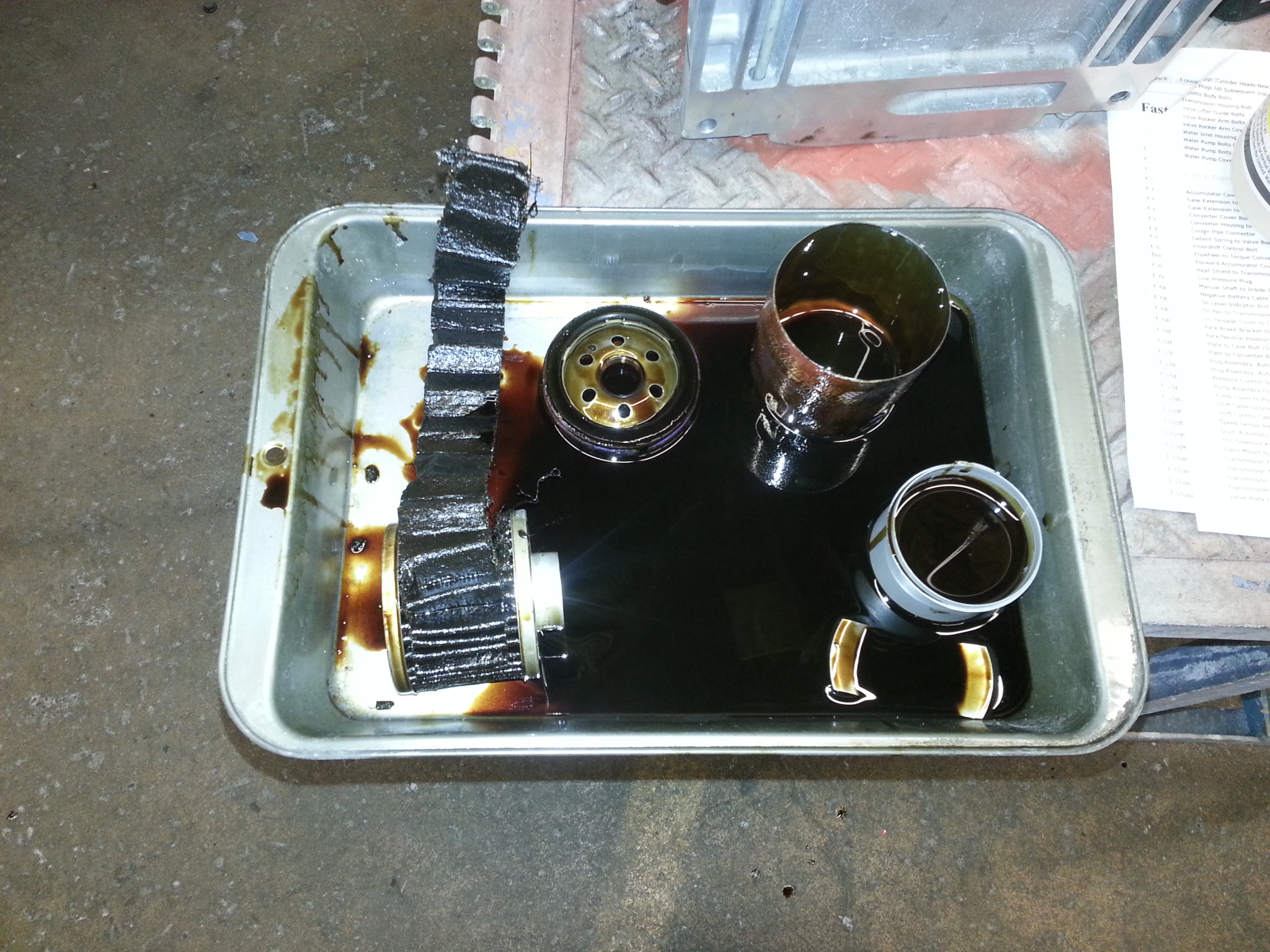

: always check the oil filter on any used motor before swapping it in

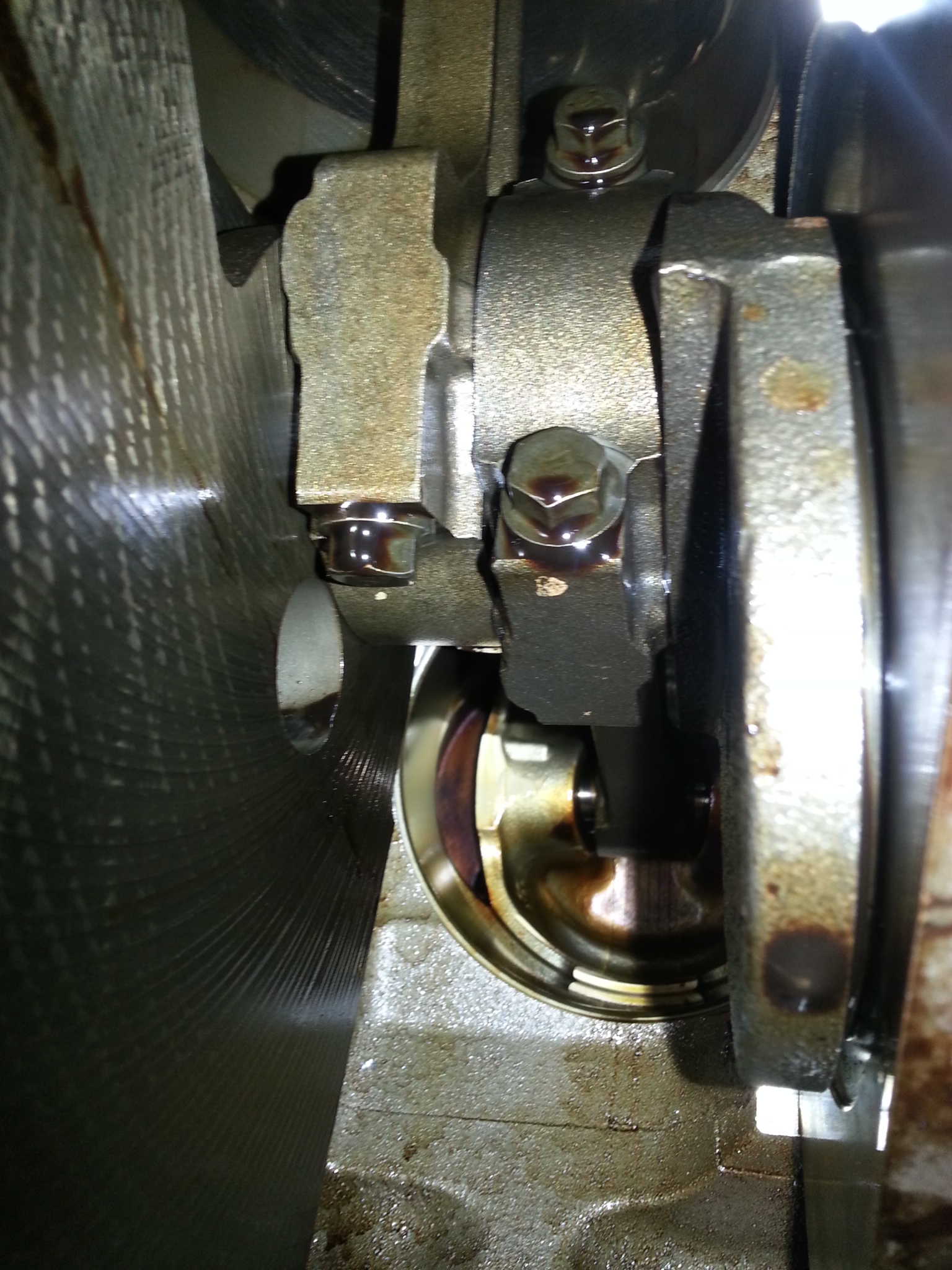

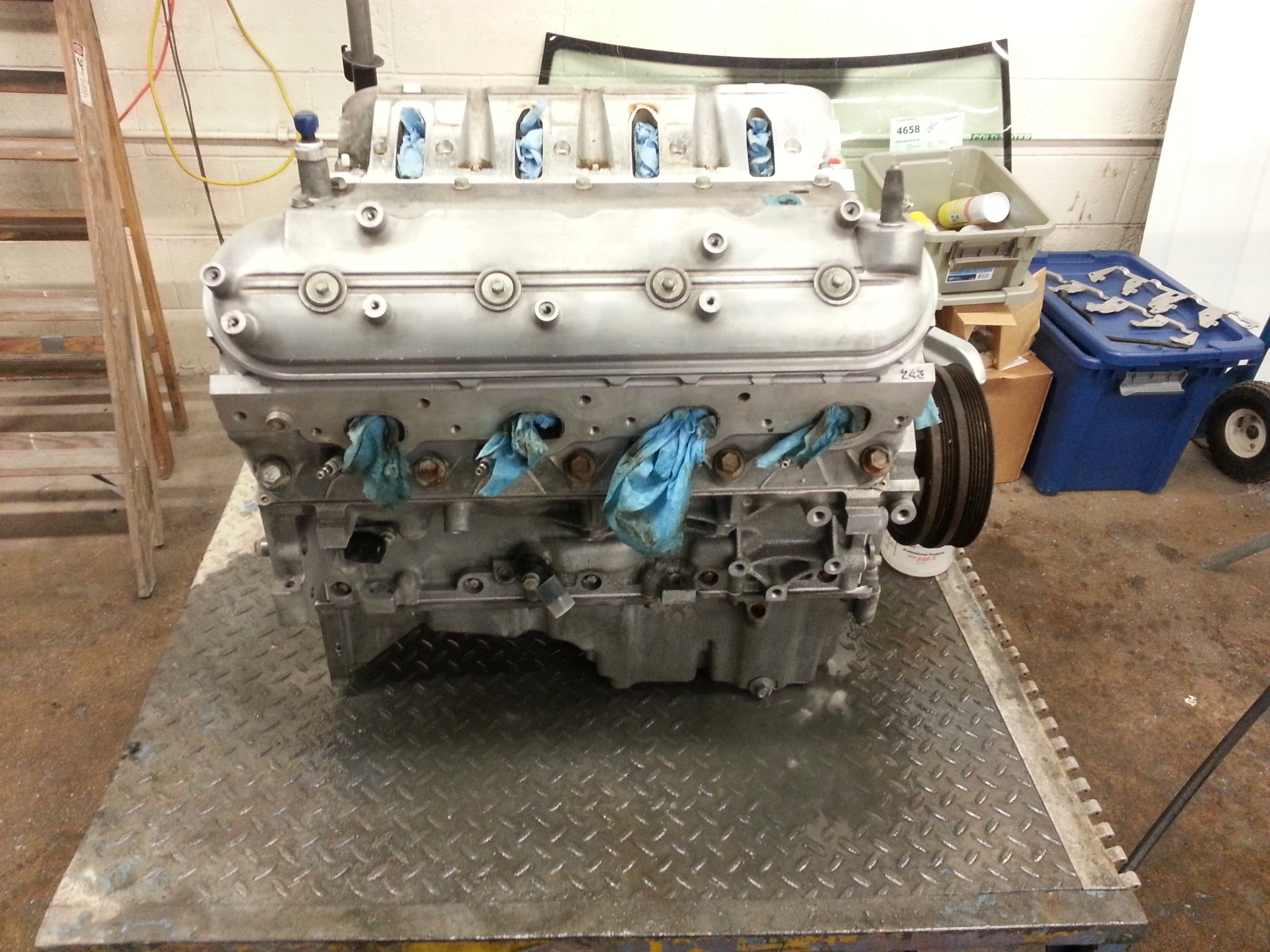

: checking out the bottom end of this used LS2

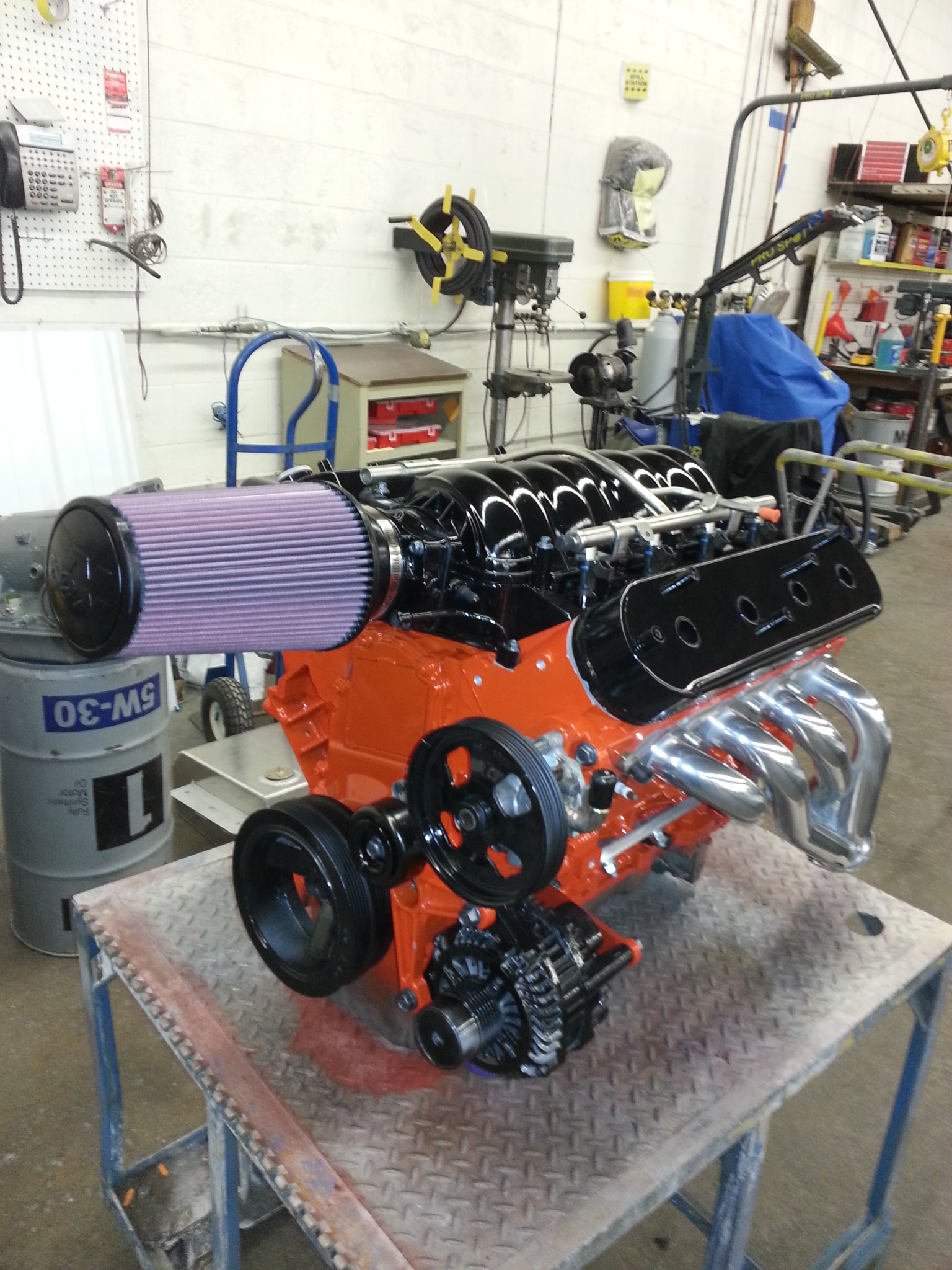

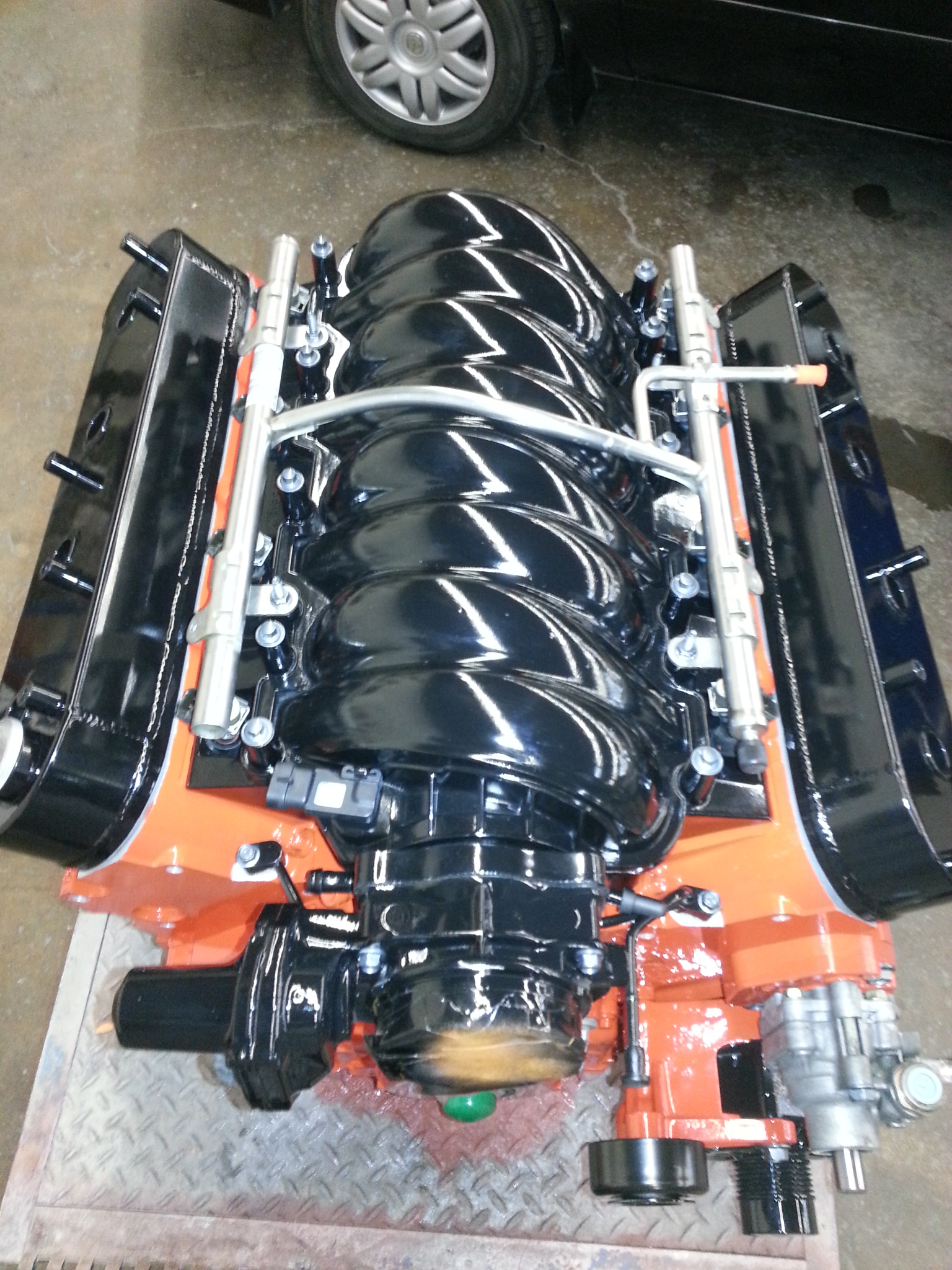

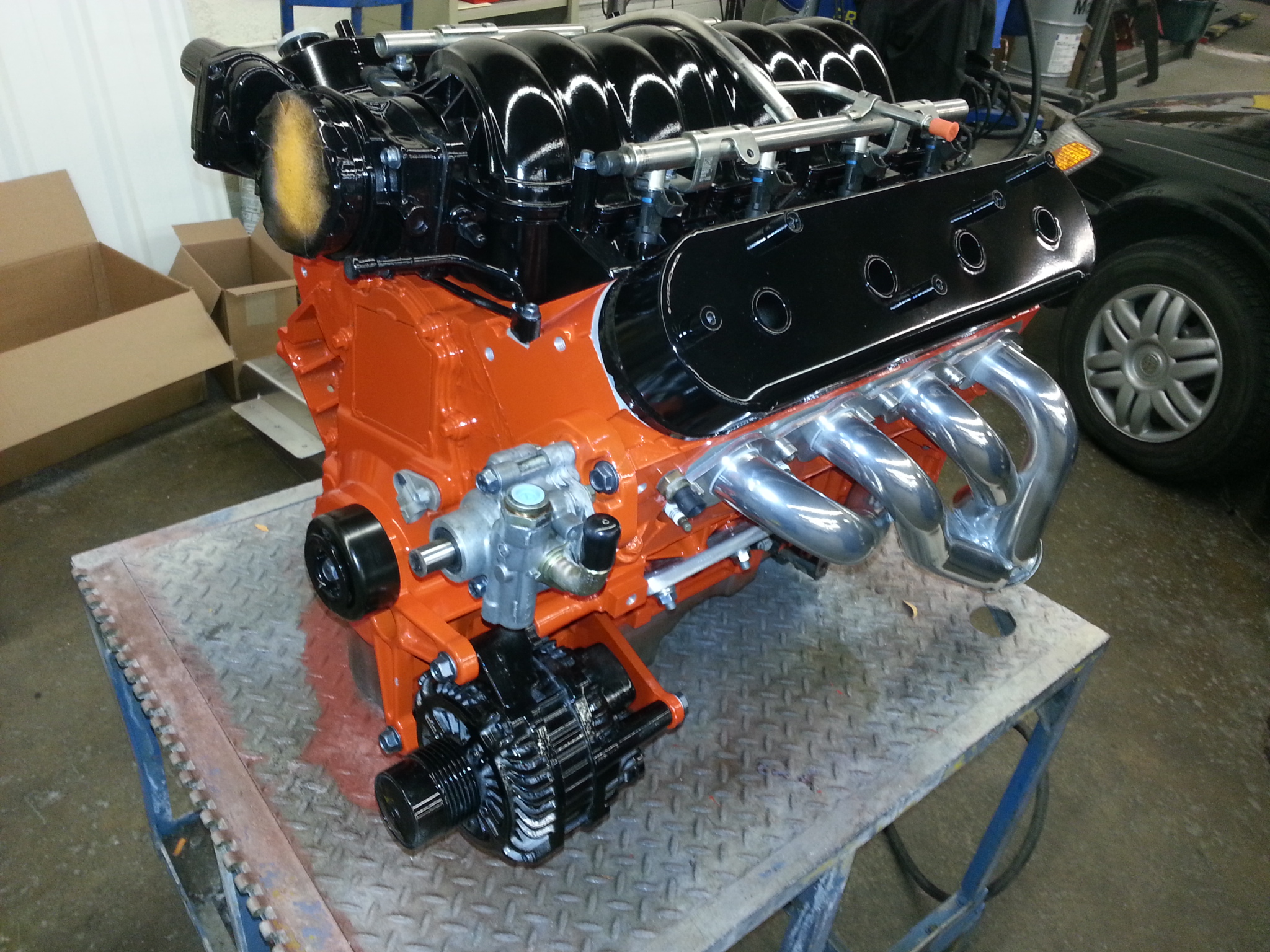

: nice looking engine

: back view. It is all detailed to perfection

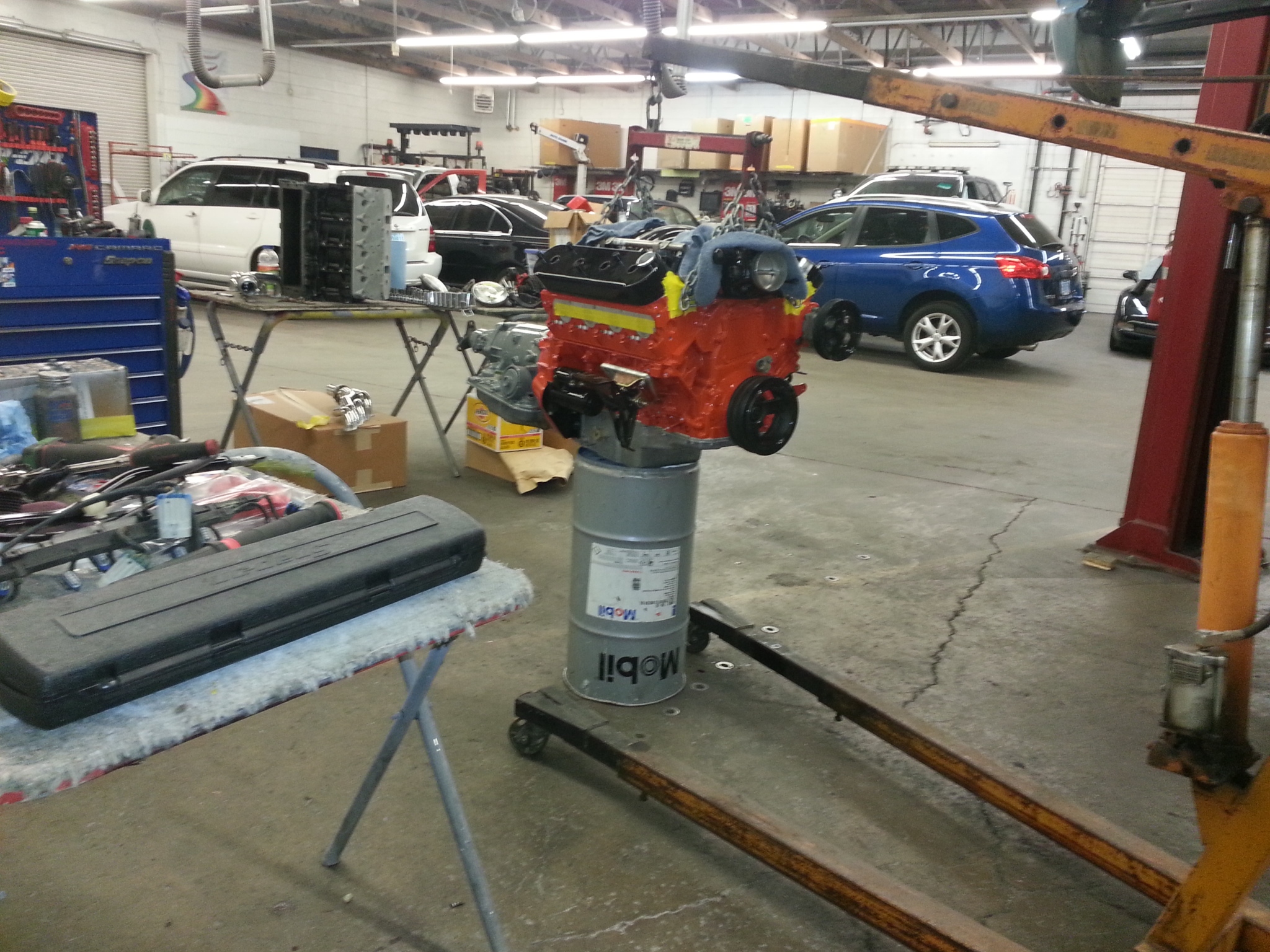

: getting accesory drive installed

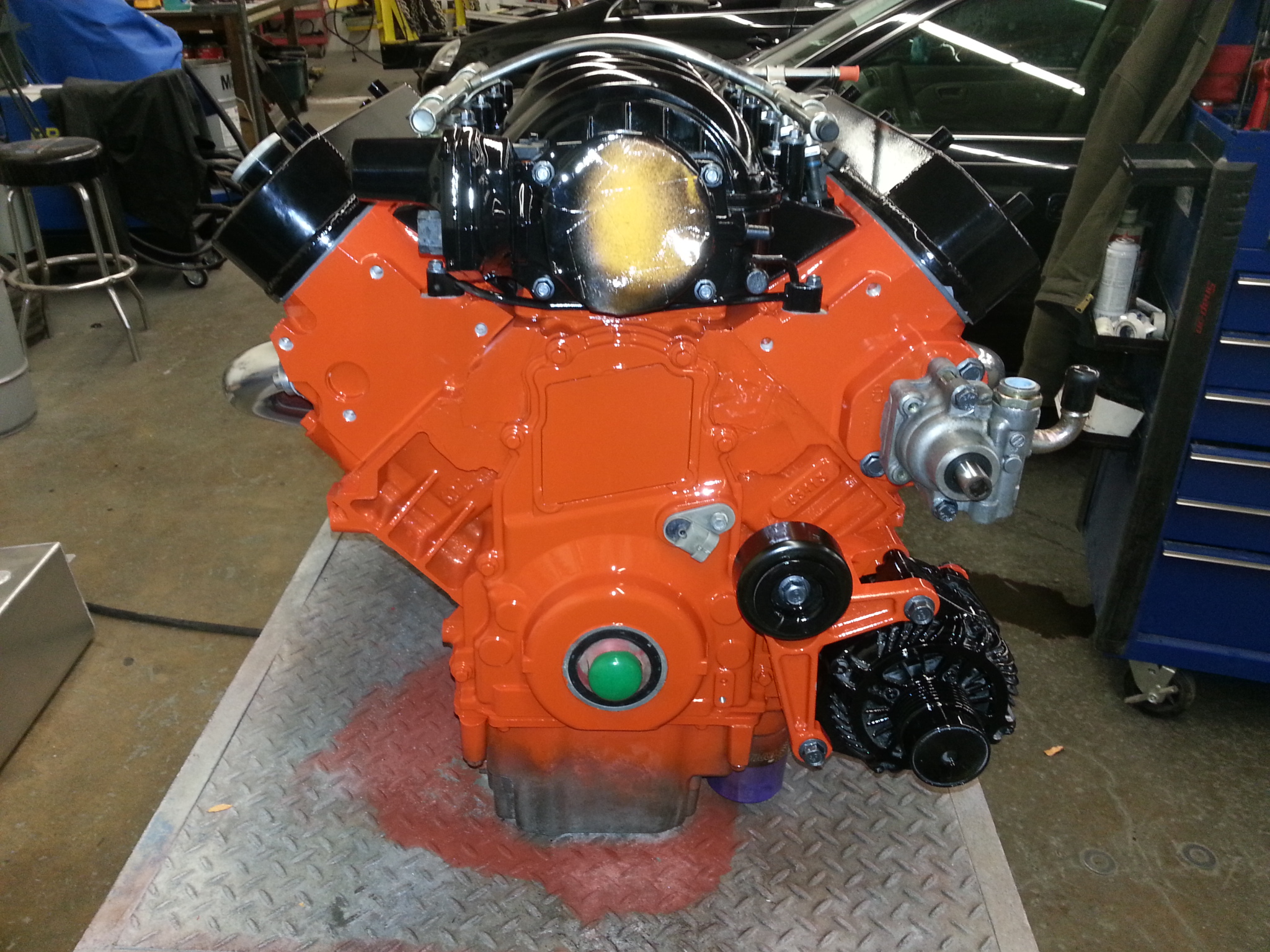

: front view of new look

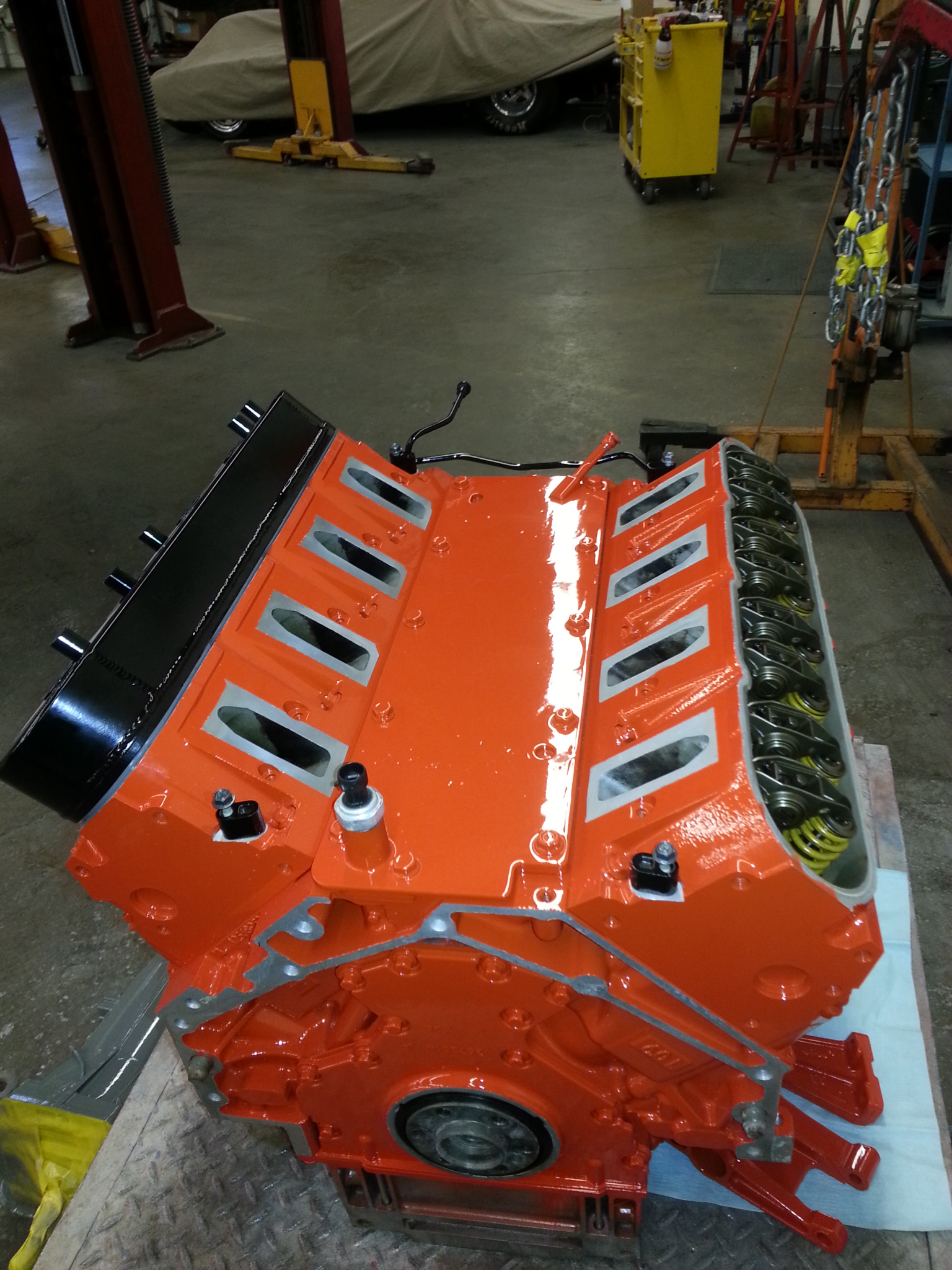

: the valley is looking much better

: Painting all the hardware

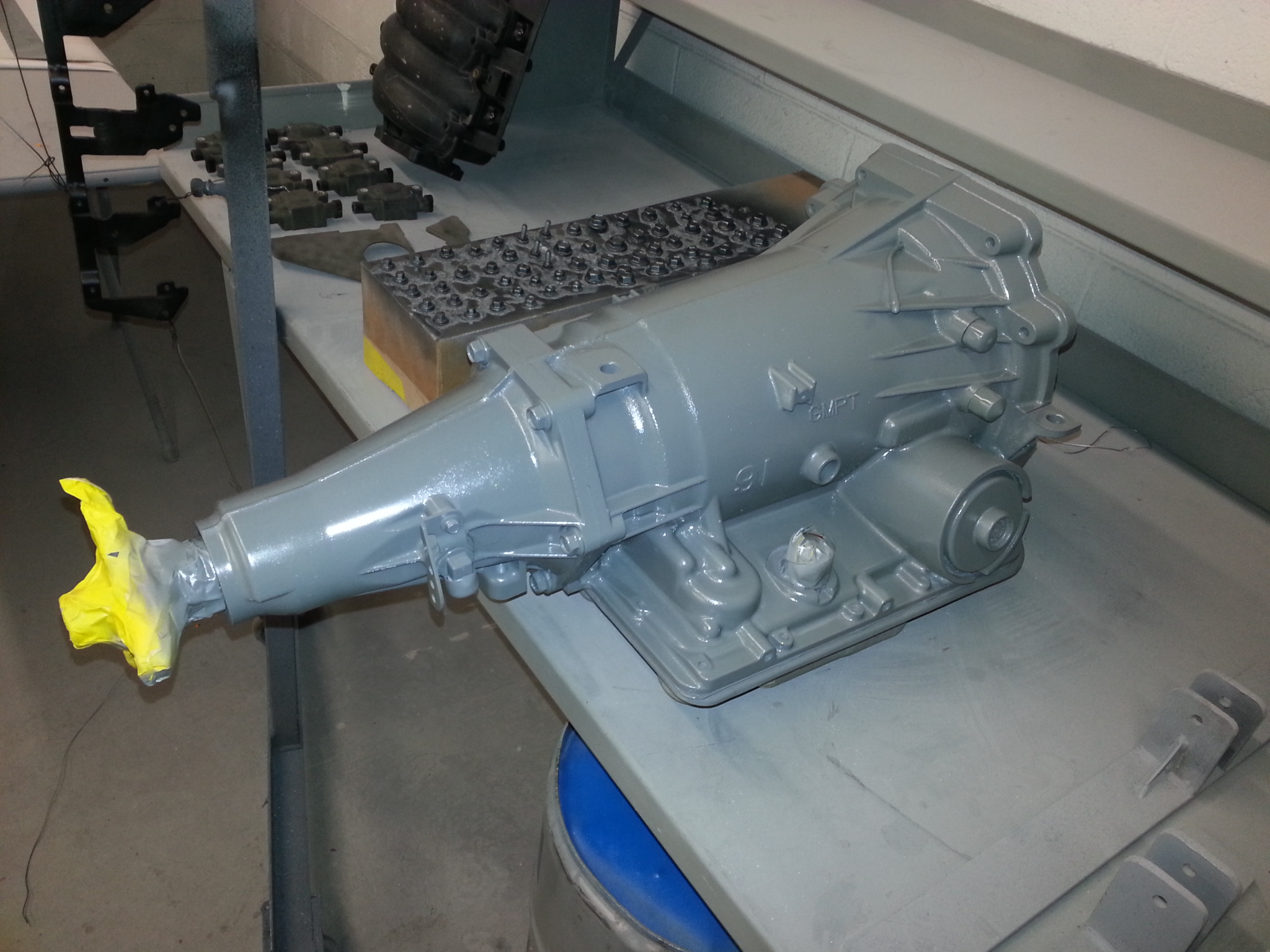

: Painted 4l65e trans

: factory chev orange standard in 72′

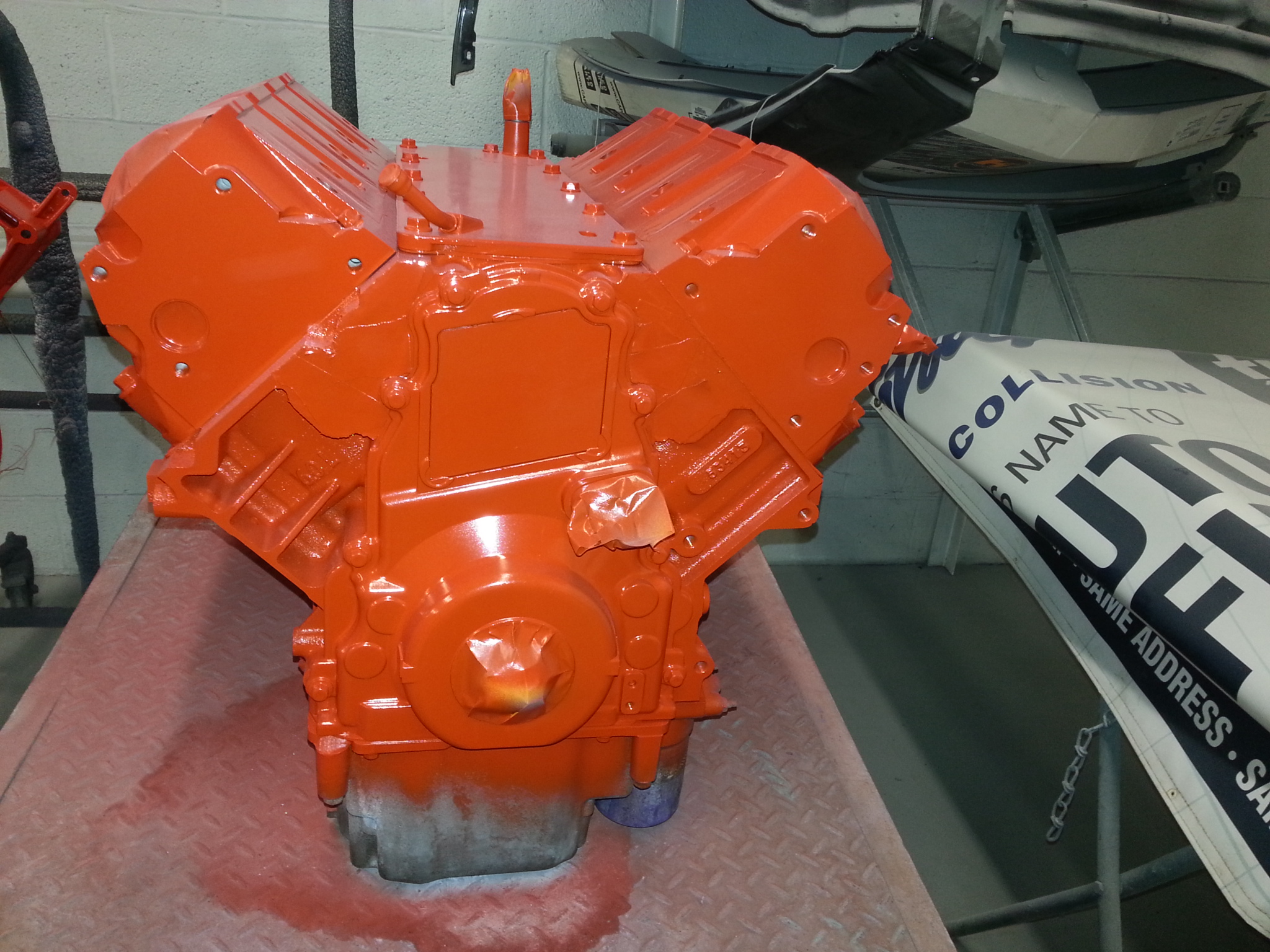

: priming the valley

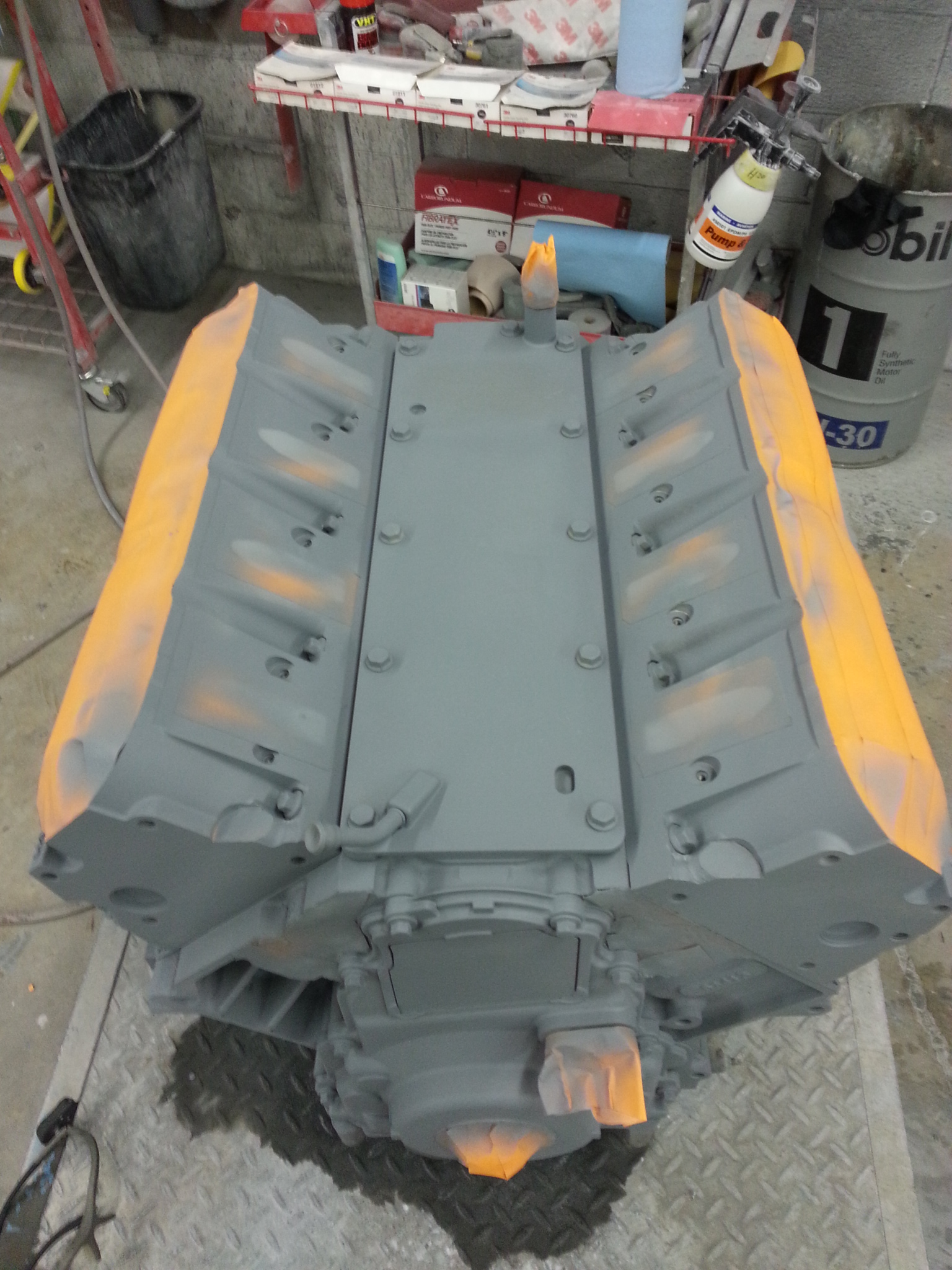

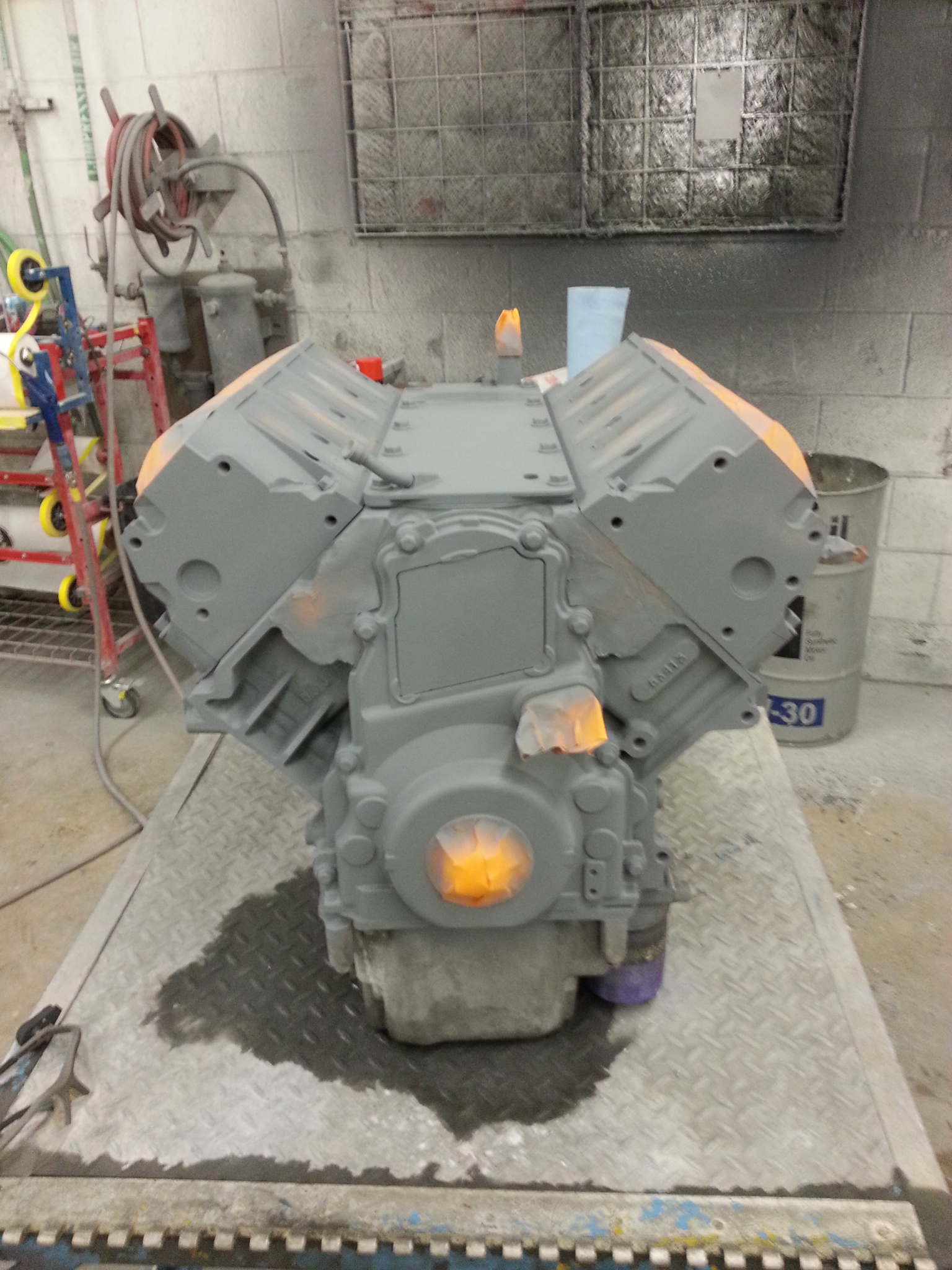

: all primered up

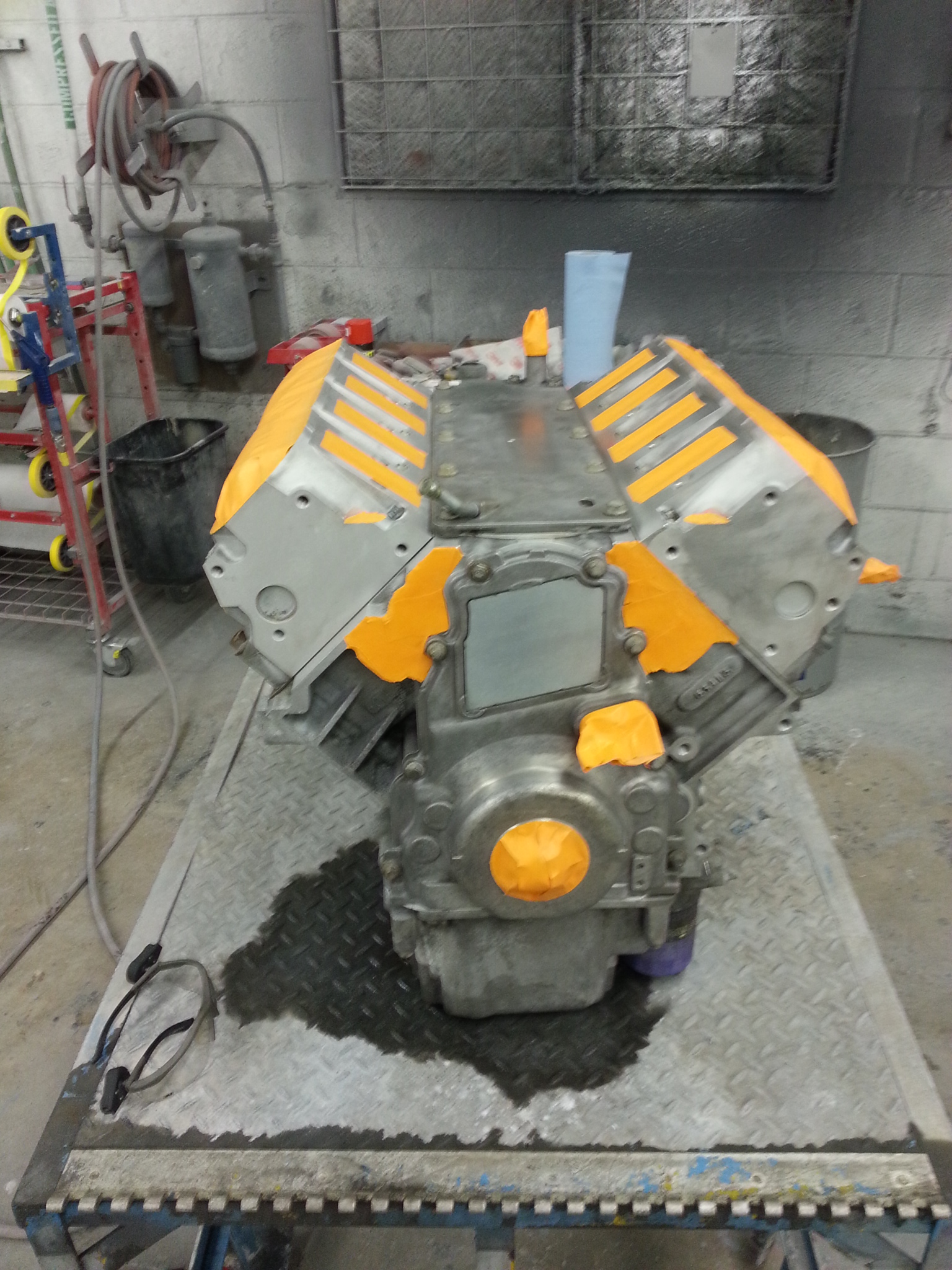

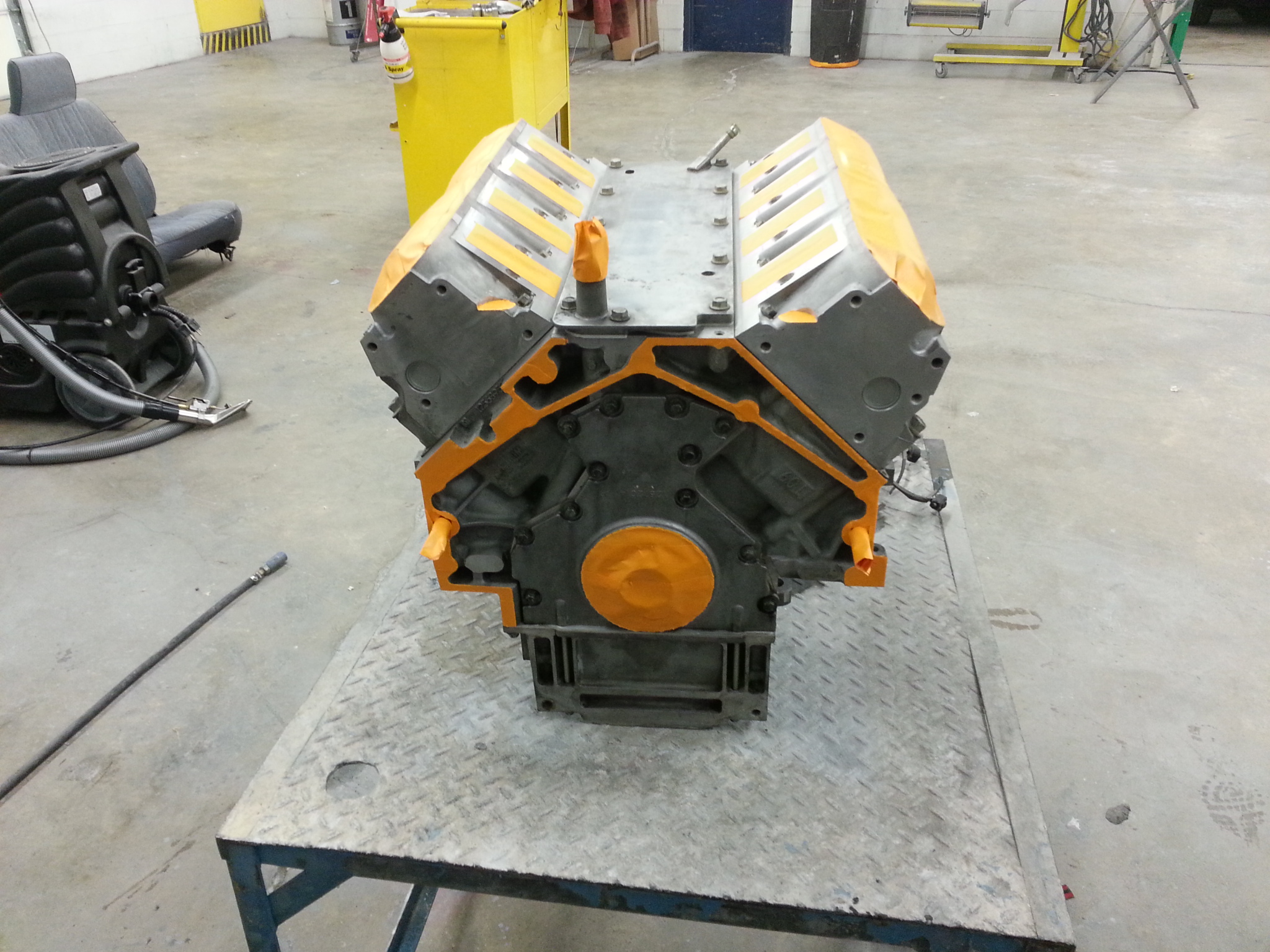

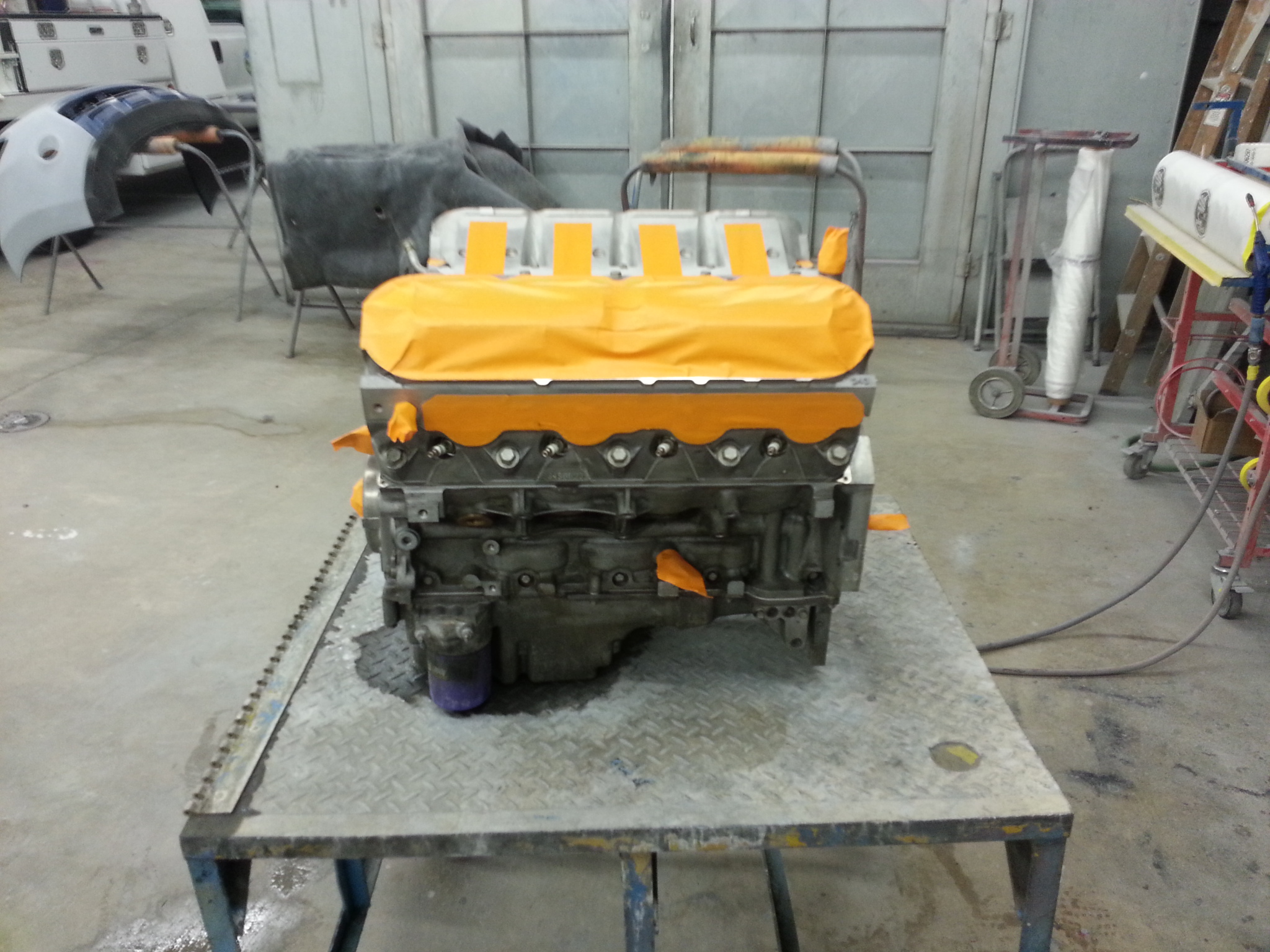

: masking all the details

: Paint ready. The aluminum is just too stained to leave raw

: masking

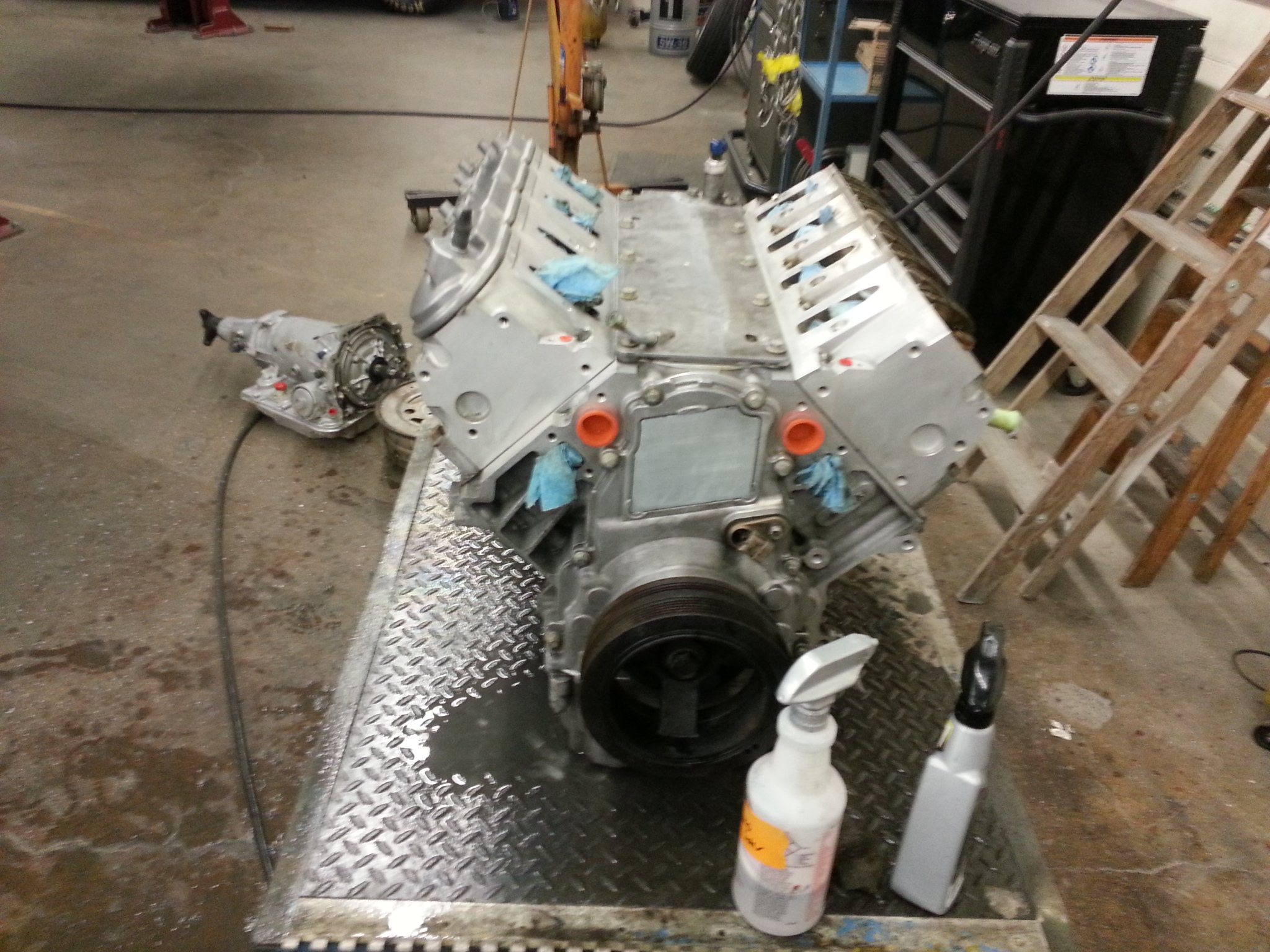

: cleaning and scrubbing and cleaning some more

: naking progress

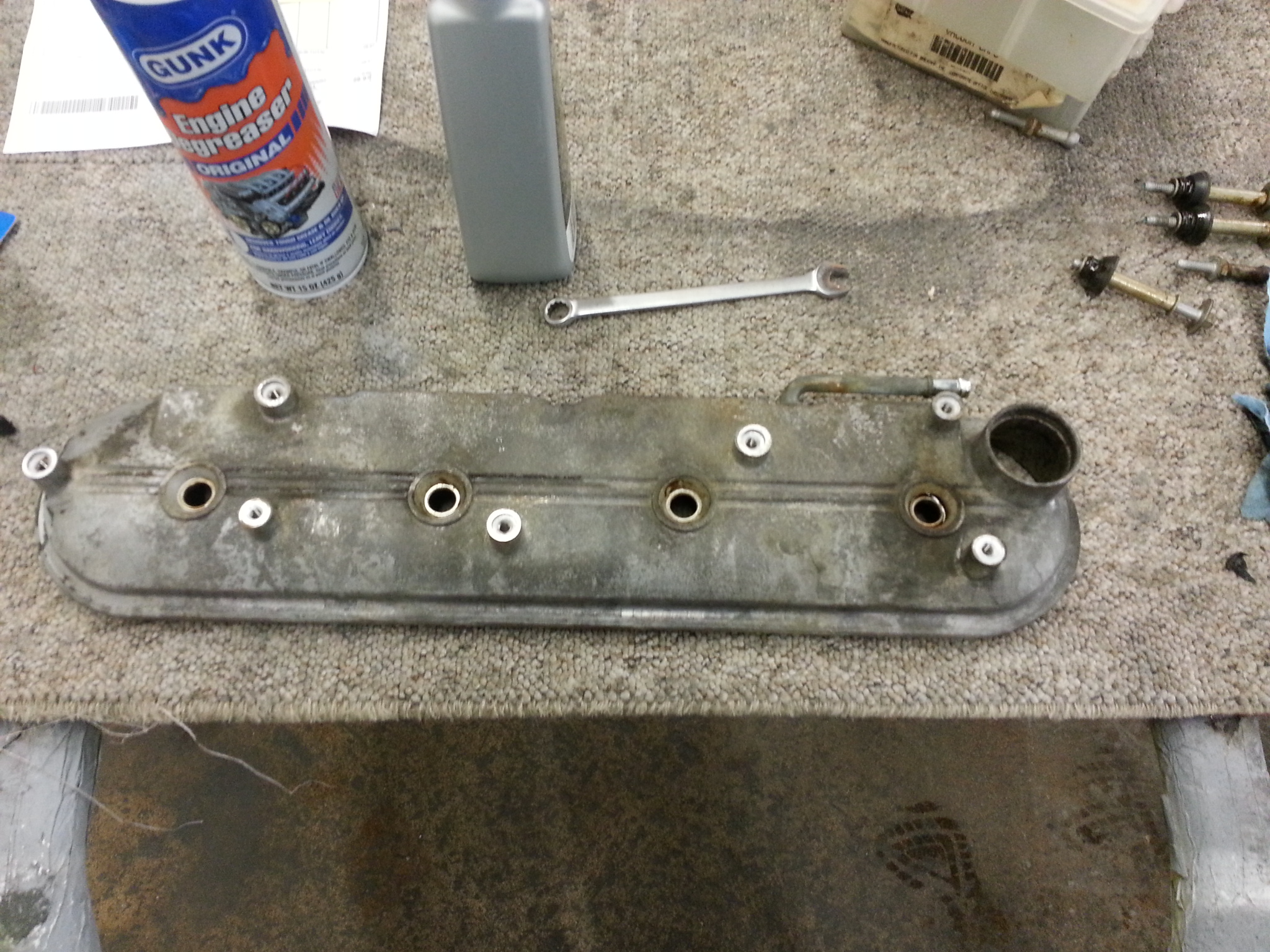

: evrything aluminum looked like this valve cover

: very dirty in the begining

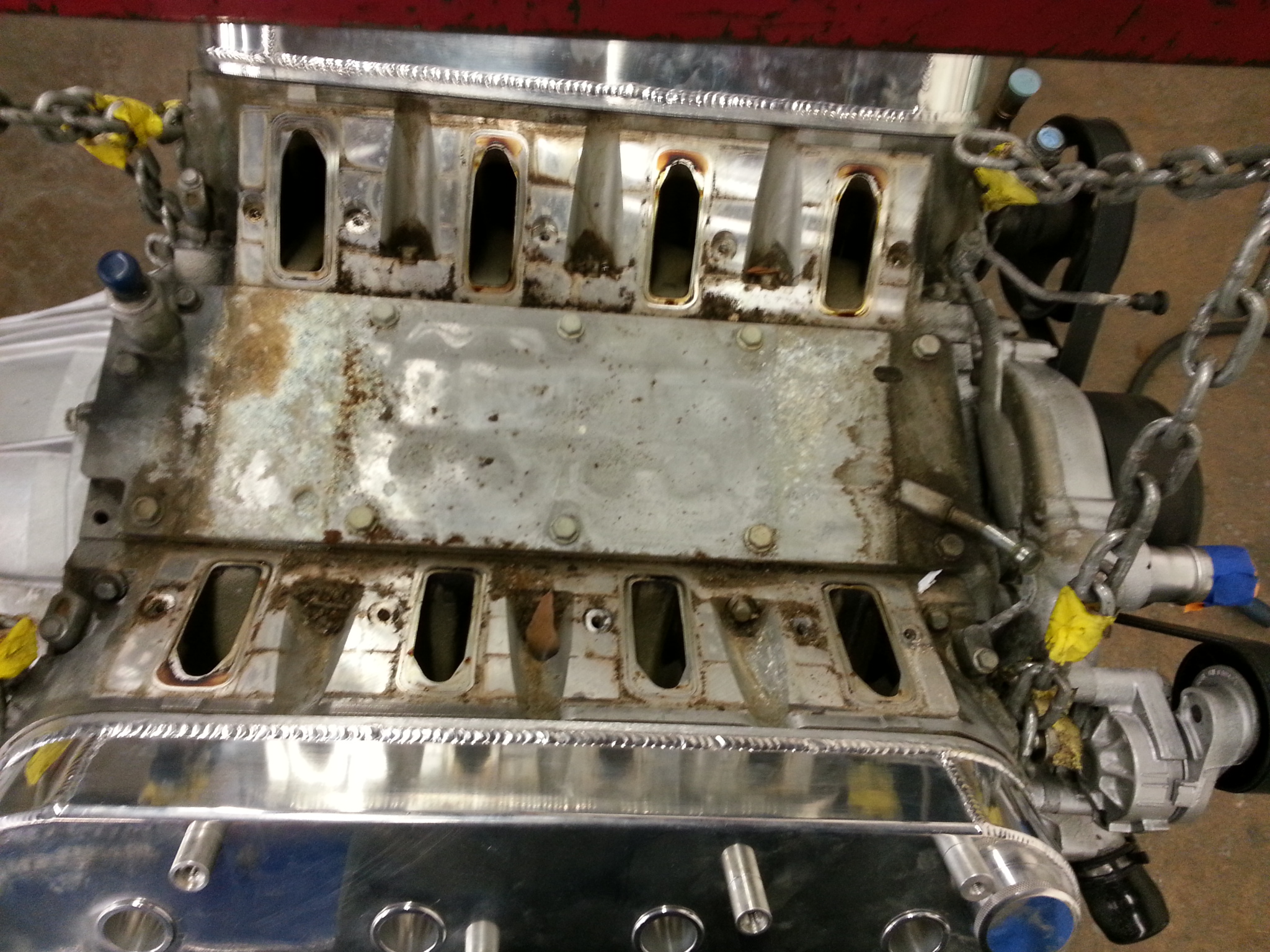

: the motor came in looking pretty unfavorable

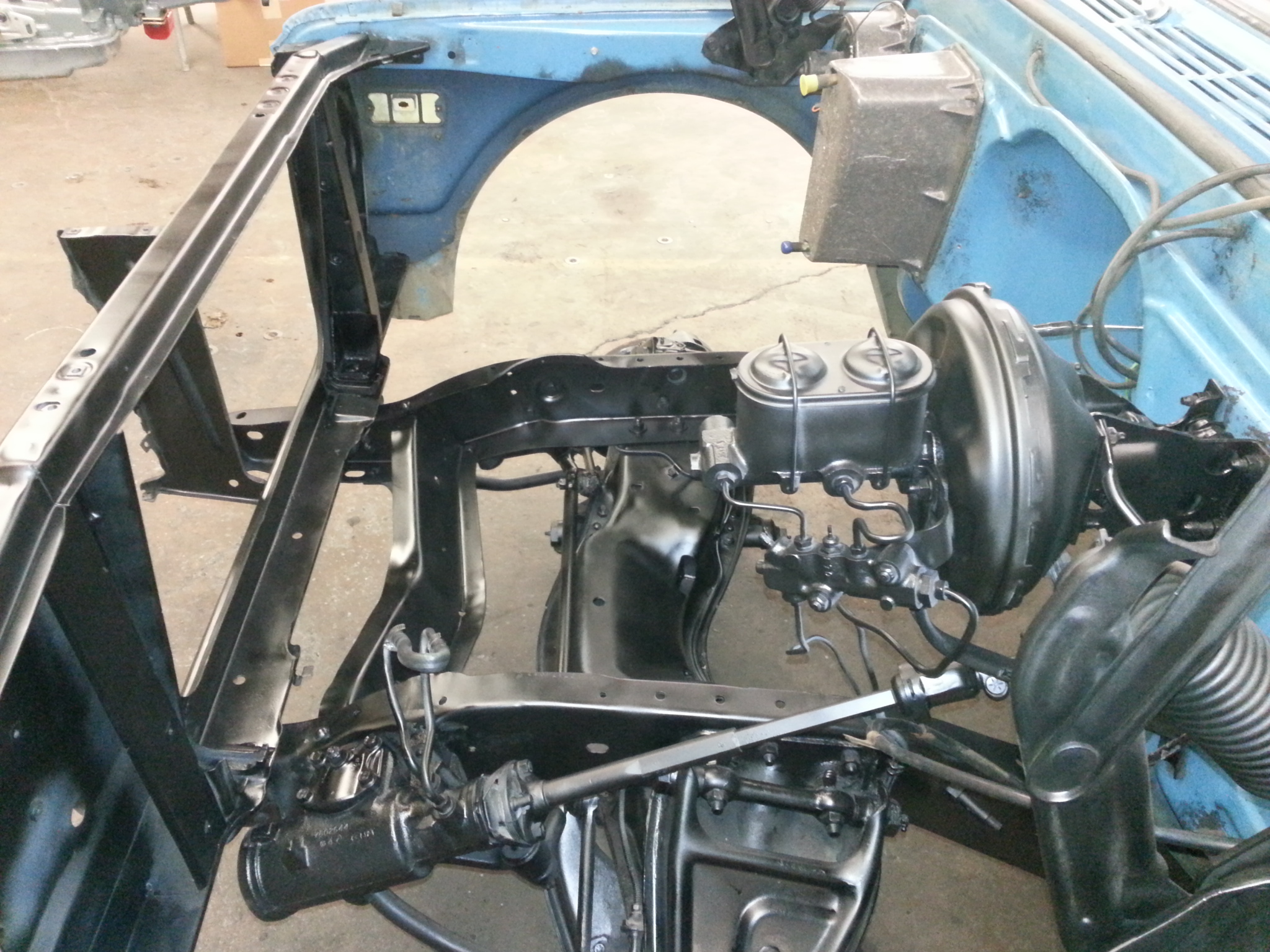

: engine bay painted

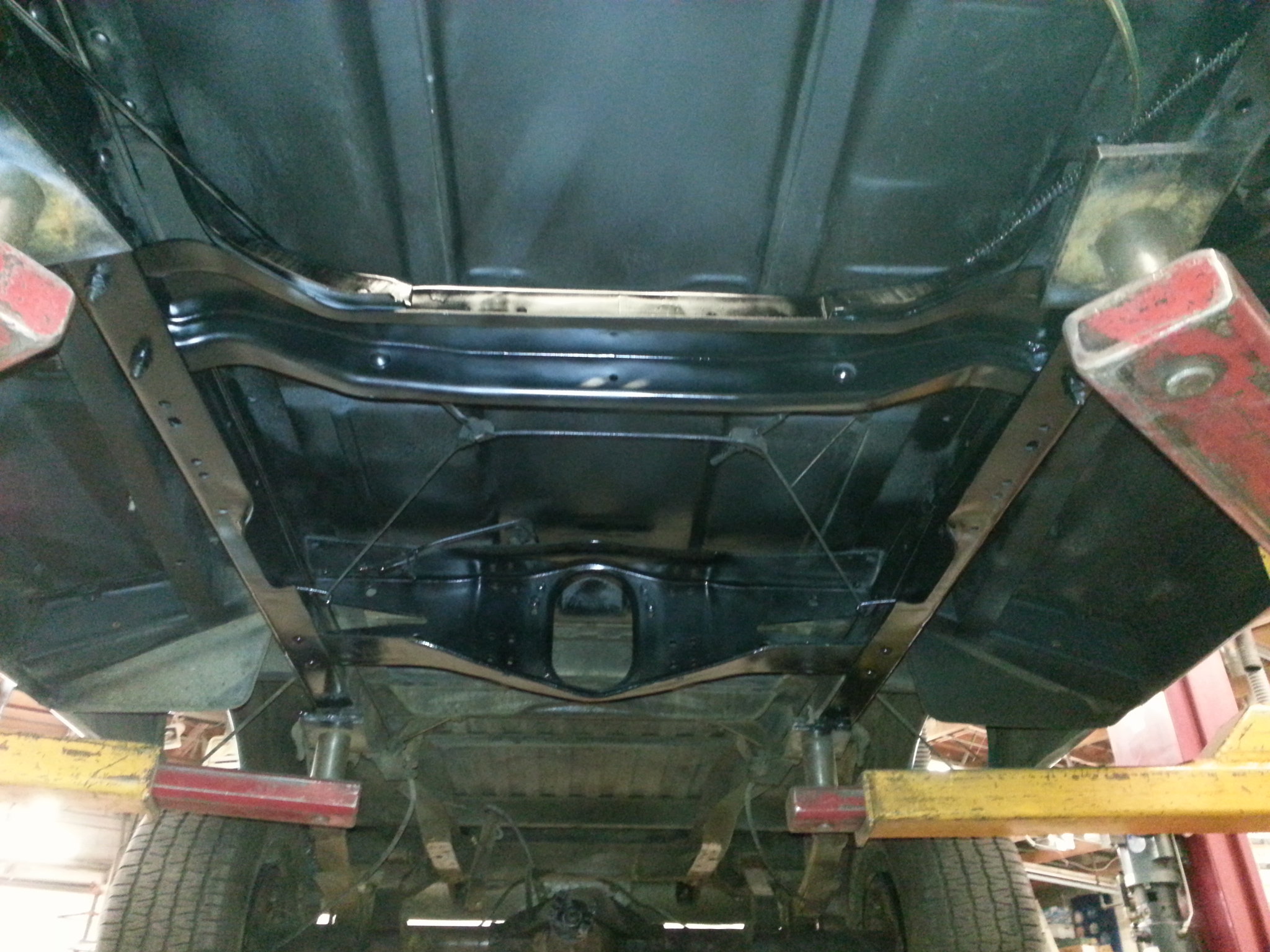

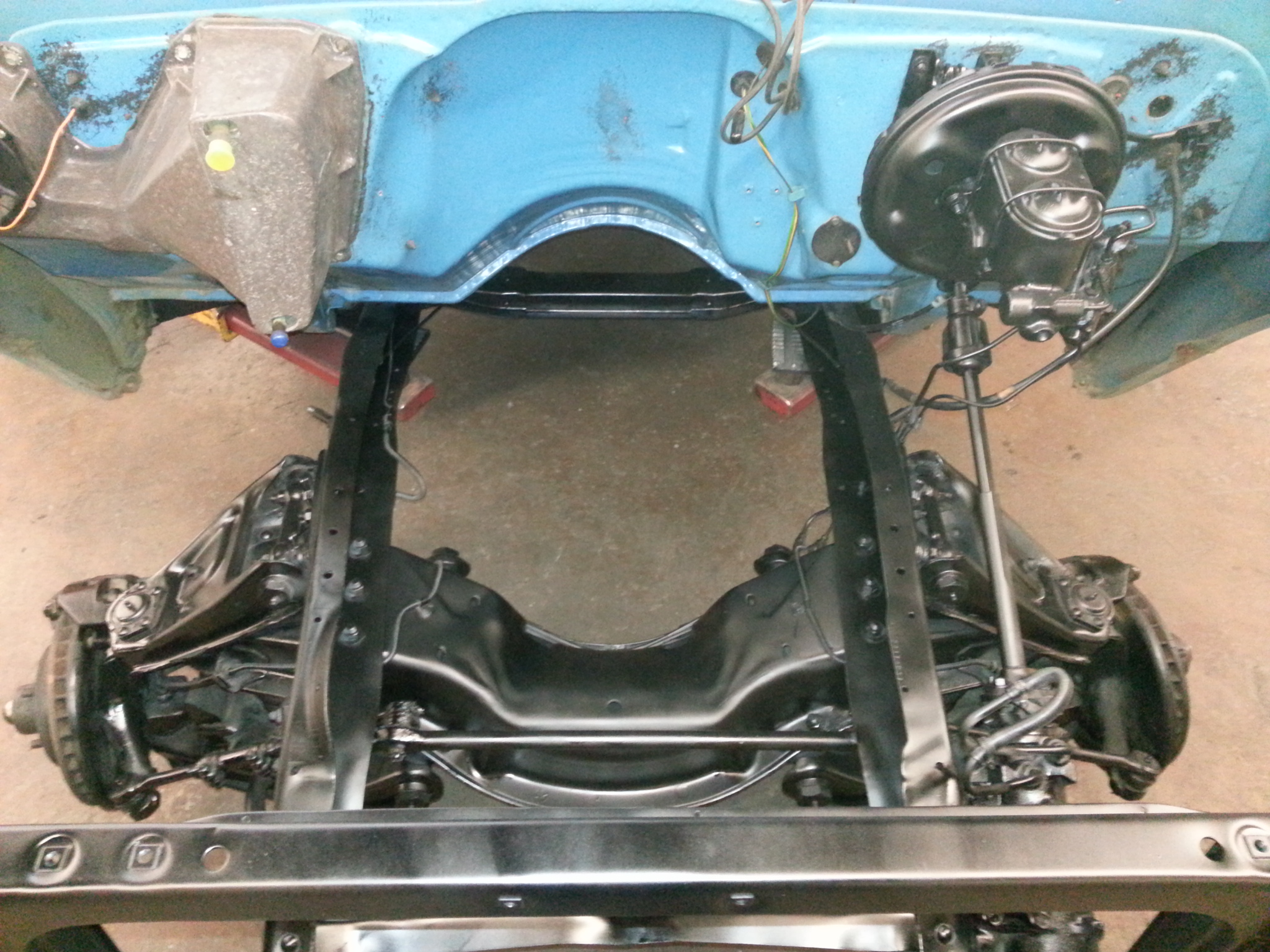

: painted back to the driveshaft hoop

: pretty nice for a daily driver

: it wants a new heart

: painted and ready for reassembly

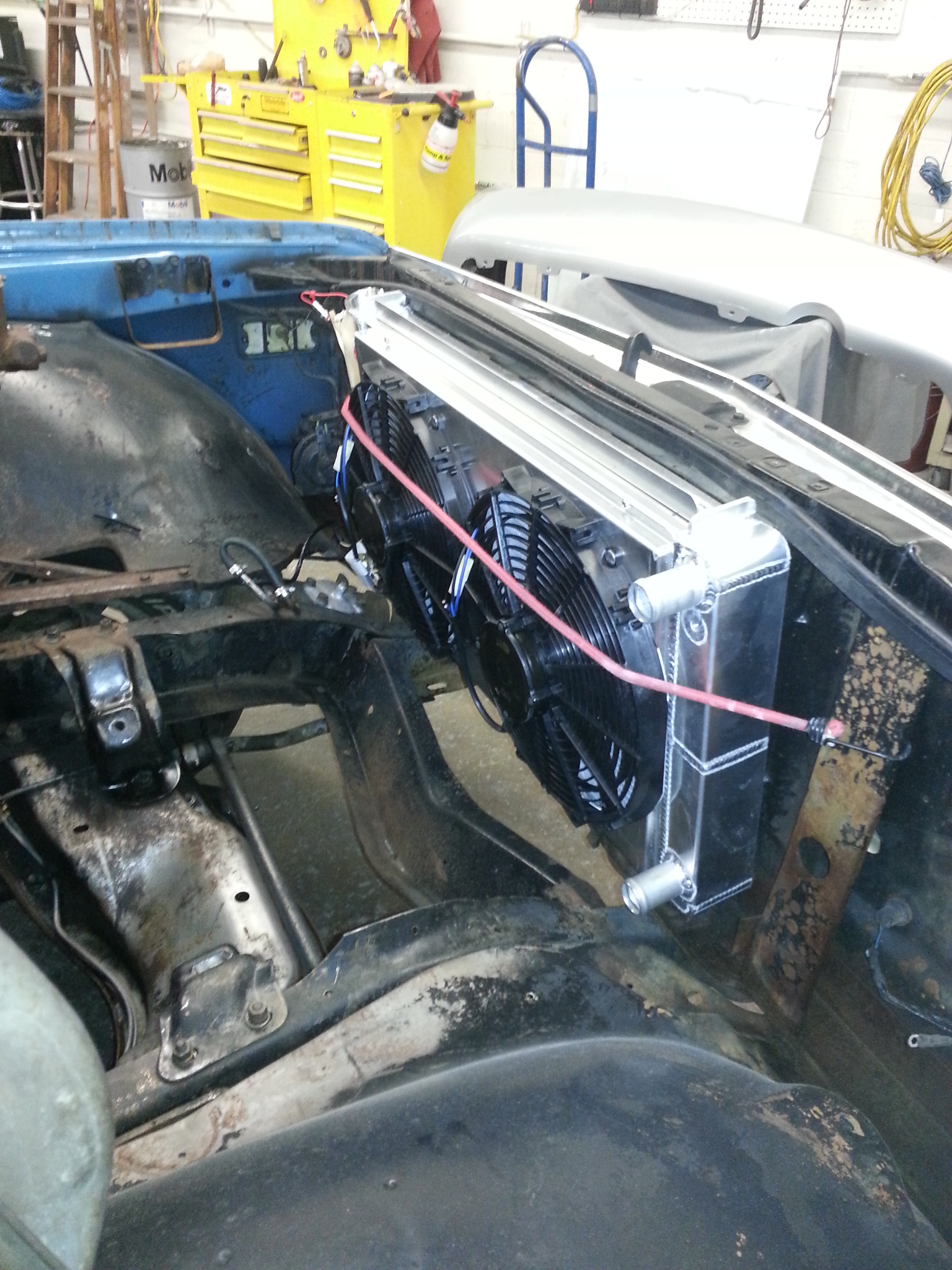

: Cross flow aluminum rad with dual electric fans

: ready for some good old fashined chipping

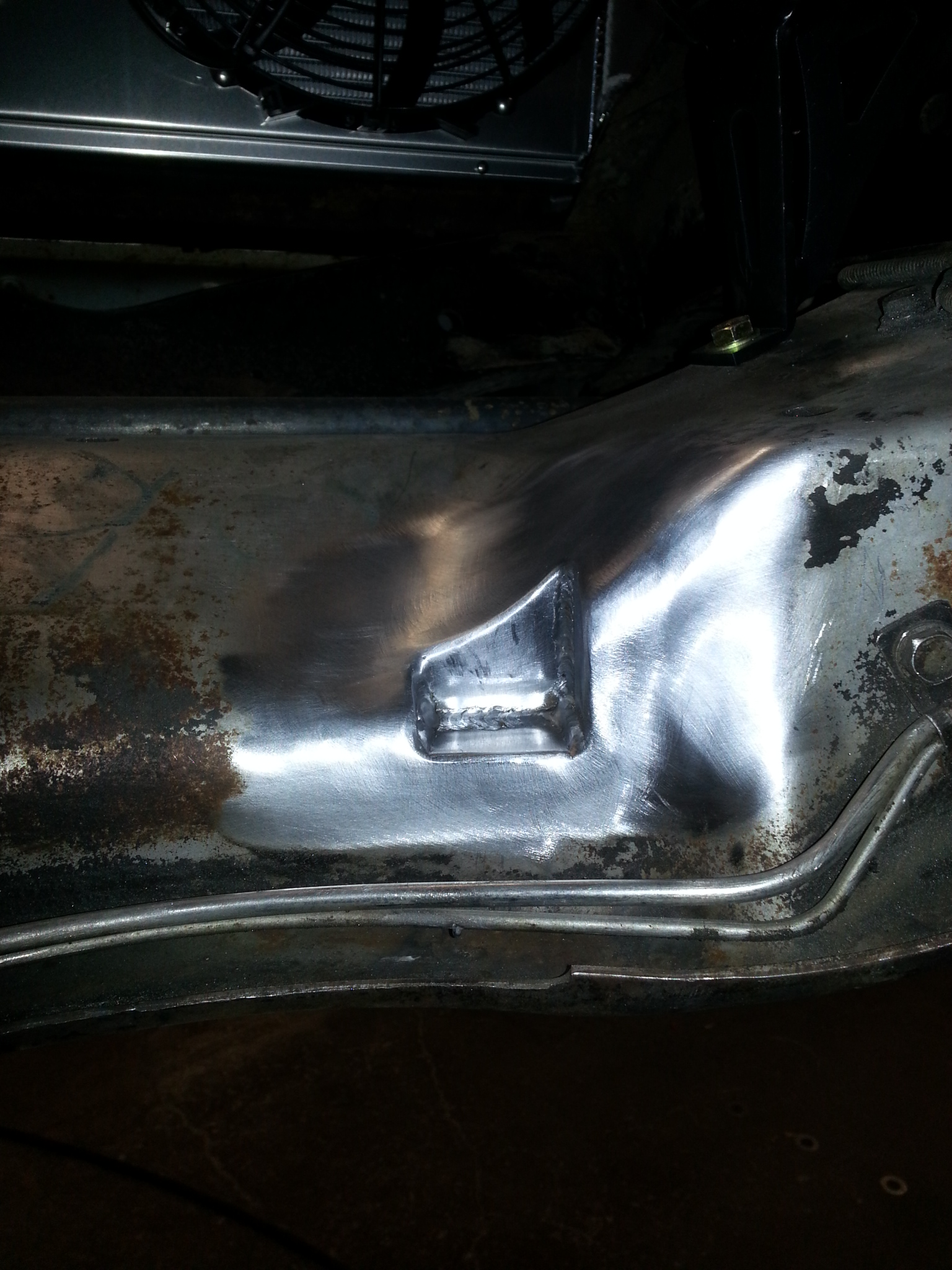

: windowing the crossmember for pan clearance

: ready to modify

: After a good powerwash

: powertools

: All smiles at KMC

: getting a little dirty learning about his truck

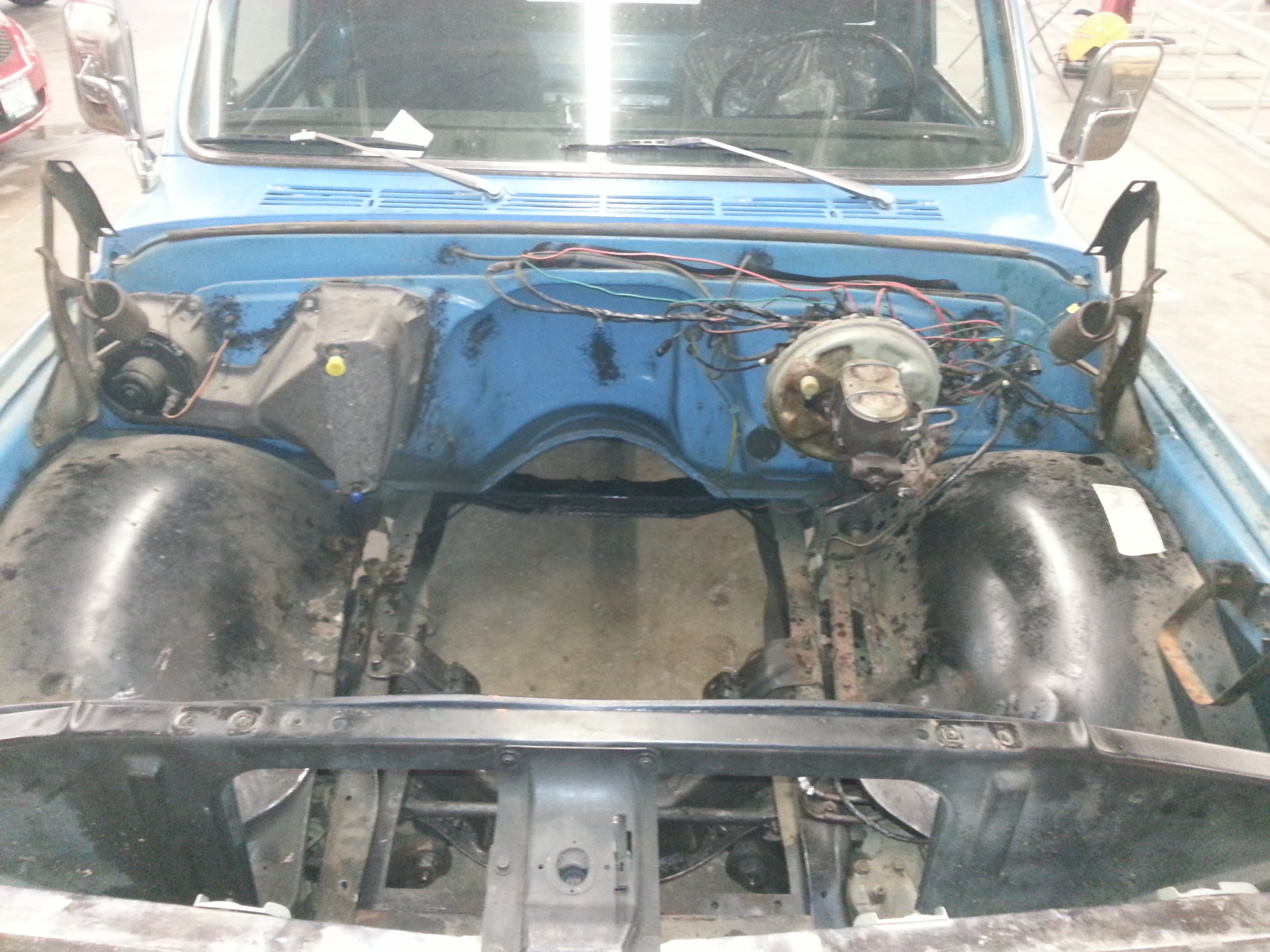

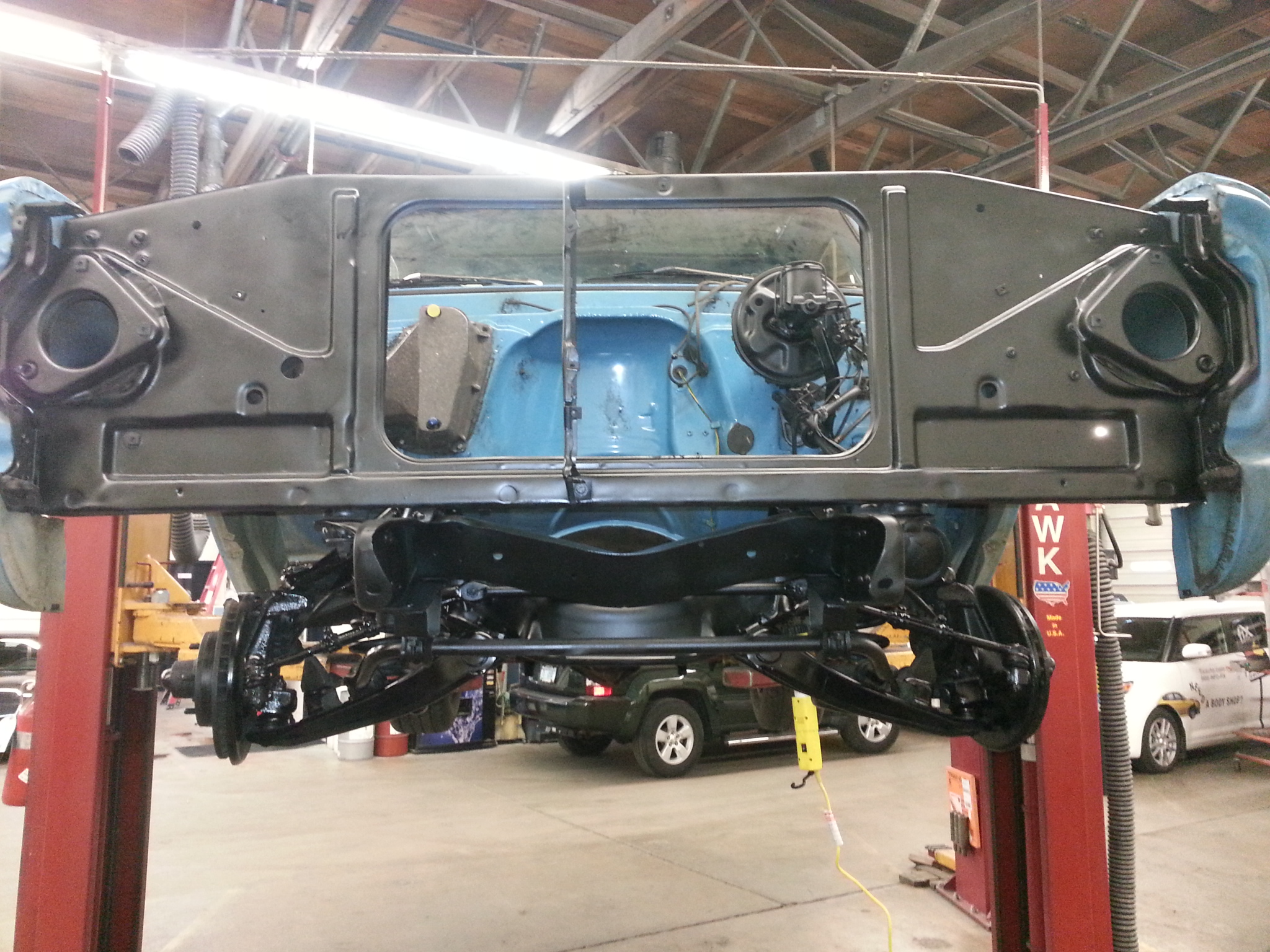

: a blank canvas

: Patrick the owner there for the surgery

: one last look at this hunk of junk

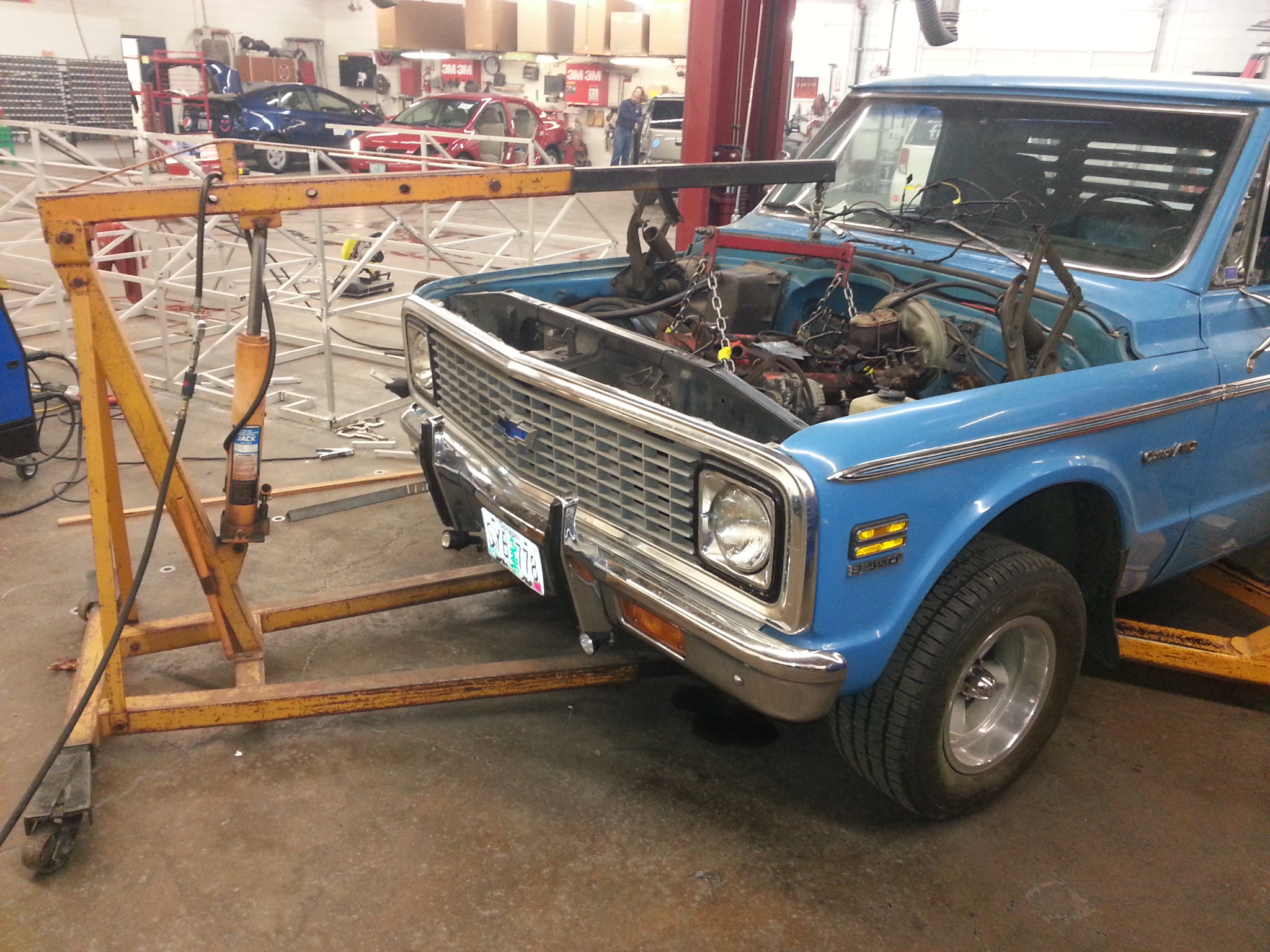

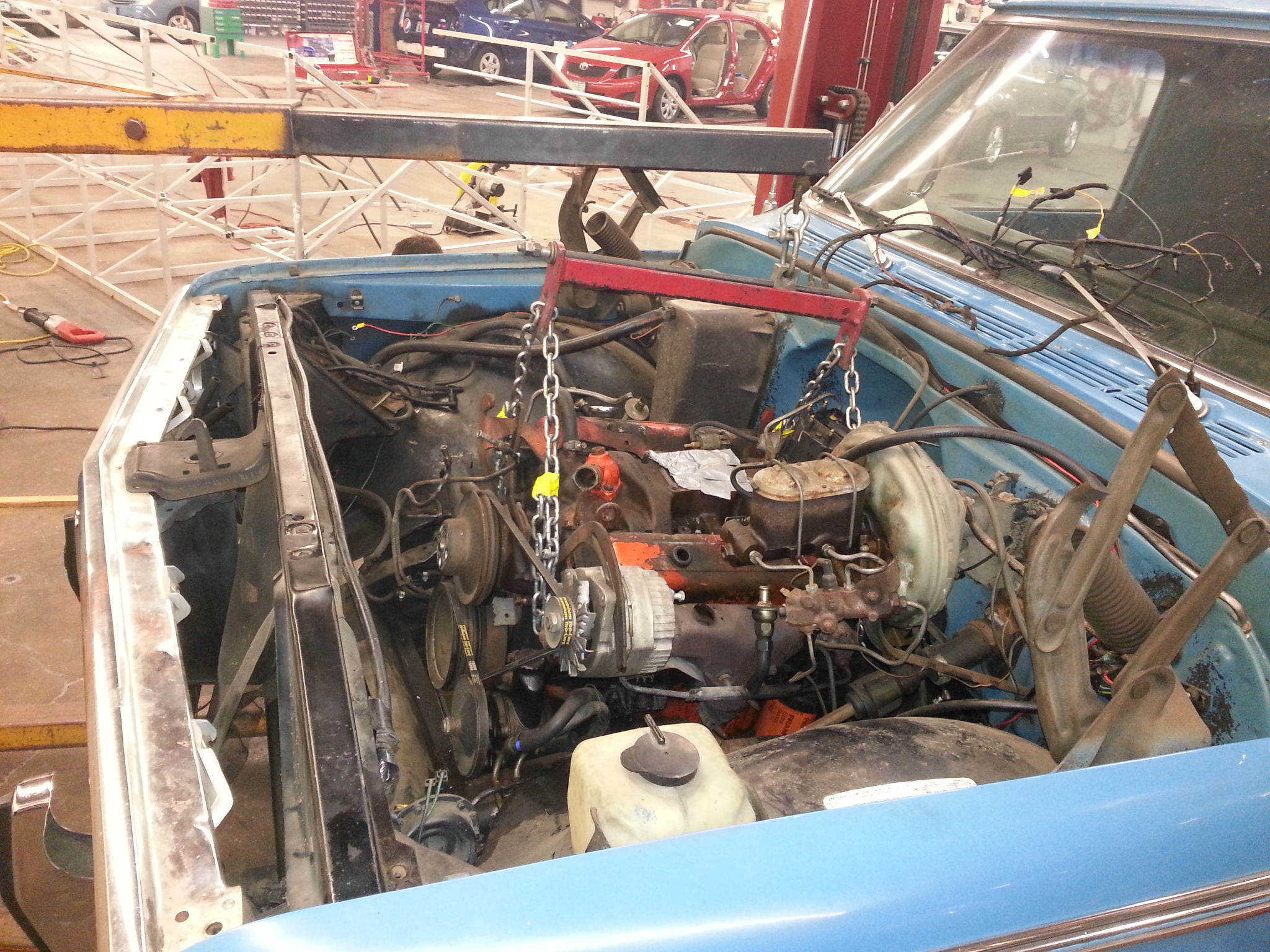

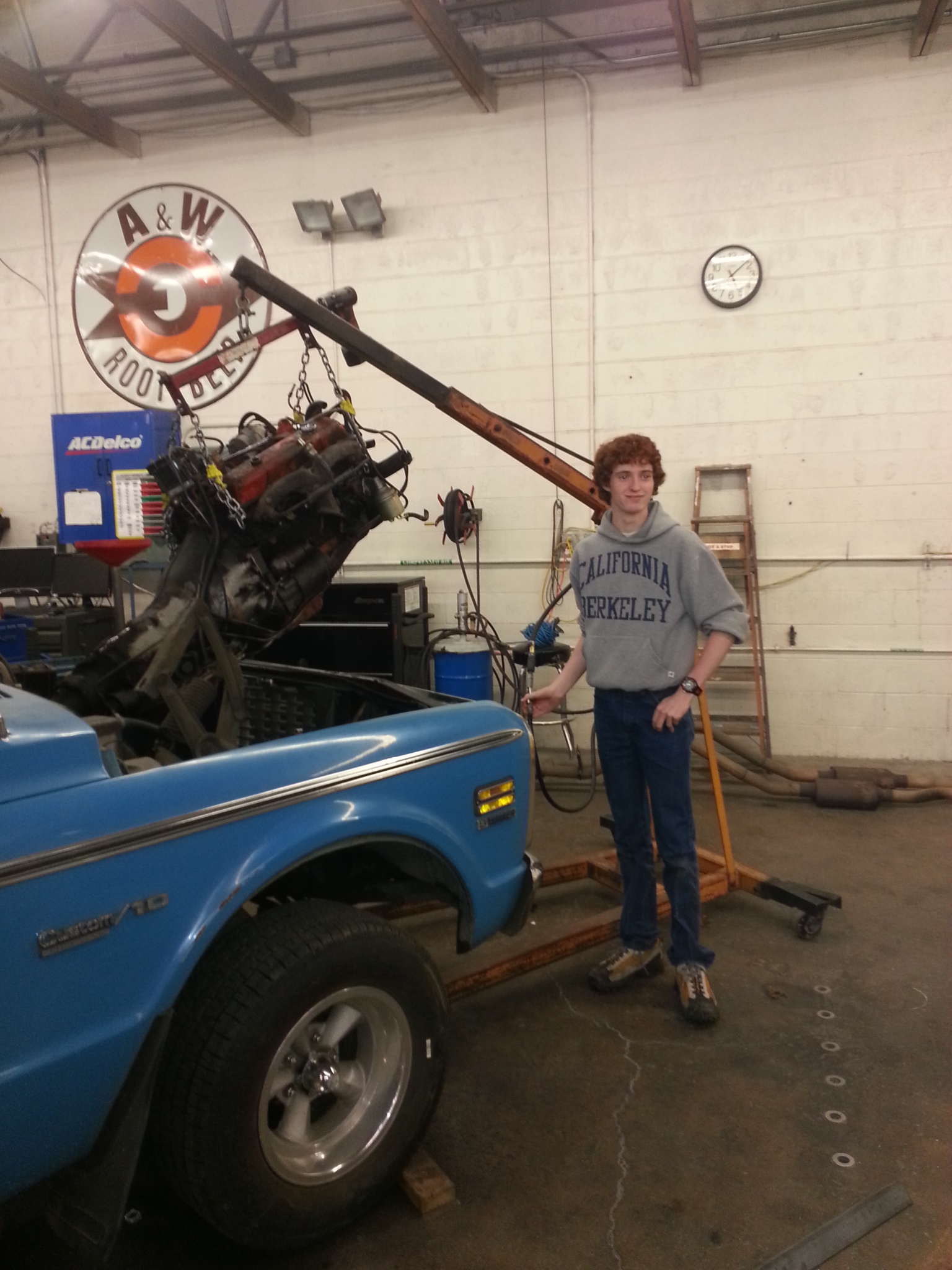

: Almost free

: Out with the old

: not much to look at before

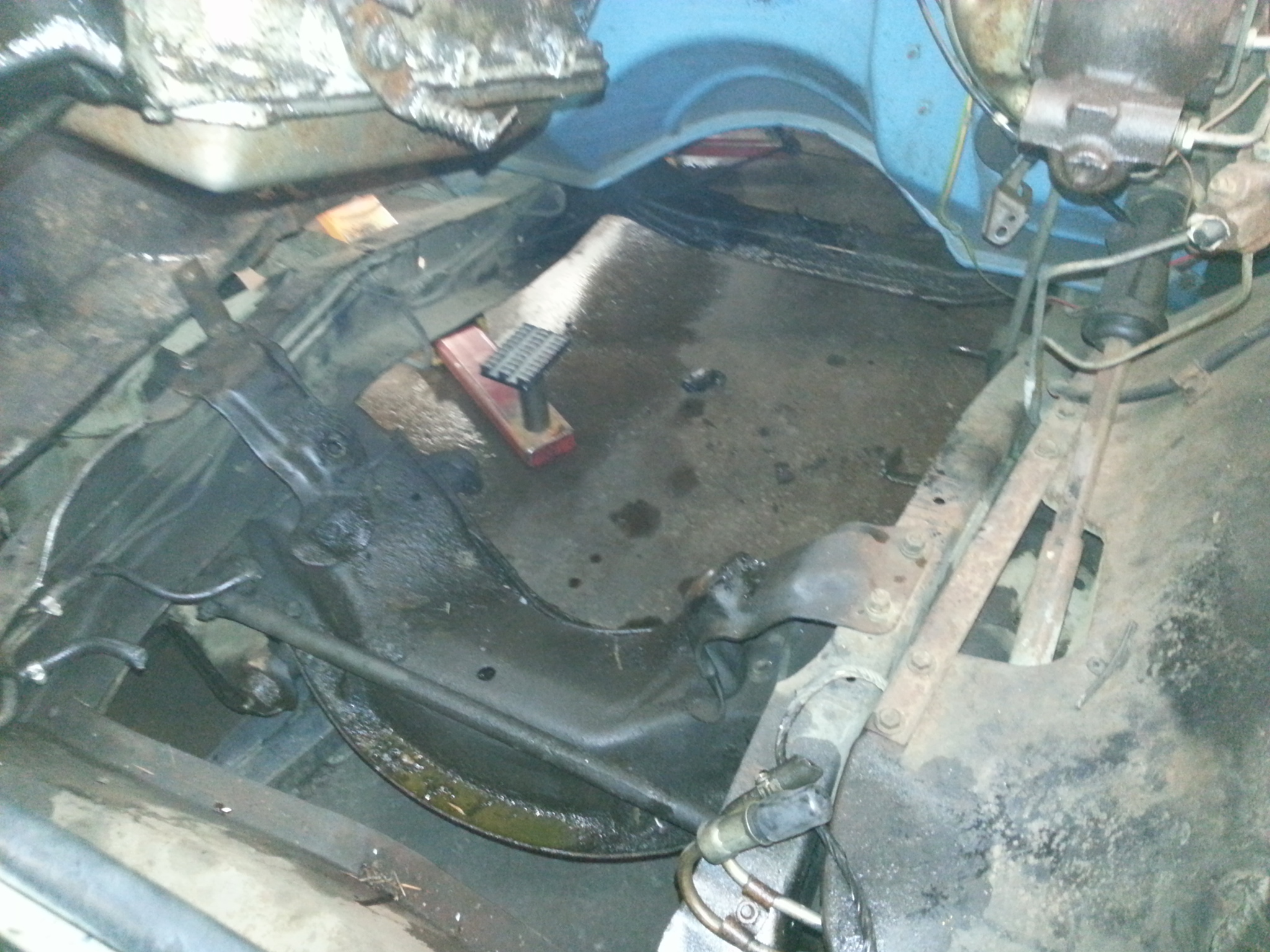

: The nightmare continues

: stock engine

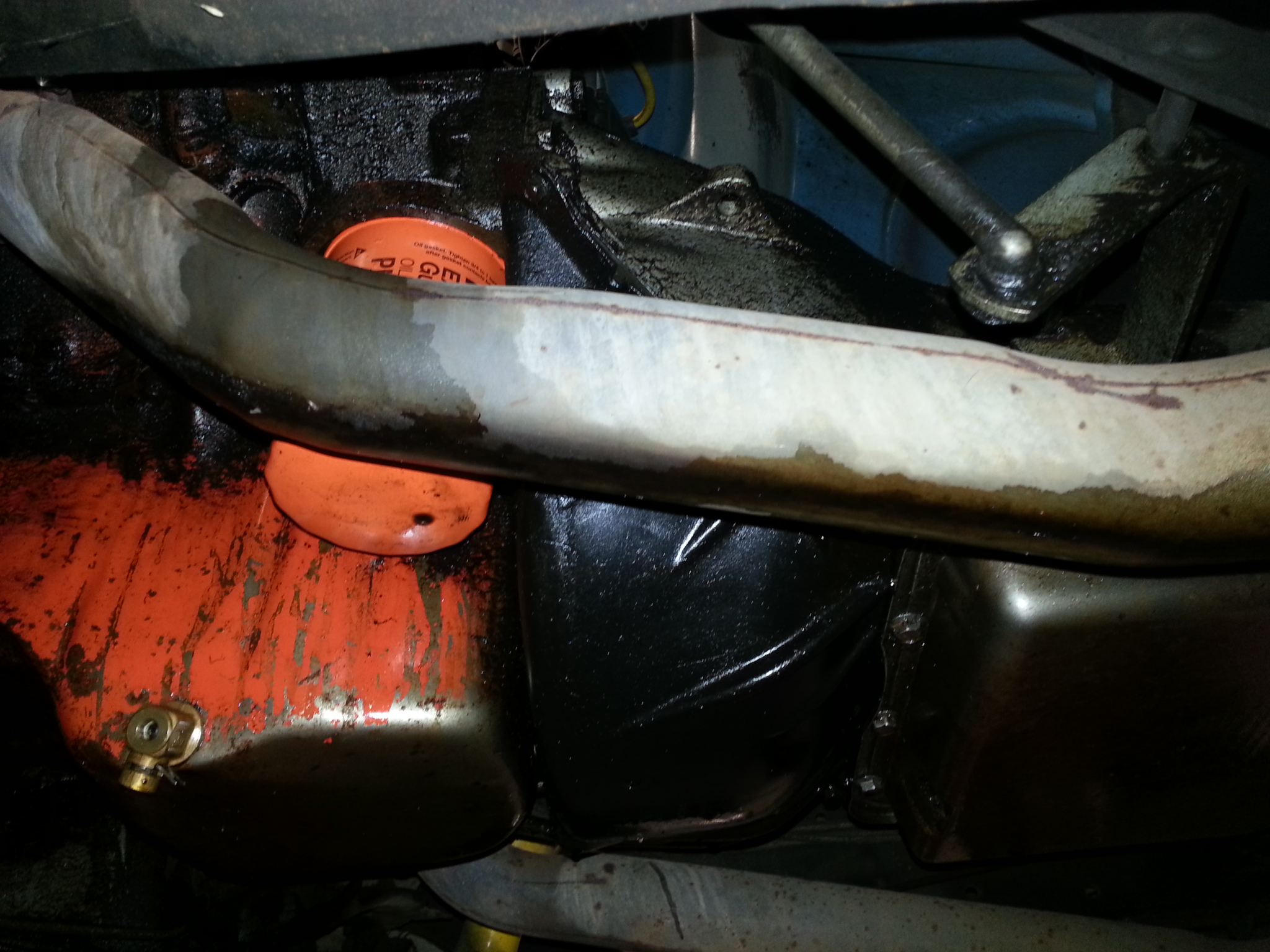

: more grease

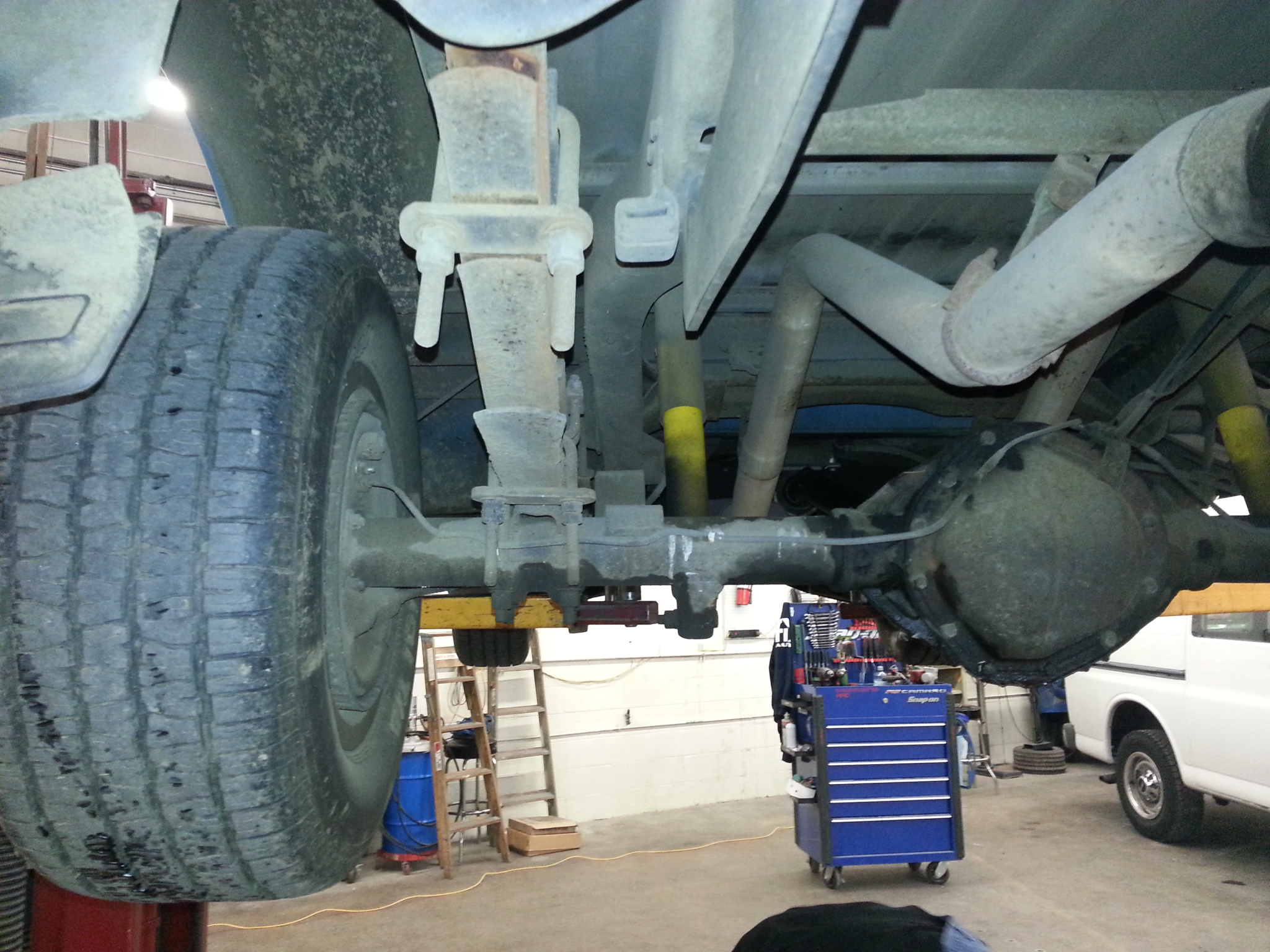

: the stock rear end with helper springs and a lot of corrosion

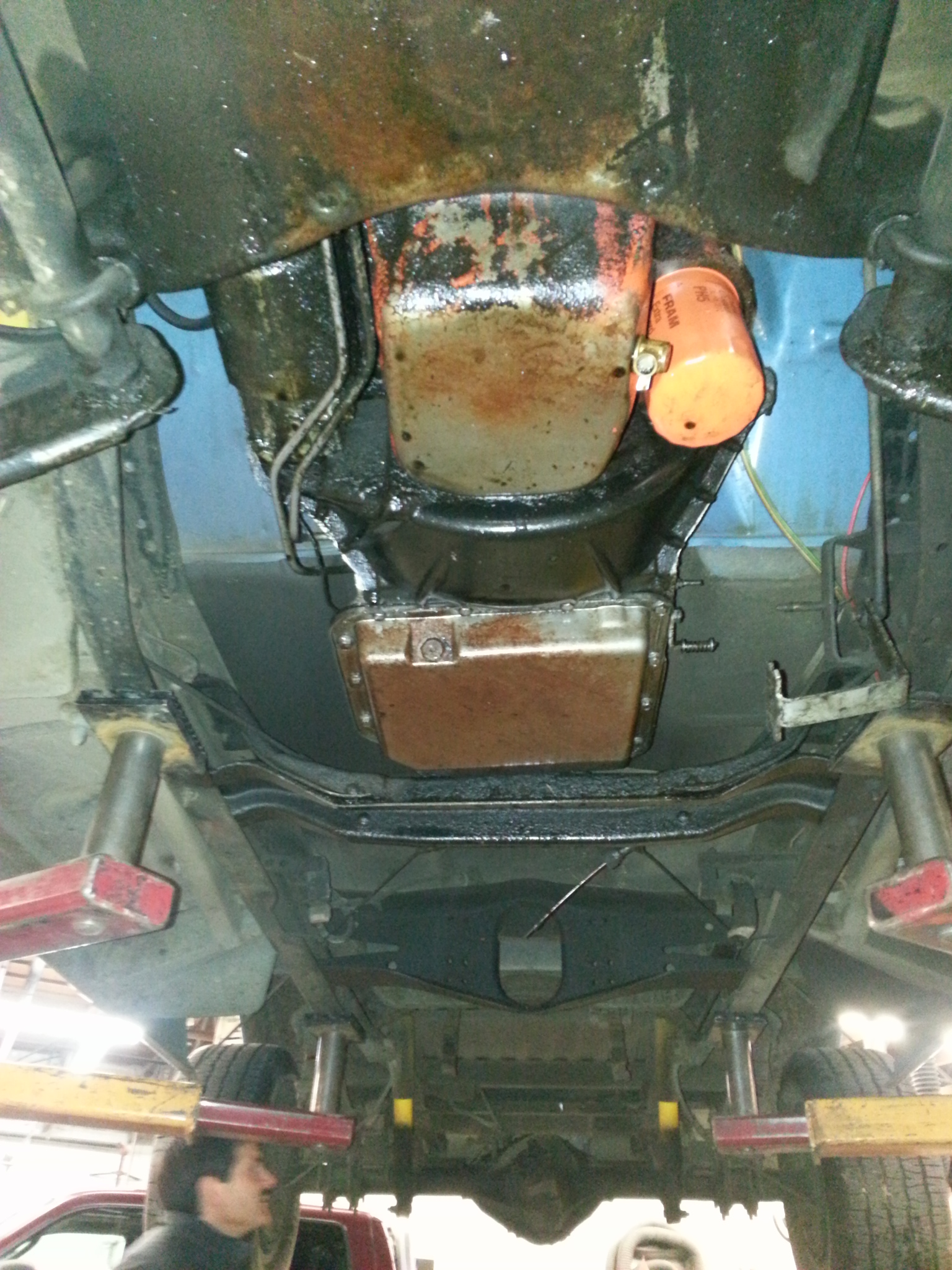

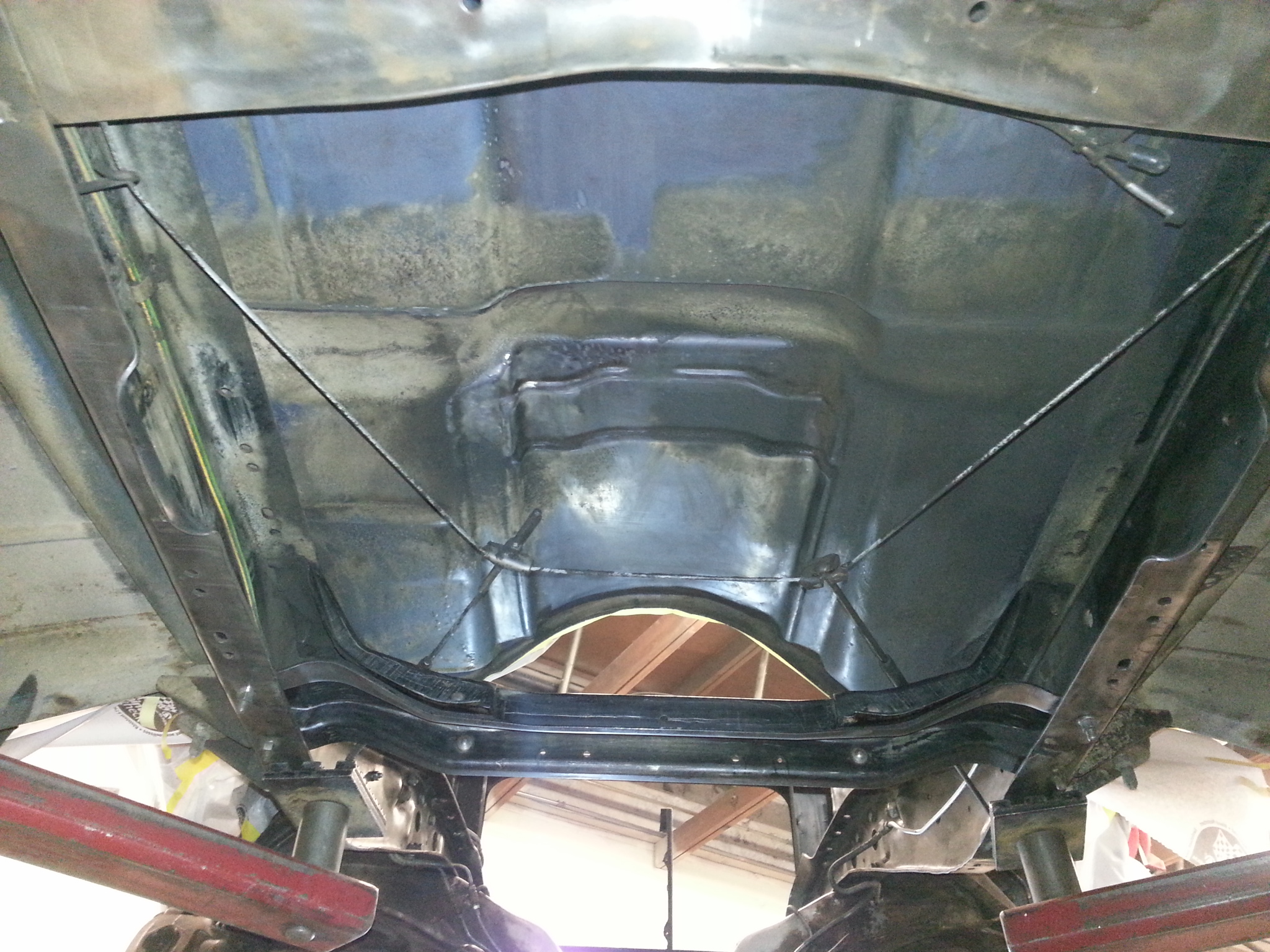

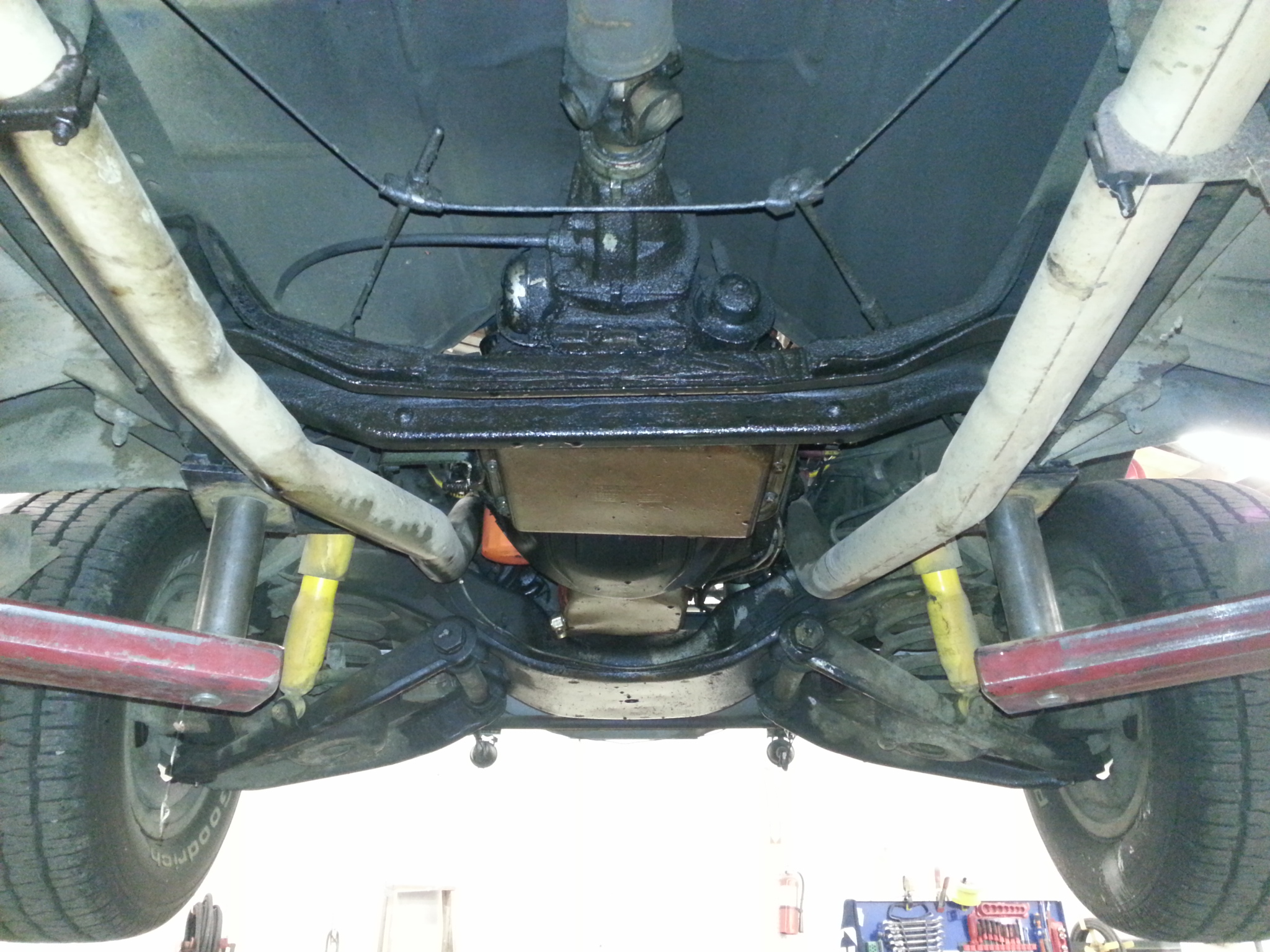

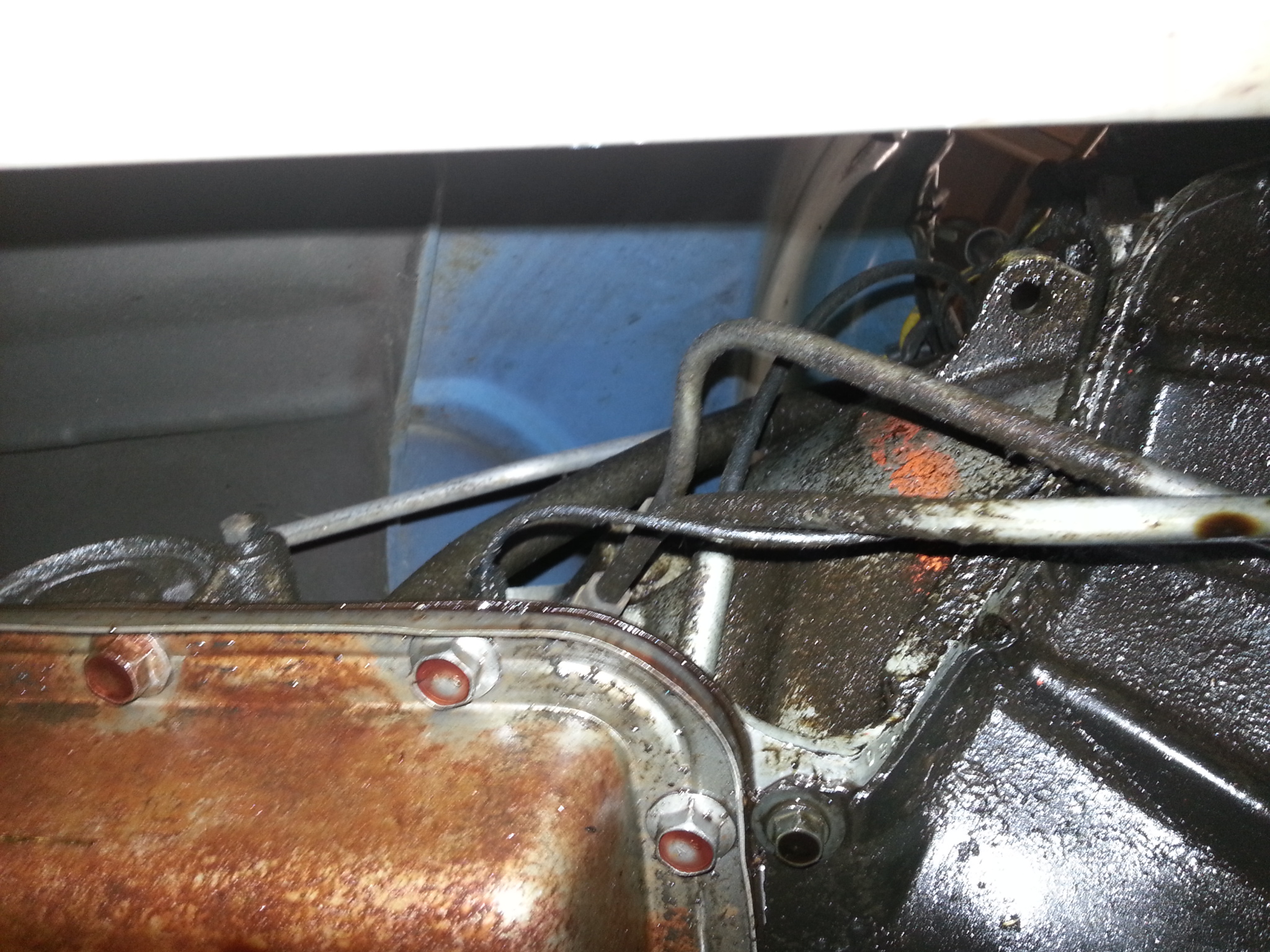

: looking up at the old stuff

: the old exhaust tips

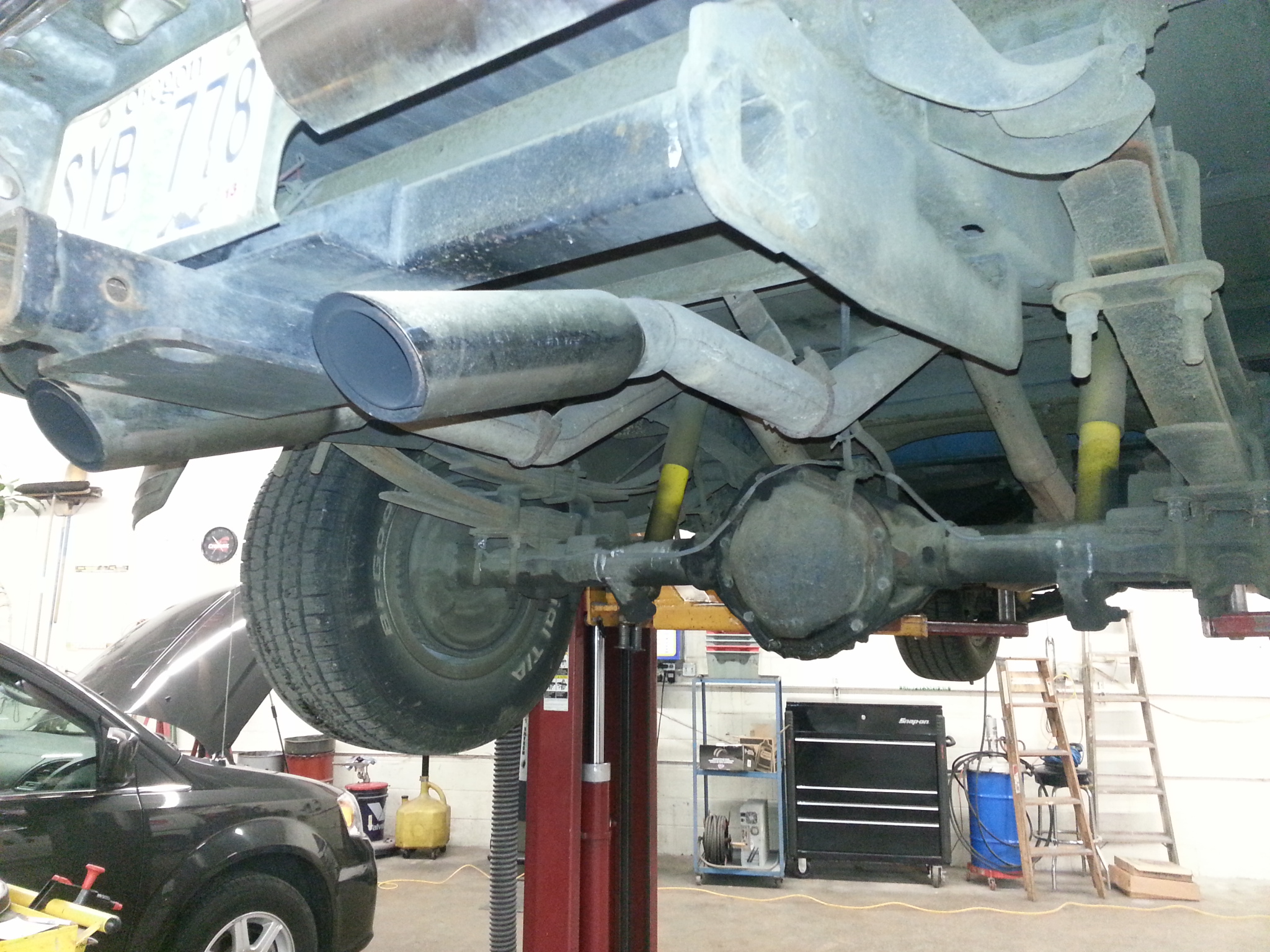

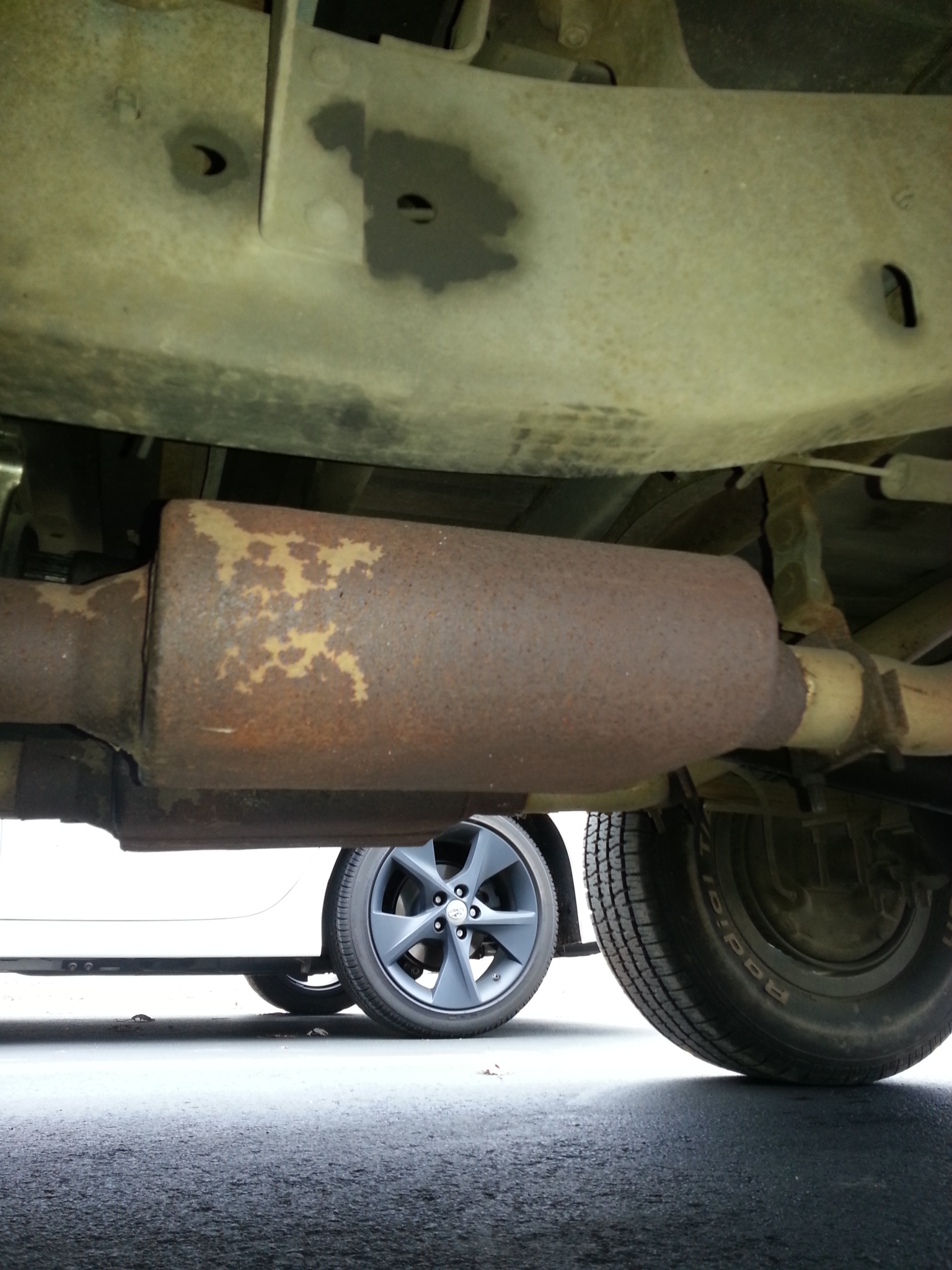

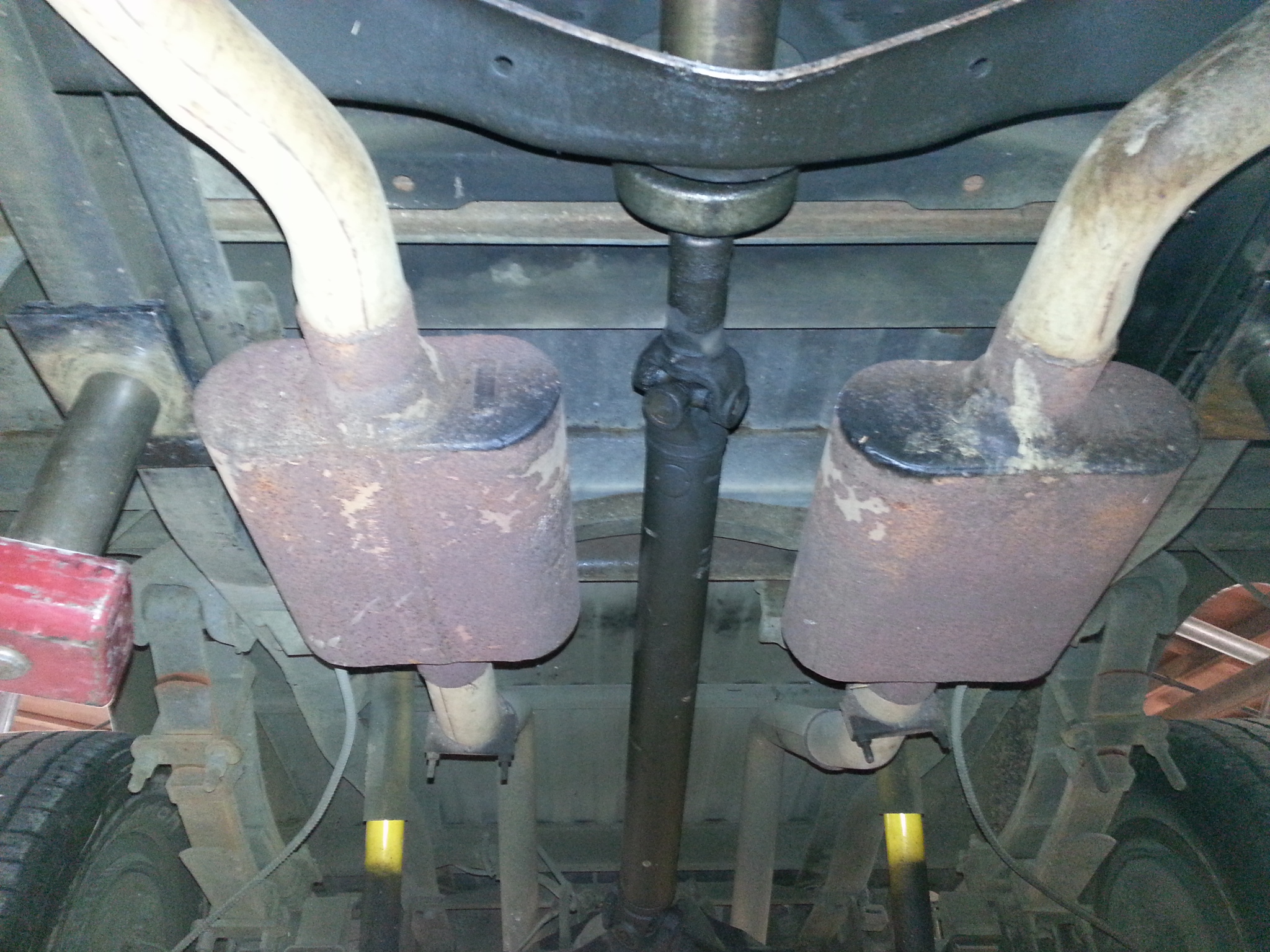

: mufflers as it came to KMC

: old flowmaster exhaust…nice

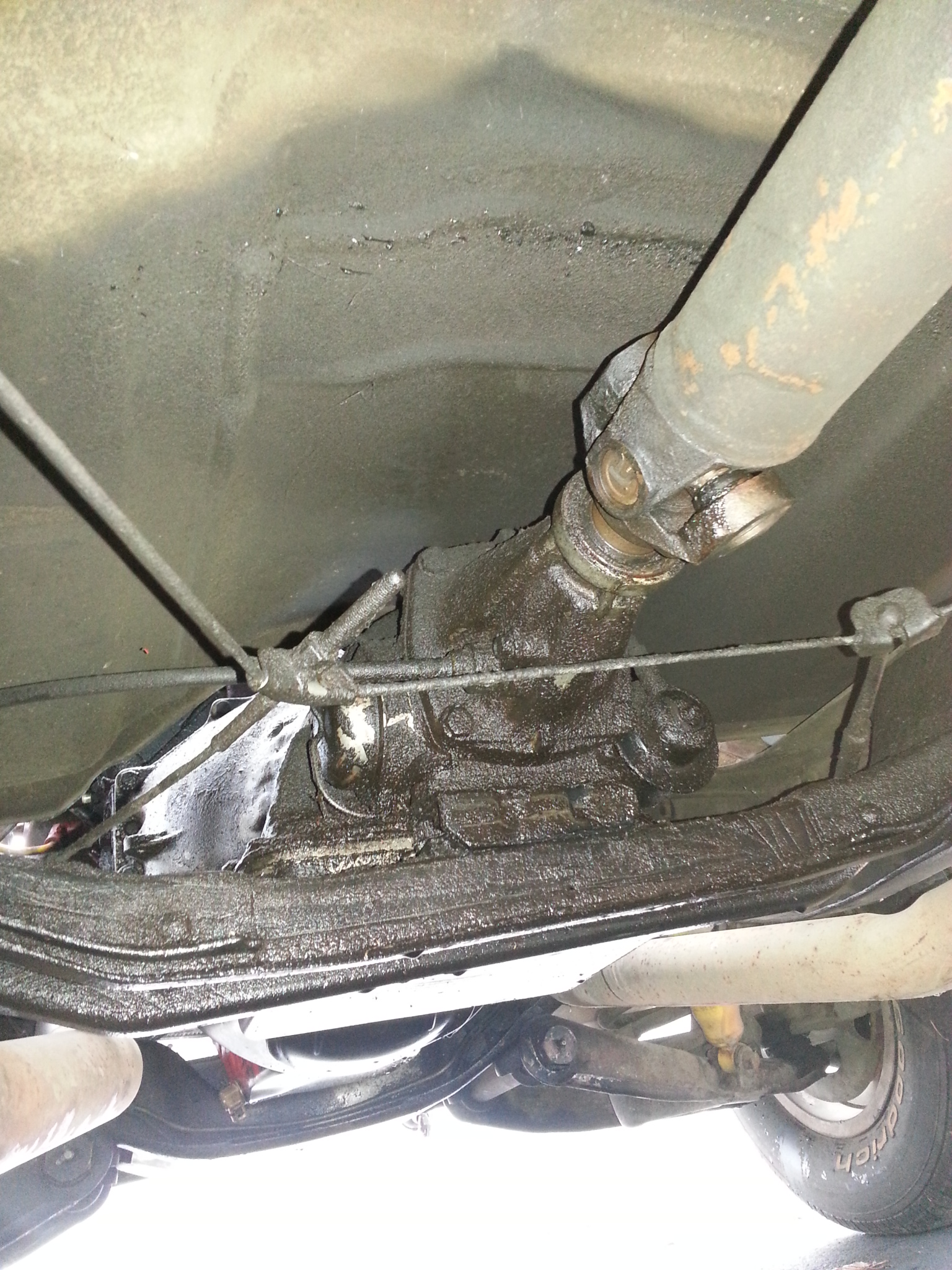

: the stock tranny and driveshaft

: the old drivers side cowl configuration

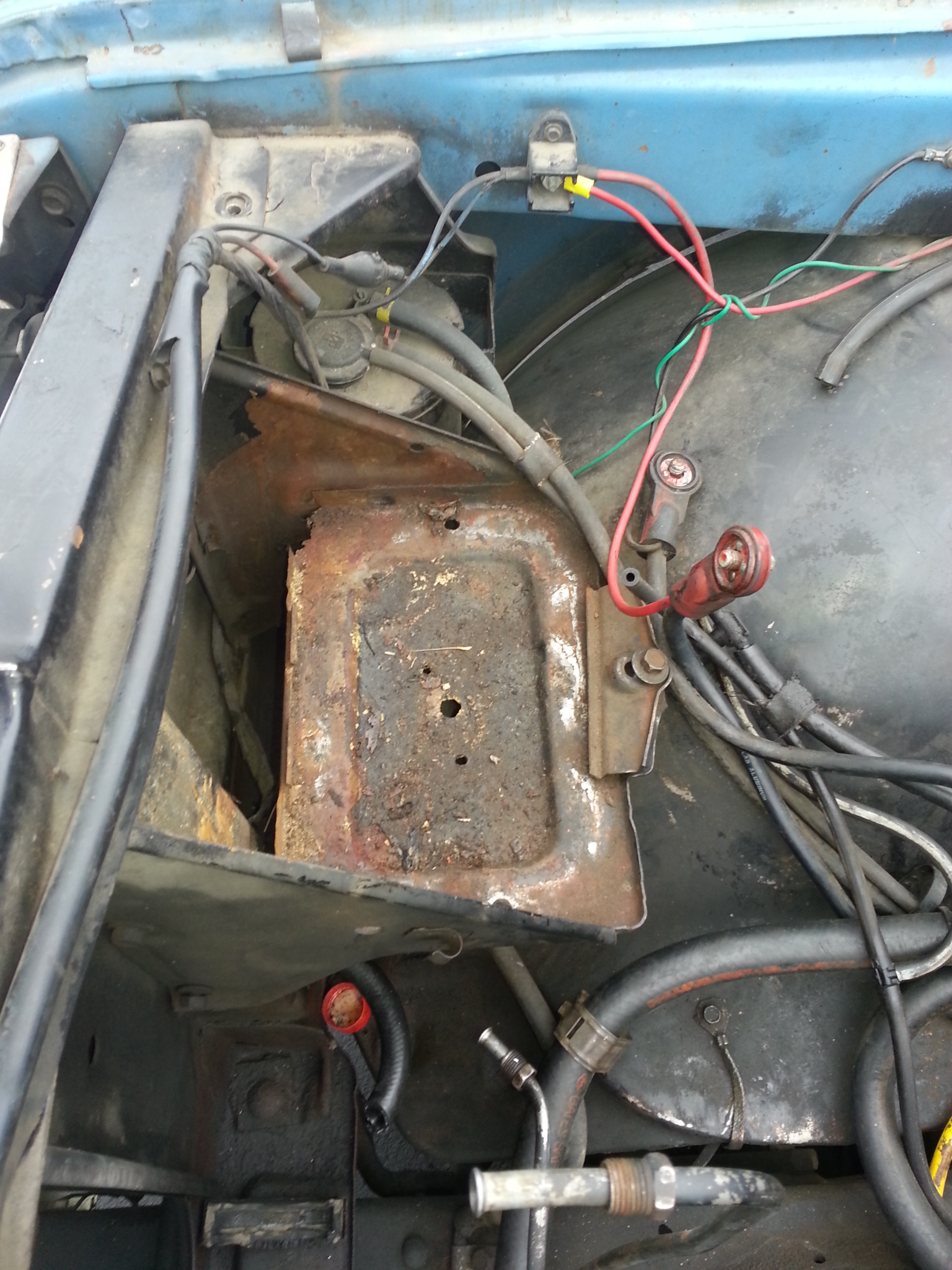

: the written off battery tray

: the old HEI

: dirty core support

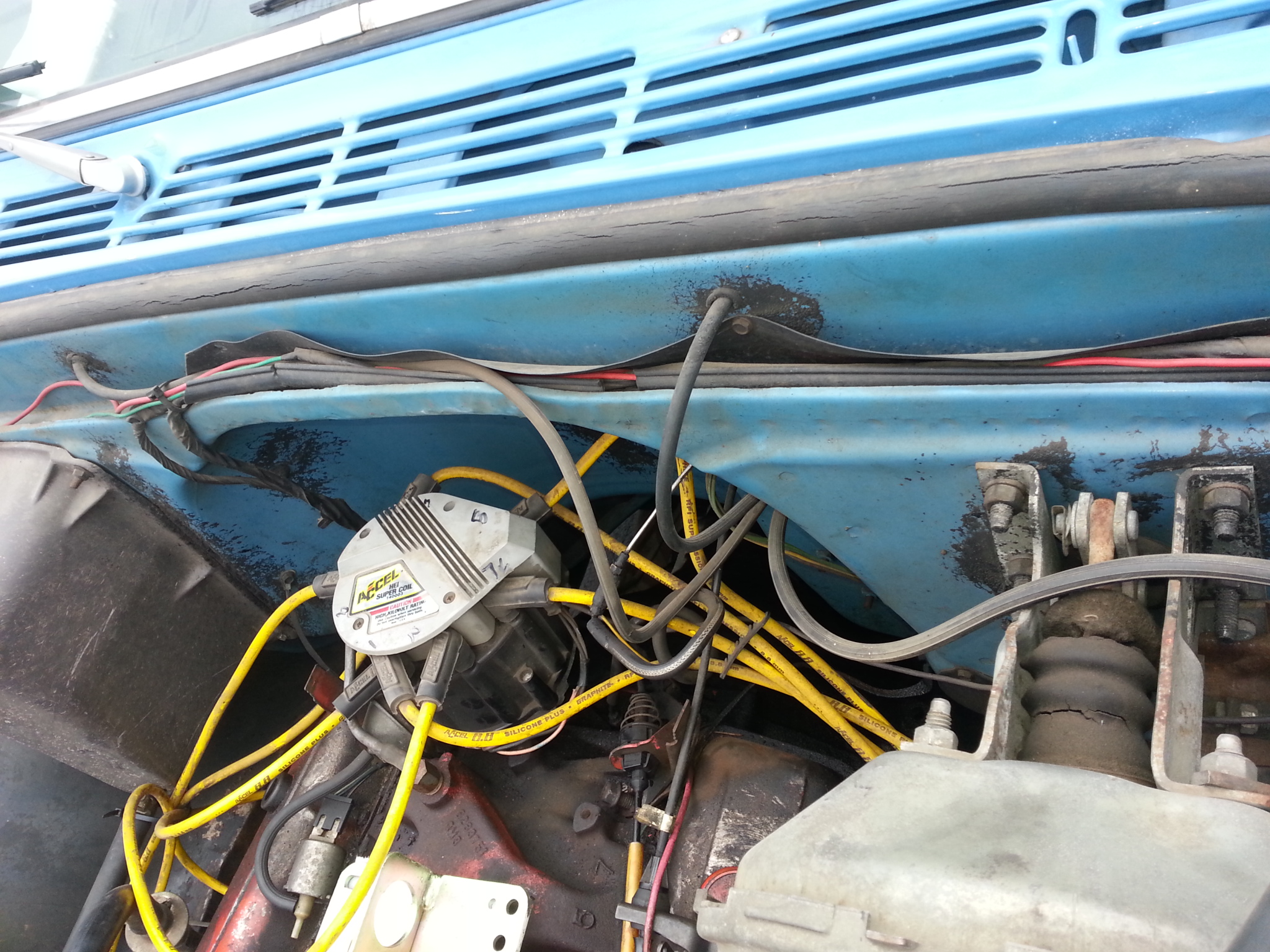

: spagetti wires everywhere

: rust and more rust

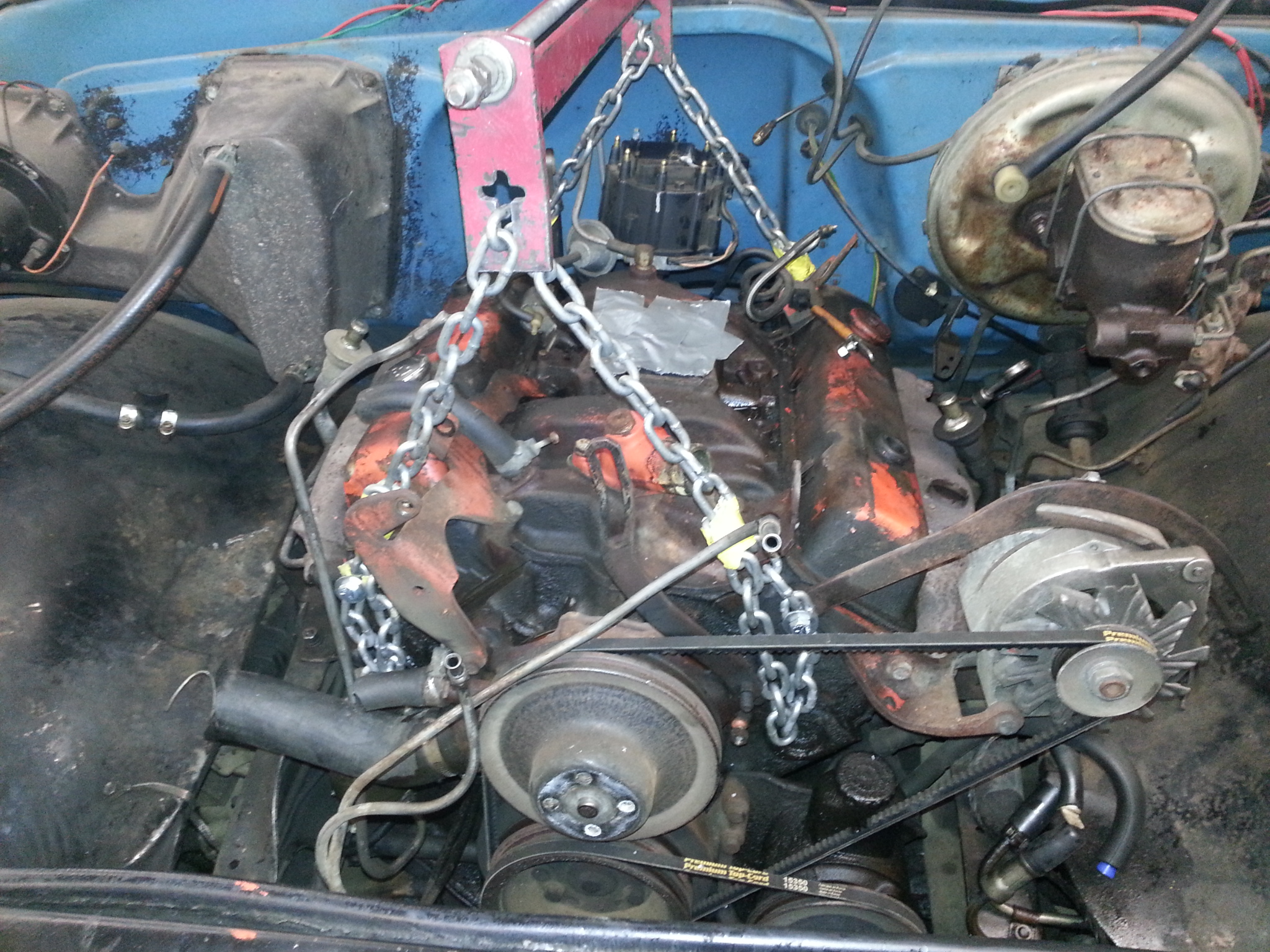

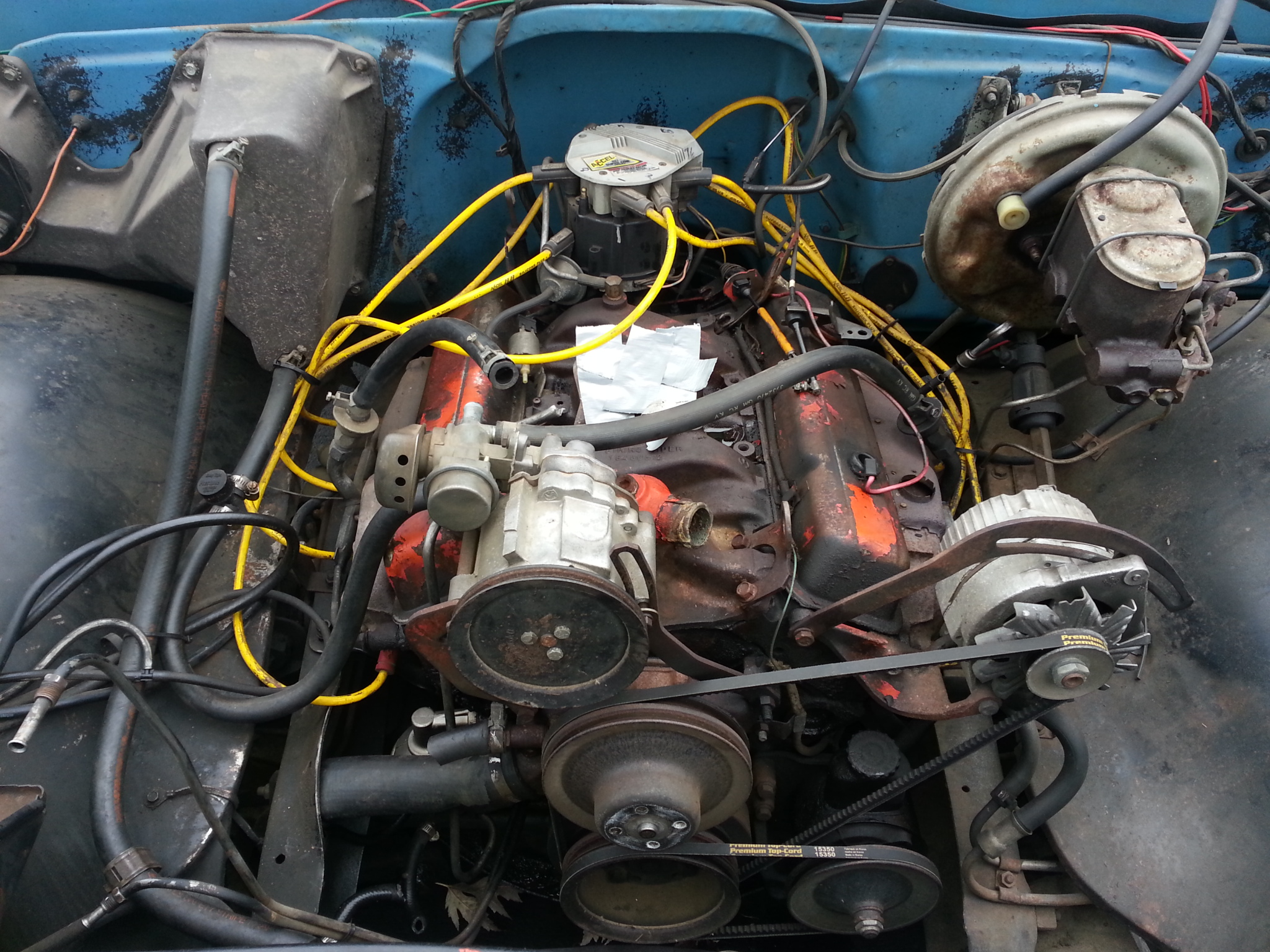

: tired old 350 small block

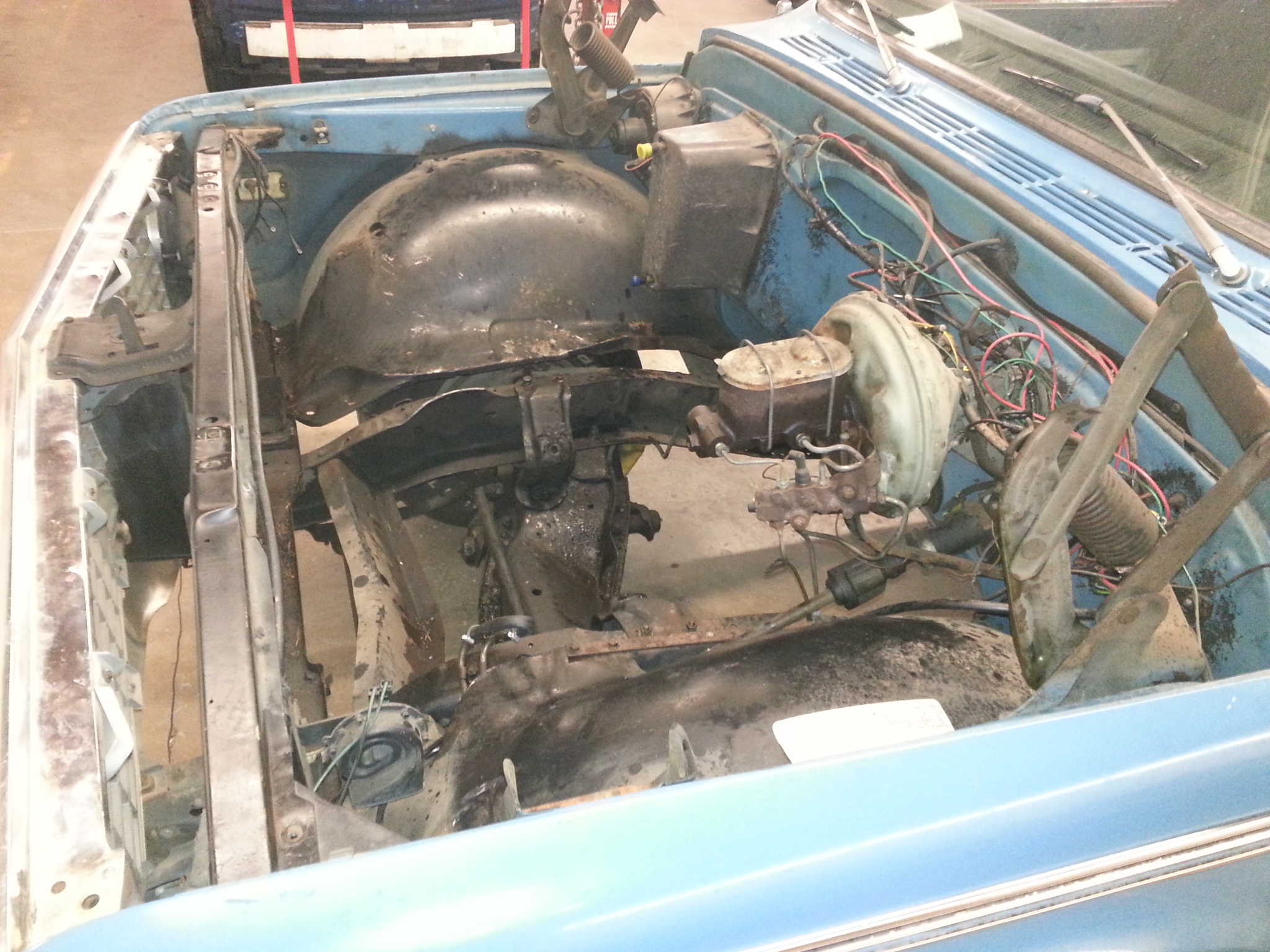

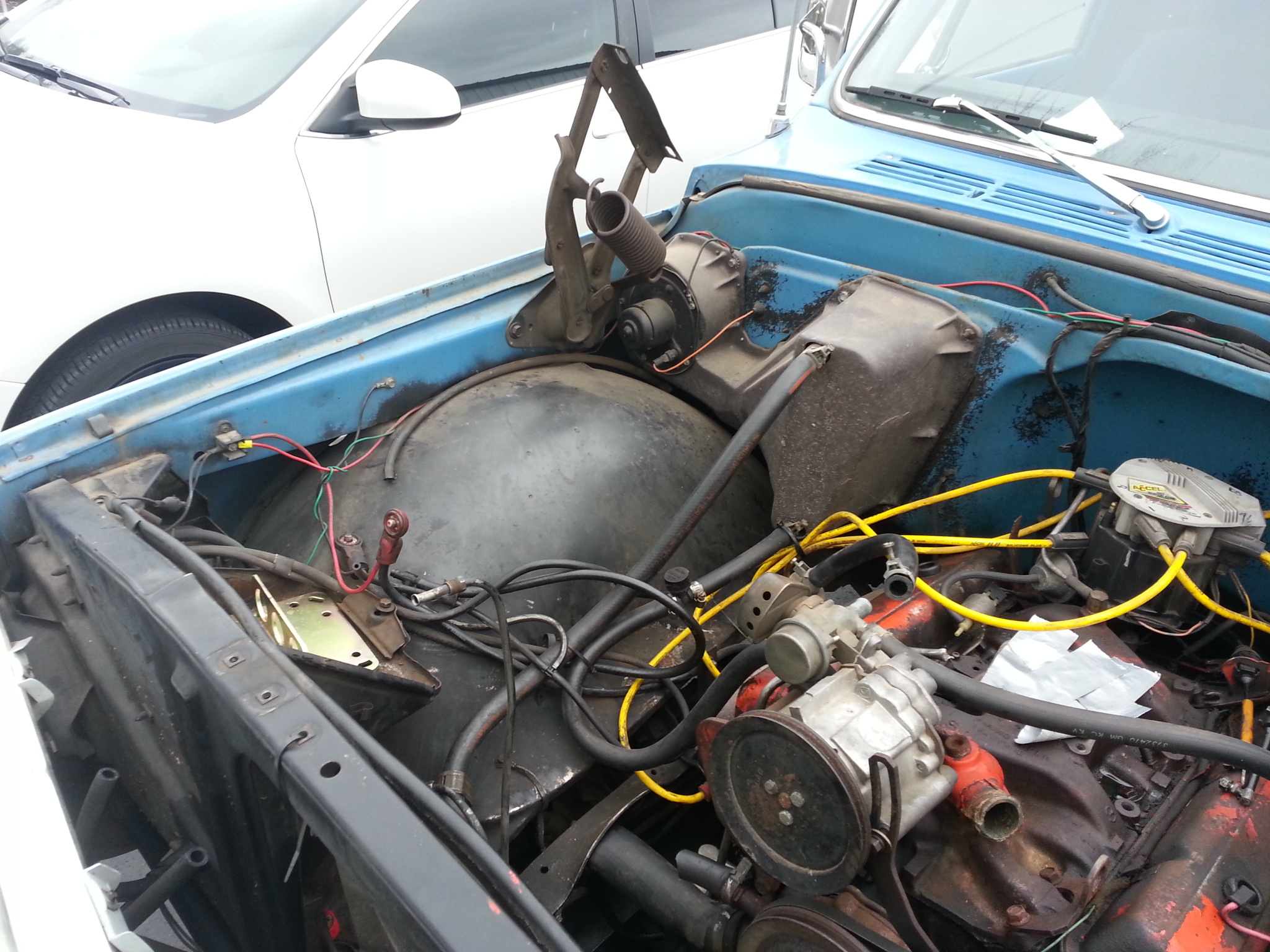

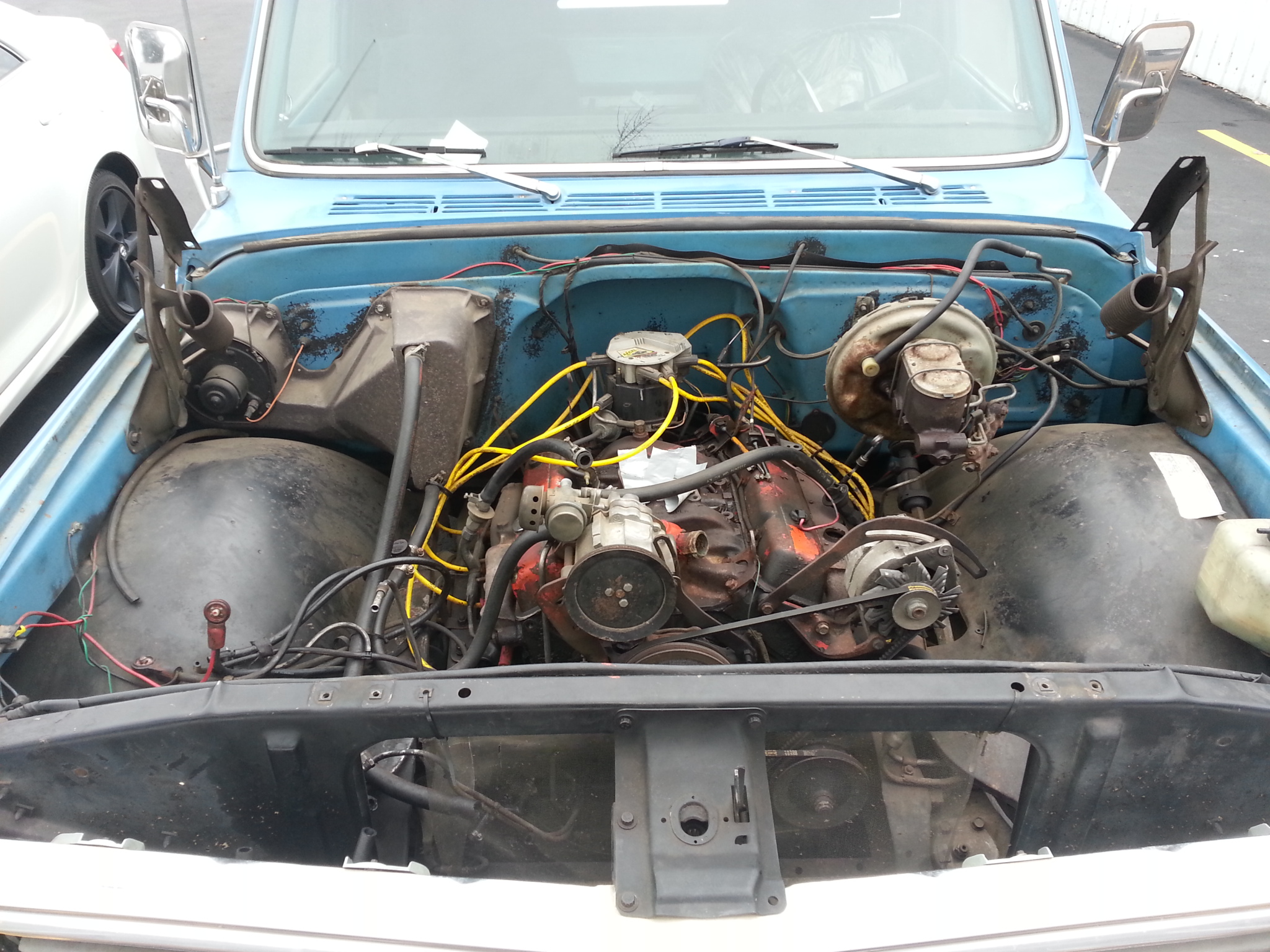

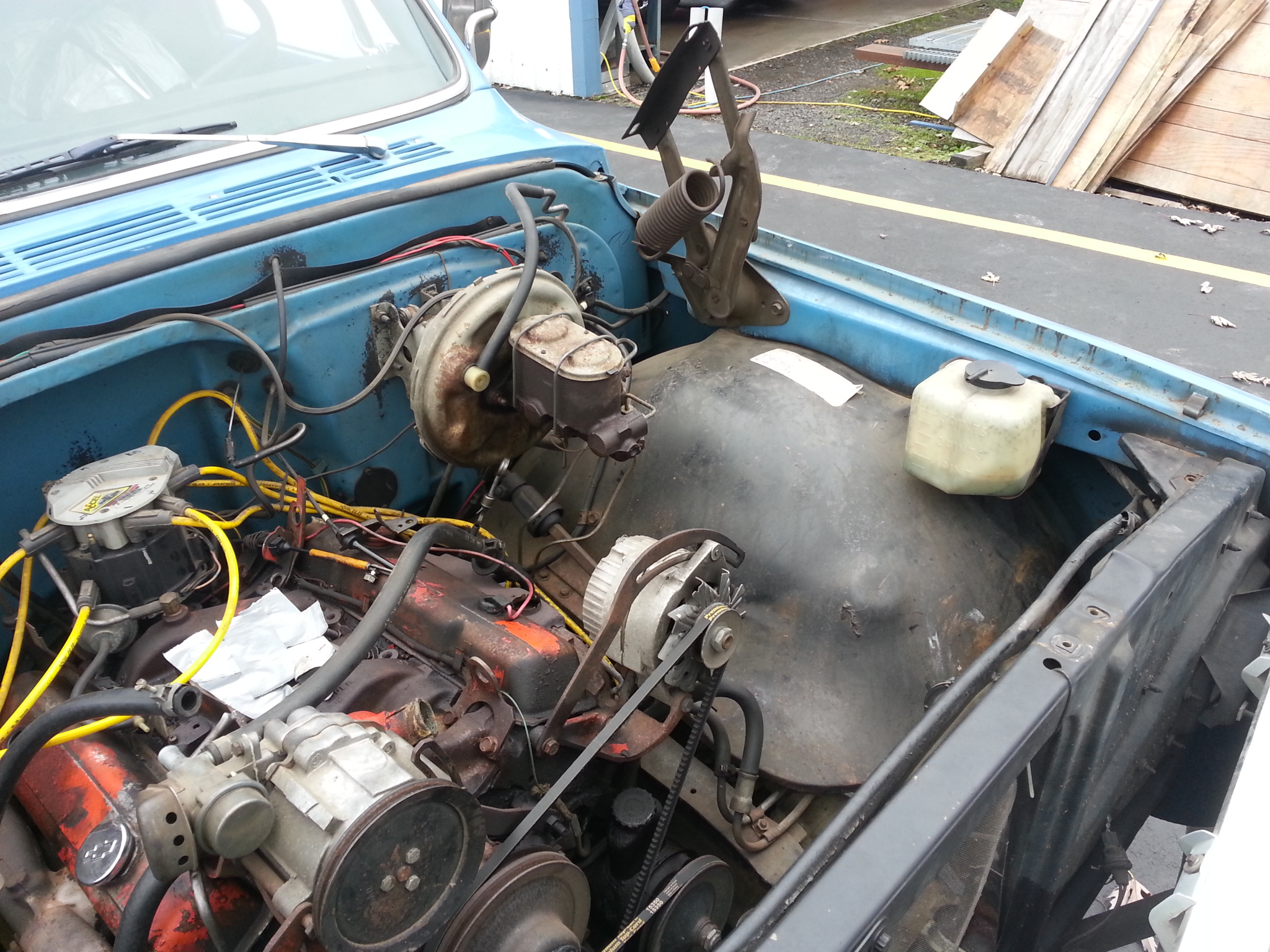

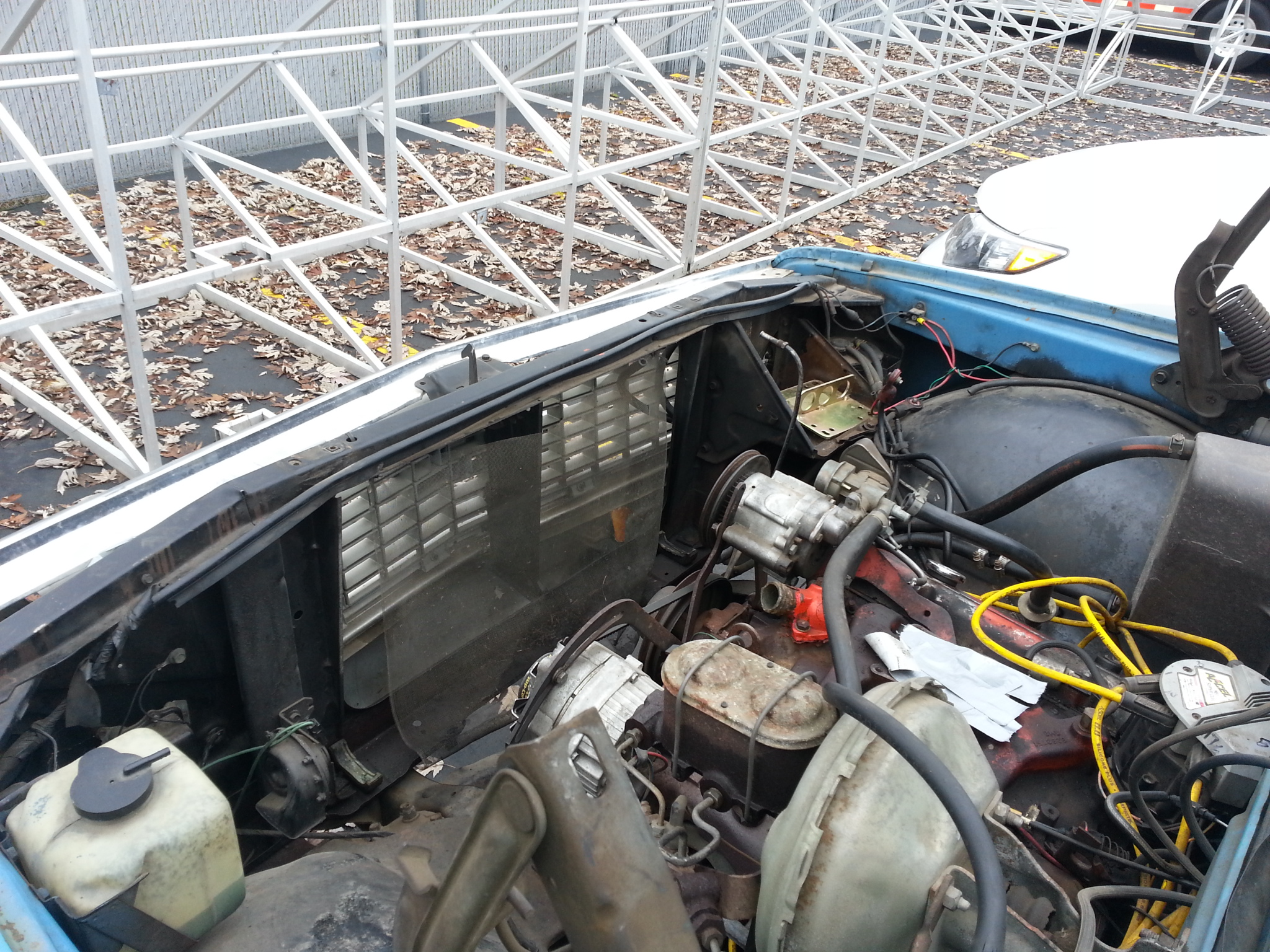

: engine bay before shot

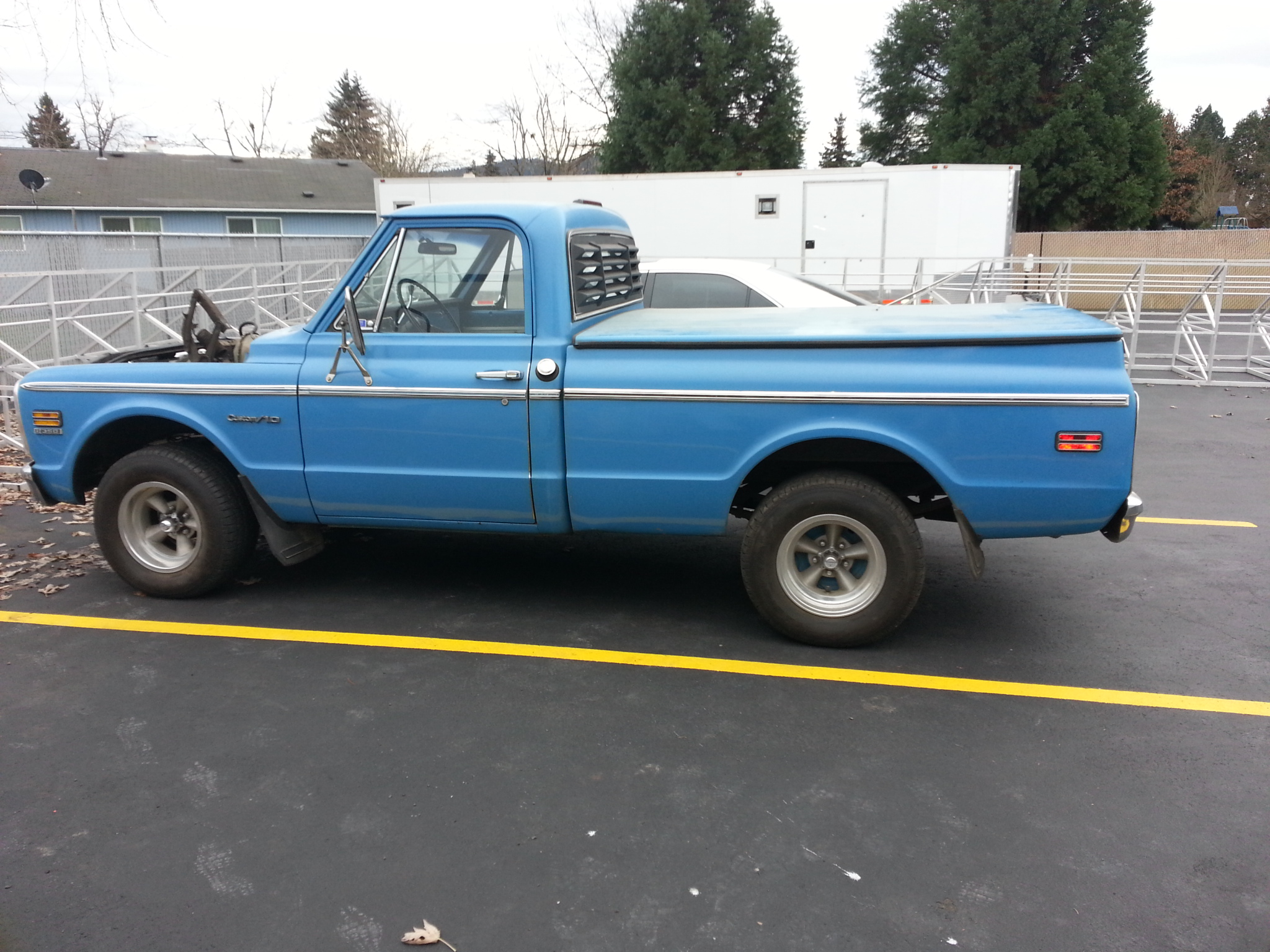

: The project before undergoing the knife
